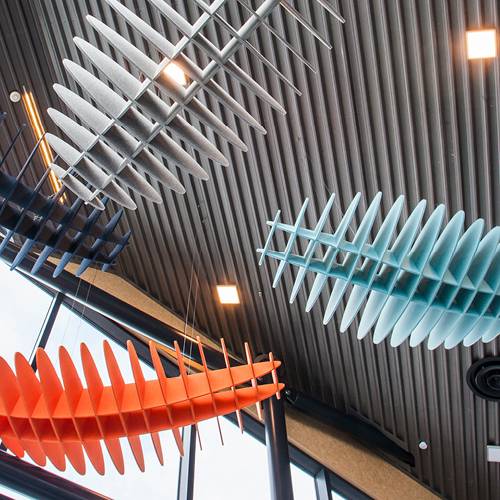

Lattice Baffle Eclipse

Verified by manufacturer 3 months ago

Autex Acoustics Ltd

Suspended acoustic sculptures

Jump to:
BOS
+44 (0)1422 418 899 Website

Application

  • Can be suspended or direct fixed to ceilings
  • Commercial/office spaces
  • Education

Description

A collection of acoustic baffles that are suspended or direct fixed to ceiling space. A simple out of the box solution acoustic solution, Lattice easily creates a point of interest in any space.


Features and benefits:

  • Delivers excellent acoustic performance
  • Gridded configuration designed to absorb echo and reverberation
  • Original design, trusted acoustic solution
  • Easy to install
  • Adjust suspension height to target different acoustic frequencies
  • Available in three standard designs and a sophisticated colour palette
  • Solid colour and smooth finish
  • No capping required
  • Customisable
  • Carbon neutral
  • Made locally

General information

Color

Beige

Black

Blue

Cream

Gold

Show more

Finish

Smooth

Material

Polyester fibre (PET)

Guidance for specification option:

Polyester fibre (PET).

Shape

Other

Manufacturer guidance

Eclipse.

Length

Bespoke

Width

Bespoke

Warranty description

Ten year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/10 Unit/ modular suspended ceilings

Specification data - Sound attenuator infill units

Form

Baffle.

Rigidity

Semi rigid.

Application

Ceiling mounting.

Material

Polyester fibre (PET).

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Guidance for specification option:

2.10 metric Sabins per unit (Direct fix), 2.05 metric Sabins per unit (Suspended 200 mm)

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s2,d2.

VOC emissions

0.092 mg/m³

Guidance for specification option:

CDPH Standard Method v1.2-2017: after 14 days, office room scenario

Dimensions

-

Size (length x width)

1197 x 2346 mm.

Thickness (overall)

337 mm.

Profile

Curved.

Edges

Square.

Surface pattern

Solid.

Finish

Smooth.

Colour

Acros.

Bosco.

Empire.

Falling water.

Flatiron.

Ironbank.

Opera.

Petronas.

Pinnacle.

Savoye.

Senado.

Zenith.

Acoustic performance

1.00.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester fibre (PET)

Guidance for specification option:

Polyester fibre (PET).

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.89 kg CO₂ eq/kg

Self declared

Recyclability

yes

Guidance for specification option:

Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS).

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

Minimum 60% post-consumer recycled PET material.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3

Literature

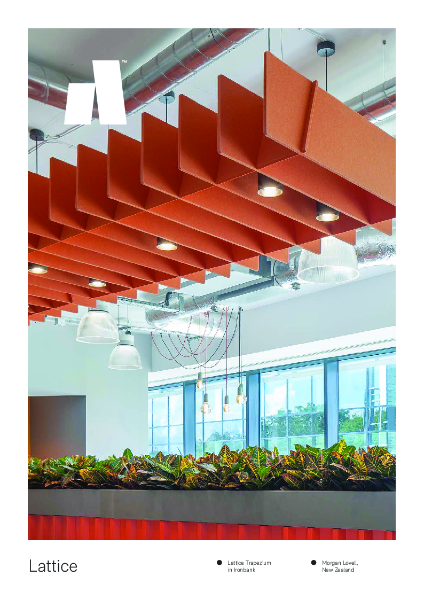

Lattice Lookbook

Lattice Lookbook

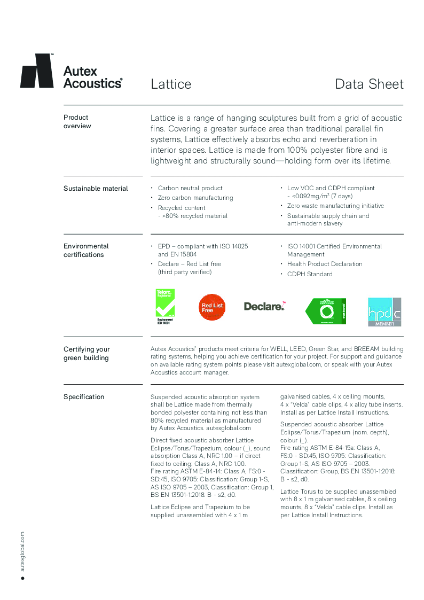

Lattice Datasheet
