Latchways - Horizontal Traditional Fix

Name: Latchways - Horizontal Traditional Fix
Brand: 8L1W4uLU9Roqo5rJj4spoB
SKU: gXJVo4B8YMmWcwtEEFvhbG

Eurosafe Solutions Ltd

Cable based guided type fall arrest system.

Jump to:

+44 (0)114 2507411 www.eurosafesolutions.com

Application

Specifically designed for attachment to a reinforced concrete background. The anchor posts can also be specially manufactured for attachment to a wide range of structural backgrounds, including masonry, structural steelwork and structural timber, consult manufacturer for information.

Description

Cable based guided type fall arrest system. Anchor posts are available in nine standard variations; end, corner and intermediate anchor posts, each of which is available in small (up to 215 mm), medium (216–415 mm) and large (416–615 mm) sizes. Compliant with BS 795 Class D and CE Marked.

Components:

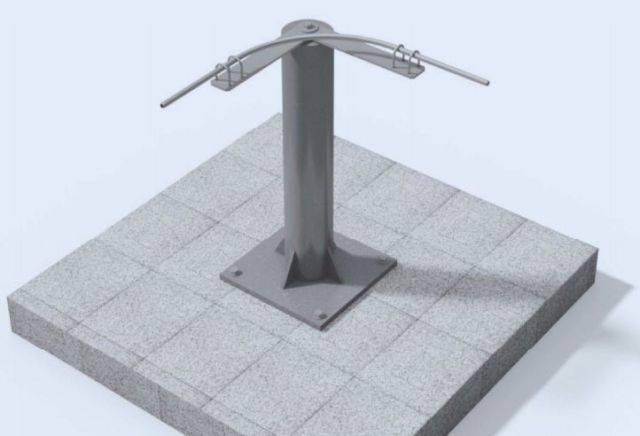

Anchors - End posts, corner posts and intermediate posts.

Cable system.

Applications:

Specification data

Product Reference	Latchways - Horizontal Traditional Fix
Design	As drawing Insert reference, consult manufacturer for information.
Anchor posts height	Insert requirement, available up to 615 mm.
Cable system	6 kN coil absorber H-Xtenda Super 12 Xtenda
Accessories	Insert requirements, many options available, consult manufacturer for information.

Standard product features	Anchor posts: Material: Galvanized carbon steel. Diameter: 89–114 mm (dependent on height). Base plate: 150–300 x 150–300 x 10–15 mm (dependent on height). Intermediate support spacing: 6–10 m.
Product Options	Cable system: Consult manufacturer for information.

Literature

Anchor Point Brochure

Latchways - Horizontal Traditional Fix

Latchways - Horizontal Traditional Fix

As drawing

6 kN coil absorber

H-Xtenda

Super 12 Xtenda

Anchor posts:
Material: Galvanized carbon steel.
Diameter: 89–114 mm (dependent on height).
Base plate: 150–300 x 150–300 x 10–15 mm (dependent on height).
Intermediate support spacing:
6–10 m.

Cable system:
Consult manufacturer for information.
