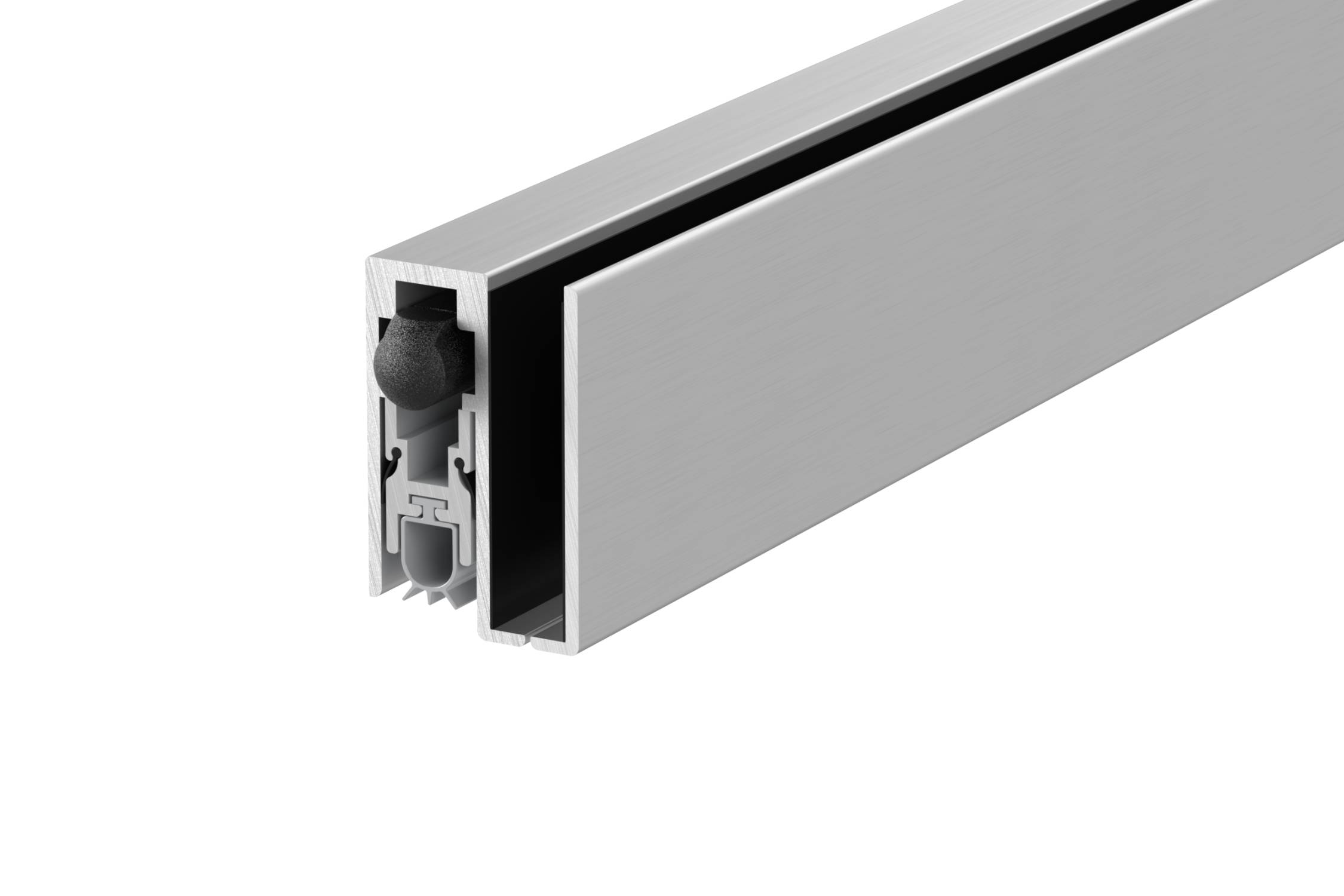

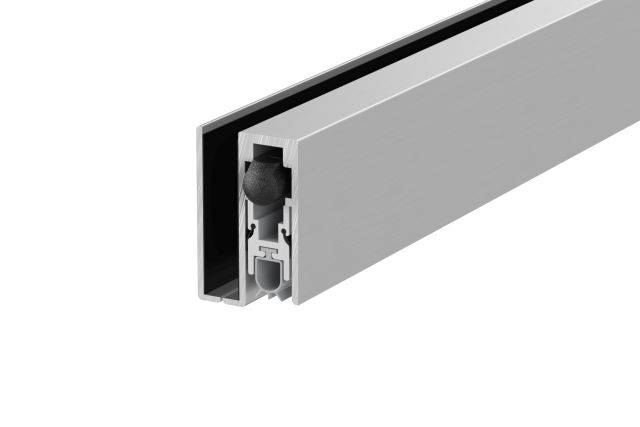

LAS8002G Drop Seal

Description

A slimline face-fixed drop seal suitable for glass doors, and can be hinged into timber or aluminium frames. A smooth back plate creates a visual aesthetic.

Features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces.

Key benefits:

  • Protects against draught, light and insects.
  • Suitable for wheeled traffic.
  • Self-levelling on uneven surfaces.
  • Suitable for various glass thicknesses from 8 mm.
  • Certifire-accredited.
  • Tested for acoustic performance with BS EN ISO 10140-1:2010.
  • Meets the performance requirements of BS 9999, and is used for sealing the threshold of door assemblies against the leakage of ambient temperature smoke.
  • During a durability test, the seal completed 1000 000 cycles without failure.

Face-fixed with strong adhesive tape.

General information

Material

Silicone rubber

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/45 Doors

L20/480 Doorsets

L20/50 Wood door frames

L20/55 Doorsets

L20/60 Doors

P21/62 Weatherstrip to door head and jambs

P21/855 Weatherstrip to door head and jambs

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Product Reference

LAS8002G Drop Seal

Length

335 mm

Can be cut back to 255 mm.

435 mm

535 mm

635 mm

735 mm

835 mm

935 mm

1035 mm

1135 mm

1235 mm

Colour/ Finish

Black anodized aluminium

On request. Consult manufacturer for details.

Bronze anodized aluminium with black end caps, and black silicone rubber gasket

Light bronze anodized aluminium

On request. Consult manufacturer for details.

Powder-coated

On request. Consult manufacturer for details.

Silver anodized aluminium with grey end caps, and grey silicone rubber gasket

Type

Left-handed

Right-handed

Standard product features

Material:

Silicone rubber.

Location:

Single swing doors. Versions available for both right- and left-handed doors, and is non-reversible.

Use with:

  • Any perimeter seal.
  • Any threshold plate.

Dimensions:

35 mm high (excluding seal in dropped position) x 21 mm wide. Applicable to both left- and right-handed versions.

Minimum/ maximum gap size:

3 mm/ 10 mm.

Acoustic performance:

Weighted Sound Reduction Index (Rw): Up to 31 dB.

Product Options

Length:

All lengths can be cut to the next size down.
