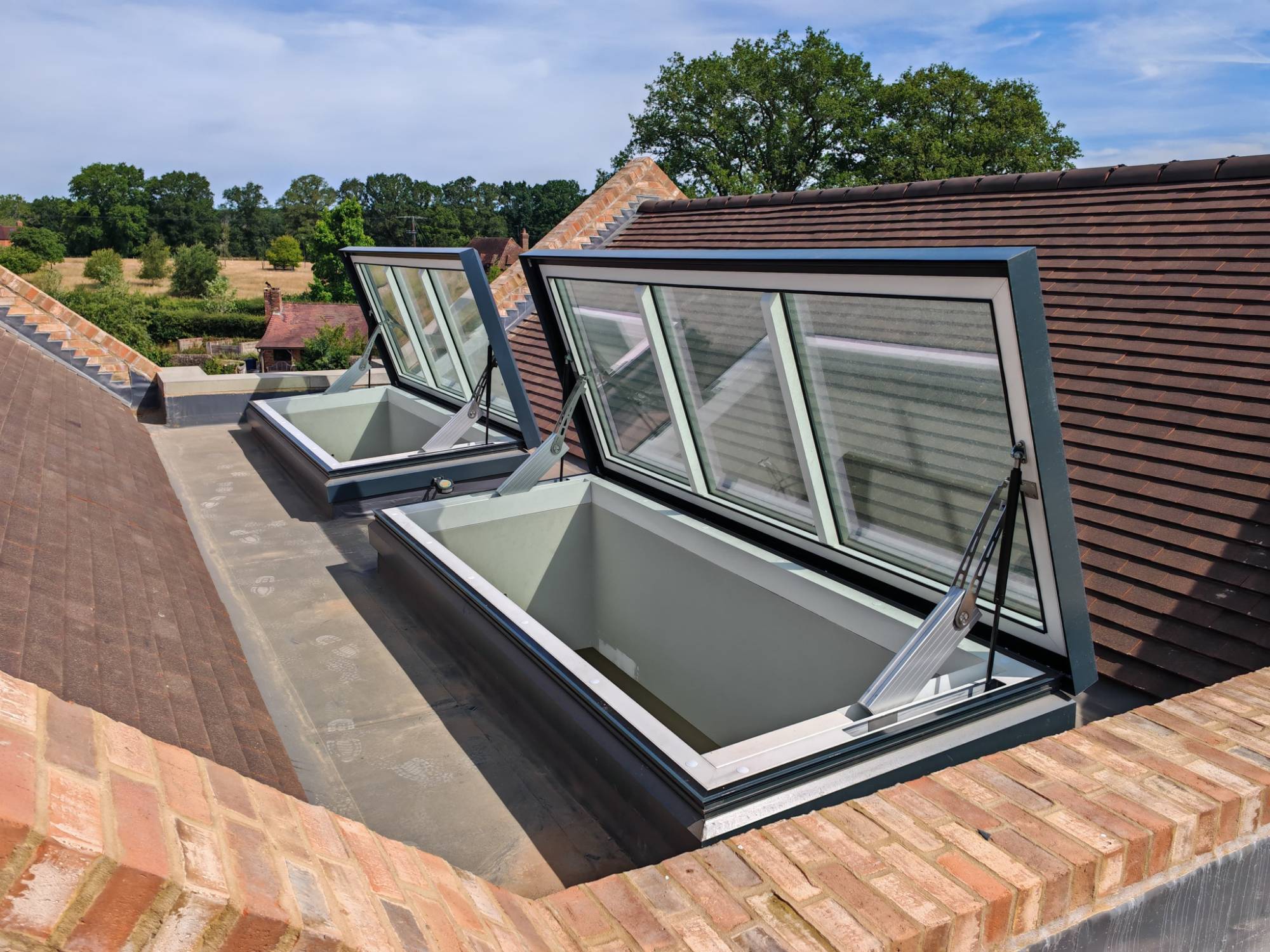

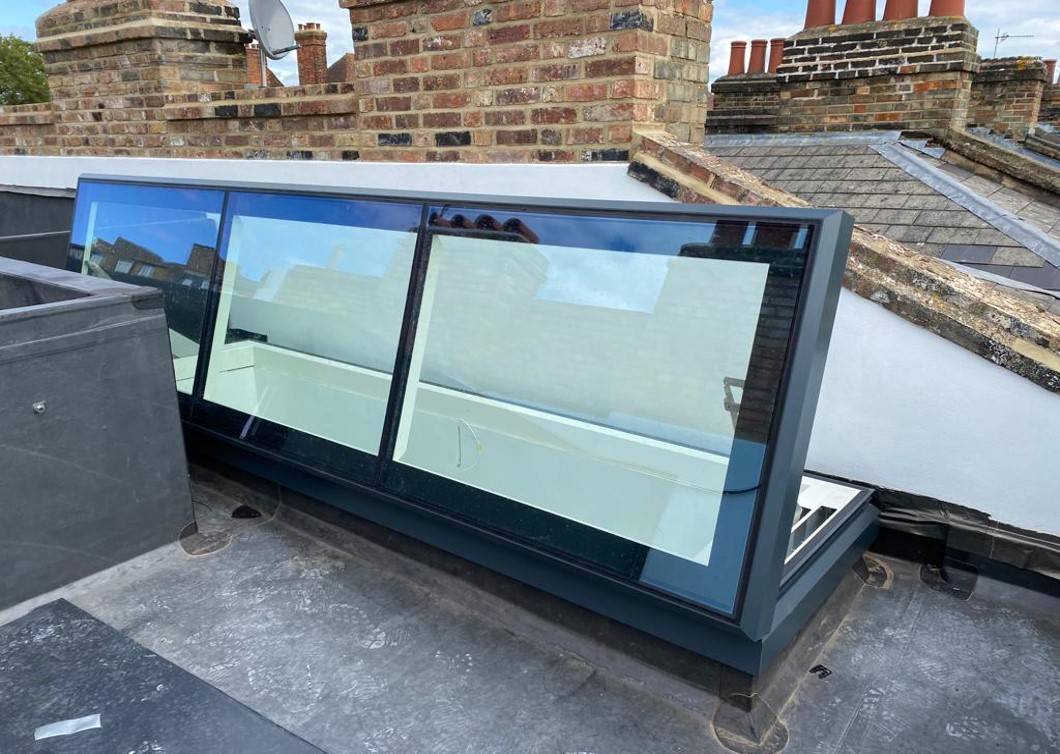

Large Access Hatch Rooflight - Access

Name: Large Access Hatch Rooflight - Access
Brand: Next Generation Rooflights
SKU: vJrUTZTiqjfnqiLzs1Ruyx

Verified by manufacturer 19 days ago

Next Generation Rooflights

Product certifications:

UKAS
Certificate type

Large Electrically Openable Access Hatch for regular access to roof space. Controlled by Smart Switch and/or Smart Speaker

Jump to:

Request BIM

+44 (0)1223 792244 Website

Application

Suitable for use in:

All nominally flat roof constructions and coverings.
Green or sedum roofs.
Marine and coastal environments.

Description

Electric Access Hatch giving regular access to roof space.

Features and benefits:

Fully thermally broken.
Polyester powder coating to a minimum of 60 µm.
Stainless steel concealed fixings.
Tested in accordance with Centre for Window and Cladding Technology (CWCT) standard.
Upstand can be provided by the manufacturer, if required.
Enhanced glazing specifications incorporating anti slip, thermal, acoustic, security, light transmission, solar gain and decorative options are available, please contact manufacturer for details.

General information

Color	White Grey Other Guidance for specification option: Any RAL colour. Beige Black Blue Bronze Brown Cream Gold Green Ivory Orange Pink Purple Red Silver Turquoise Yellow Copper Show more
Finish	Powder-coated Manufacturer guidance As per manufacturer and includes polyester powder coated.
Material	Aluminium Glass
Shape	Square Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year Ten year

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

SKU Code	OLAHR-E

Specification data - Framed rooflights

Classification data
Form	Square. Rectangular. Other. Manufacturer guidance Non-standard shapes are available on request; consult manufacturer for more information.
Size	- Manufacturer guidance Made to order; consult manufacturer for more details and insert requirements.
Frame	-
Material	Extruded aluminium. Guidance for specification option: 6063-T6.
Finish	-
Coating	Polyester powder coated.
Colour	Anodized. External RAL 7015 Mat. Internal RAL 9010 Mat. External RAL 7016 matt. External RAL 9005 matt. Grey. White. Other. Manufacturer guidance Any RAL or BS colour can be specified, insert requirements.
Film thickness (minimum)	60 micrometres.
Glazing or infill	-
Type	Toughened and laminate glass. Guidance for specification option: 4 mm toughened outer. 6.8 mm laminate low-e inner. Non glazed fillings. Guidance for specification option: Insulated panels are available on request; consult manufacturer for more information. SGL. Manufacturer guidance Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available; consult manufacturer for more information.
Operation	-
Type	Manual. Powered, electric.
Accessories	Not required. Upstand. Guidance for specification option: To suit an overall finished upstand of 100 mm in width.
Thermal break	Required.
Water resistance	1050 Pa.
Wind resistance	2.0 kN/m².
Fixings	Stainless steel. Manufacturer guidance Concealed fixings.
Spacer	Warm edge spacer; 22 mm; 90% argon cavity.
U-value	1.1 W/m²K. Manufacturer guidance Glass centre pane U-value.
Seals	Structural and weather seal – Low modulus silicone sealant. PVC coated – UV and water resistant.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium Glass
Recyclability	Glass & aluminum widely recycled
Recycled content As defined in clause 7.8 of BS EN ISO 14021	75 %
