Application

Suitable for mid to high end commercial and hotel washrooms.

Description

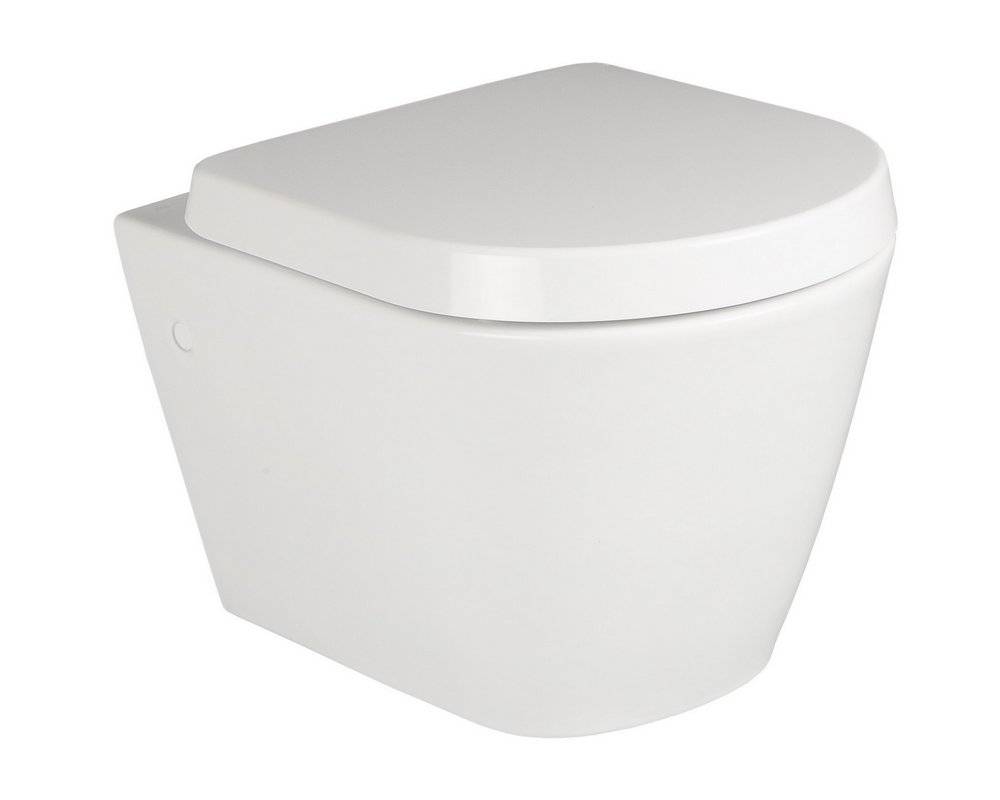

SanCeram Langley wall hung, standard projection WC pan with horizontal outlet.


Features and benefits:

  • Part of the Langley range.
  • Minimalistic design.
  • Standard projection.
  • Rimless flushing.

General information

Color

White

Finish

Smooth

Material

Vitreous china

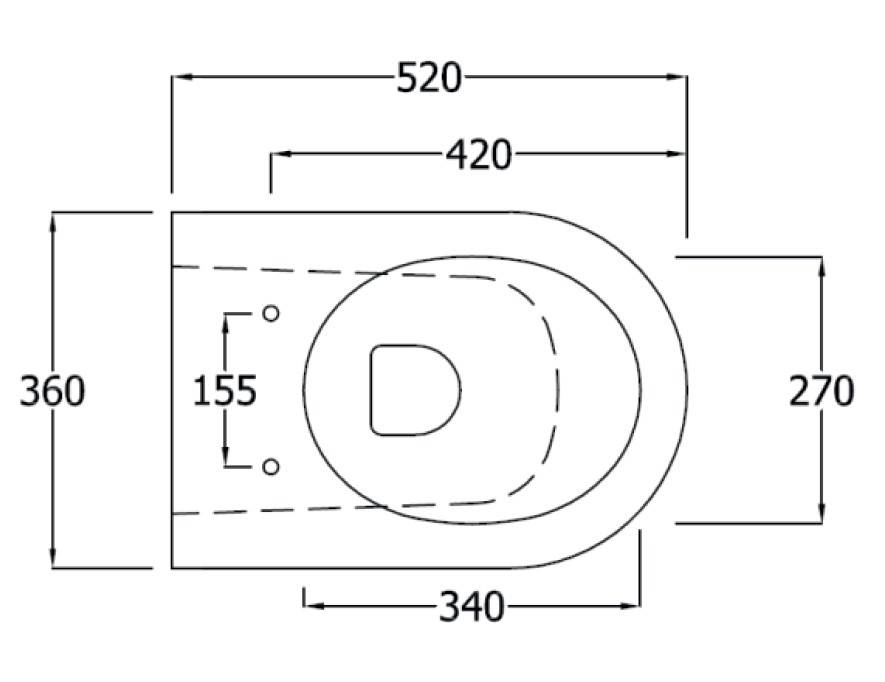

Length

520 mm

Width

360 mm

Height

400 mm

Warranty description

25 year

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/300 WCs and cisterns

N13/10 WC pans and flushing arrangements

Specification data - WC pans

Form

Wall-mounted, siphonic.

Pan height

400 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

Alpine white.

Water supply, outlet and seat holes

-

Water supply

Back inlet.

Outlet

Horizontal back outlet.

Weight

23 kg.

Flushing arrangement

CIST101.

Guidance for specification option:

Mirage concealed dual flush lever cistern.

CIST102.

Guidance for specification option:

Mirage concealed dual flush dimple lever cistern.

CIST103.

Guidance for specification option:

Miniflo concealed single flush cistern with square button.

CIST104.

Guidance for specification option:

Miniflo concealed dual flush cistern with square button.

CIST105.

Guidance for specification option:

Miniflo concealed single flush cistern with palm push button.

Show more

Accessories

Not required.

TSWC117.

Guidance for specification option:

Support brackets and fixings for wall hung pans (not required if using CIST112).

LLWC105.

Guidance for specification option:

Langley Curve slim soft close seat and cover.

TSWC115.

Guidance for specification option:

Convert to P trap connection.
