Langley PU 20 Warm System
Verified by manufacturer 3 months ago
BBA Agrément Certificate
Certificate type
A high-performance, cold-applied, low-odour, single pack, elastomeric, high-build polyurethane coating system.
Application
Flat roofs. Excellent adhesion to most substrates.
Description
Langley PU is a high-performance, cold-applied, low-odour, single pack, elastomeric, high-build polyurethane coating. It cures to form a seamless, durable, long-lasting, waterproof membrane for all types of roof applications. The system comprises two moisture-triggered polyurethane layers, incorporating a random weave glass fibre mat (GFM). The Langley GFM breaks down into individual fibres when embedded in Langley PU Embedment Coat enabling complex details to be encapsulated. The system is completed by applying Langley PU Topcoat, providing a durable and waterproof membrane.
Features and benefits:
- Single component.
- Low odour.
- Cold applied.
- Tough, long-life membranes, glass fibre reinforced.
- 20 year guarantee.
- Easy to apply by roller, brush or airless spray.
- Excellent adhesion to most substrates.
- Free from solvent odour.
- Ultra-high solids.
General information
Color | Grey |
Finish | Smooth |
Material | Polyurethane |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | J31/10 Warm deck roof coating J31/120 Warm deck roof coating |

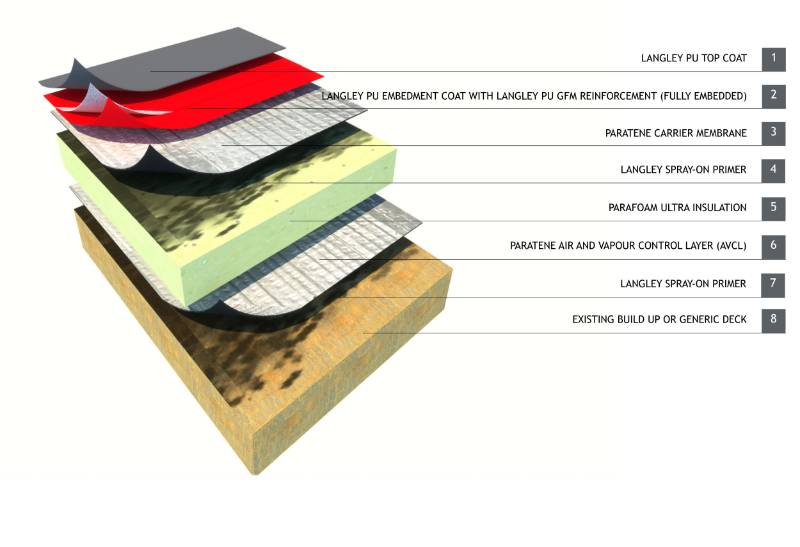

Specification data - Liquid-applied warm roof covering systems
Preparation | |
Horizontal work | Langley PU Metal Primer.Guidance for specification option: Langley PU Metal Primer is a two-component, low odour high, performance anti-corrosive epoxy primer. To be used to prime metal substrates prior to applying Langley PU Embedment coat. Langley PU Porous Surface Primer.Guidance for specification option: Langley PU Porosity Primer is a low viscosity, low odour twin pack, moisture-curing polyurethane. It has been formulated to enhance the adhesion of Langley PU Systems to porous substrates, including felt, asbestos, asphalt, bitumen, fibre cement and concrete. Langley Synthetic Spray-on Primer.Guidance for specification option: Langley spray primer improves the adhesion of self adhesive membranes. The canister or aerosol system allows rapid application and excellent coverage rates. Used for installing self adhesive AVCLs and carrier sheets. |
Skirtings and vertical work | Langley PU Metal Primer.Guidance for specification option: Langley PU Metal Primer is a two-component, low odour high, performance anti-corrosive epoxy primer. To be used to prime metal substrates prior to applying Langley PU Embedment coat. Langley PU Porous Surface Primer.Guidance for specification option: Langley PU Porosity Primer is a low viscosity, low odour twin pack, moisture-curing polyurethane. It has been formulated to enhance the adhesion of Langley PU Systems to porous substrates, including felt, asbestos, asphalt, bitumen, fibre cement and concrete. Langley Synthetic Spray-on Primer.Guidance for specification option: Langley spray primer improves the adhesion of self adhesive membranes. The canister or aerosol system allows rapid application and excellent coverage rates. Used for installing self adhesive AVCLs and carrier sheets. |
Air and vapour control layer | Paratene air and vapour control layer (AVCL). |
Insulation | |
Type | Paraform Ultra Insulation. |
Carrier membrane | |
Type | Paratene carrier membrane. |
Liquid-applied waterproofing | |
Type | Langley PU Embedment Coat (1.0 L/m²).Guidance for specification option: 1K polyurethane red. Langey PU Top Coat (0.75 L/m²) .Guidance for specification option: 1K polyurethane slate grey (RAL 7015). Langley PU Fibre Detail (1 L/m²).Guidance for specification option: Fibre-filled, moisture-triggered elastomeric polyurethane, slate grey. |
Reinforcement | Langley GFM 225.Guidance for specification option: Langley PU GFM Reinforcement is a random weave chopped strand glass fibre mat. It is used as a full reinforcement on heavy-duty flat roof applications, where ponding is evident, and as localised or partial reinforcement in other areas. It helps to provide the ideal solution for areas subject to movement and damage, especially around vulnerable areas such as upstands, joints etc. Size: 50 m² (0.95 x 52.7 m). |
System accessories | Langley PU Winter Accelerator.Guidance for specification option: Langley PU Accelerator is a catalyst to be used with Langley PU Embedment and Topcoats to accelerate the cure. TO BE ADDED TO LANGLEY PU EMBEDMENT AND TOPCOATS FROM SEPTEMBER TO MARCH OR WHEN THE AMBIENT TEMPERATURE FALLS BELOW 10°C. |
Sustainability data
Material | Polyurethane |
Third party certifications
BBA Agrément Certificate
Langley PU BBA Certificate
Literature
Langley PU Waterproofing System
Liquid PU System Brochure
