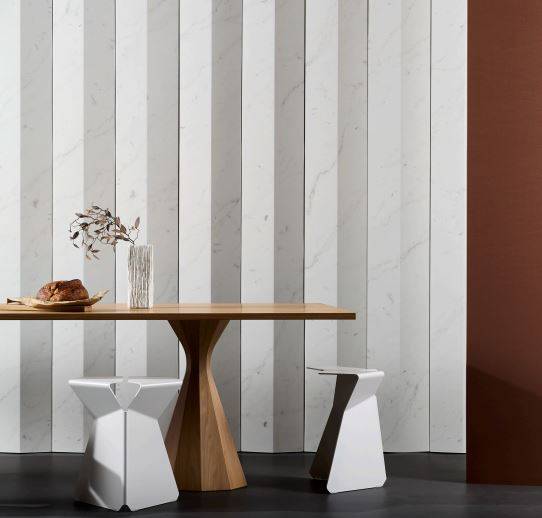

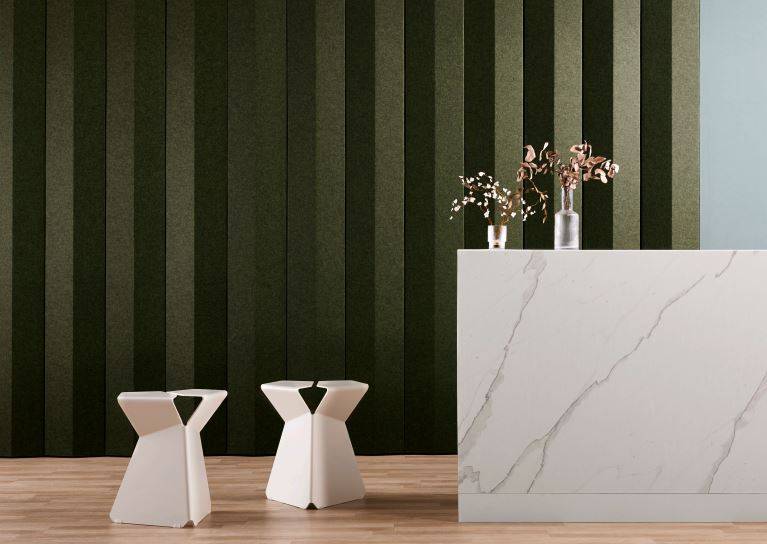

Lanes™ - Acoustic wall system
Verified by manufacturer 10 months ago
Peak
Peak
EPD
Certificate type
Green Tag
Certificate type
Folded linear forms with an air gap
Application
- Walls.
- Commercial/ office spaces.
- Retail.
- Education.
- Hospitality spaces.
Description
Add a feature to any space with Lanes™, a battened style acoustic system made from Cube™. The air gap behind each lane provides enhanced low frequency absorption. Available in three styles: Peak, Plane, and Sawtooth.
Features and benefits:
- No glue needed for installation
- Air gap enhances the acoustic performance
- Beautifully folded joins
- 3D interior façade
- Modular scalable wall design
- Carbon neutral
General information
Color | Beige Black Blue Cream Gold |
Finish | Smooth |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 2400 mm Bespoke Guidance for specification option: Custom lengths available, contact manufacturer for details. |
Width | 1800 mm |
Height | 12 mm |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Classification data | |
Standard | To ISO 9001, ISO 14001. |
Third-party certification | Meets criteria for WELL, LEED, Green Star, and BREEAM building rating systems. |
Form | Panel. |
Rigidity | Semi-rigid. |
Application | Wall mounting. |
Material | Polyester fibre (PET). |
Acoustic performance | |
Purpose | Absorber. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class A. |
VOC emissions | <0.092 mg/m³ (7 days). |
Dimensions | |
Size (length x width) | 2400 x 1800 mm. |
Thickness (overall) | 12 mm. |
Profile | Linear. |
Edges | Square. |
Surface pattern | Solid. |
Colour | Pavilion. Opera. Savoye. Rosada. Senado. Acros. Falling water. Parthenon. Beehive. Flatiron. Cavalier. Muralla. Gherkin. Empire. Sargazo. Pinnacle. Tree house. Petronas. Birch. Guidance for specification option: Acoustic timber finish option. Hoop pine. Guidance for specification option: Acoustic timber finish option. Oak. Guidance for specification option: Acoustic timber finish option. American ash. Guidance for specification option: Acoustic timber finish option. Eucalyptus. Guidance for specification option: Acoustic timber finish option. Tasmanian oak. Guidance for specification option: Acoustic timber finish option. Blue gum. Guidance for specification option: Acoustic timber finish option. Tasmanian blackwood. Guidance for specification option: Acoustic timber finish option. Queensland walnut. Guidance for specification option: Acoustic timber finish option. Jarrah. Guidance for specification option: Acoustic timber finish option. Carrara. Guidance for specification option: Acoustic stone finish option. Travertine. Guidance for specification option: Acoustic stone finish option. Statuario. Guidance for specification option: Acoustic stone finish option. San pedro. Guidance for specification option: Acoustic stone finish option. Statuario rose. Guidance for specification option: Acoustic stone finish option. Rojo alicante. Guidance for specification option: Acoustic stone finish option. Fossena. Guidance for specification option: Acoustic stone finish option. Empress green. Guidance for specification option: Acoustic stone finish option. |
Style | Peak. |
Noise reduction coefficient | 0.80. |
Sustainability data
Contains Red List materials | No |
Material | Polyester fibre (PET) |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 1.89 | |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Product certifications
Product certifications
Certification type
EPD
Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice, 3D Ceiling Tiles, 3D Tiles, Grid Ceiling Tiles, Quietspace® Panel, and Vicinity™
Green Tag
Global Green Tag - Cascade™, Composition®, Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice, Symphony®, Vicinity™, and Vertiface®
Literature
Literature type

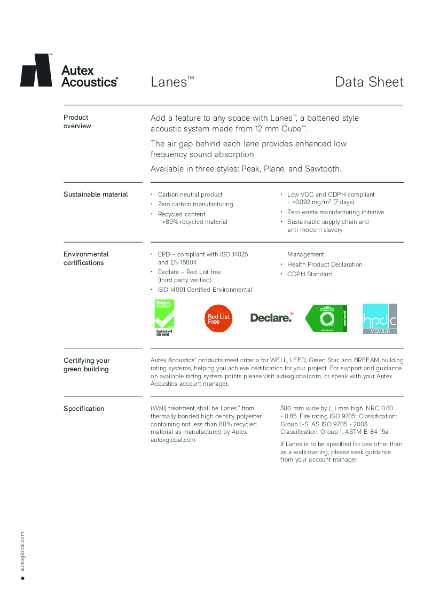

Lanes Datasheet

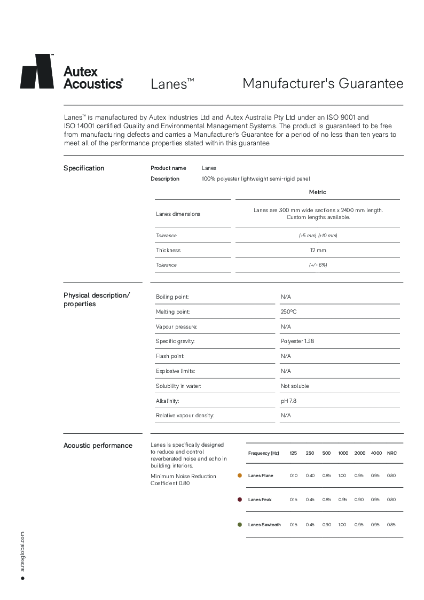

Lanes Manufacturer's Guarantee
Lanes installation instructions
Lanes lookbook
Colour Guide
