A modern and attractive steel planter ideal for public areas.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

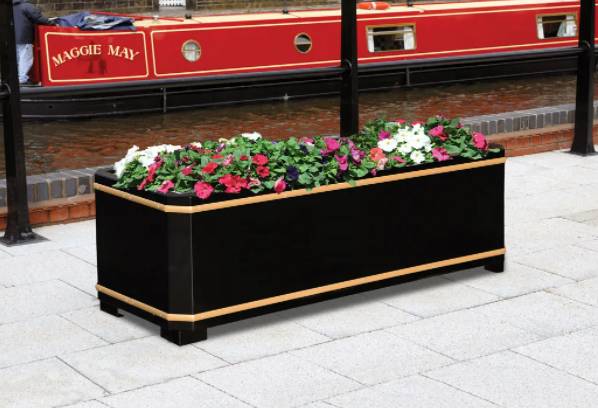

The Lanarkshire Slim Planter is a highly popular commercial planter, available as part of our street furniture suites or as a standalone product. This is an alternative to the Lanarkshire Planter by Broxap.

With a capacity of 270 litres, this slimline version offers a complementary shape and visual to enhance the streetscene.


The Lanarkshire Slim Planter is ideal for all types of landscaping scheme as well as one-off additions to outdoor spaces. This product is particularly popular among public venues such as libraries, schools, museums and community centres, providing a burst of greenery and colour at the entrance to buildings or the approach to these sites. These planters are also suited to sit alongside pavements and towpaths, aiding wayfinding by framing pathways.


Playgrounds, courtyards, gardens and the public realm are greatly improved through the addition of Lanarkshire Slim Planters, offering an easy and effective way to introduce planting into urban areas.


Made in the UK by Broxap at its North Staffordshire production facility, the Lanarkshire Slim Planter can be customised with the addition of crests and badges to match street furniture schemes and place identity. Our environmentally-friendly powder coating plant is also available, providing a decorative, yet highly protective coating in a wide range of colours.

Description

Large capacity steel planter in 3mm galvanised steel, with single galvanised steel liner and two gold alloy bands as standard.


Features and benefits:

  • Available in a range of BS/RAL colours

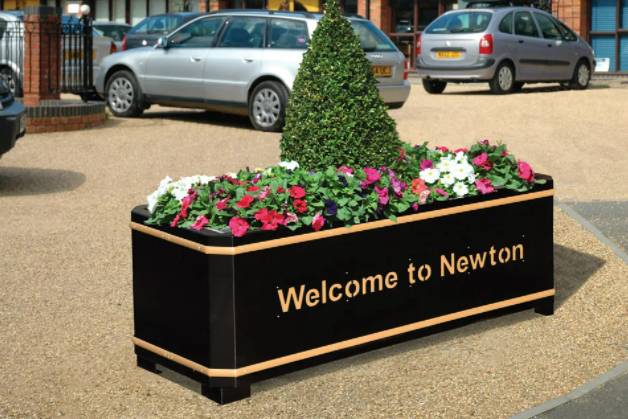

  • Can be customised to create special public or corporate identity through the addition of logos, crests, coats of arms, lettering, dates or other unique elements
  • Laser cut logos, lettering, etc with an anodised aluminium backing plate.

General information

Color

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

1500 mm

Width

500 mm

Height

600 mm

Warranty description

One year

Uniclass

Pr_45_63_63_84 Steel plant containersPrimary

CAWS

Q32/275 Prefabricated plant containers

Q31/292 Prefabricated plant containers

Specification data - Steel plant containers

Material

Carbon steel.

Finish

Coated Black RAL 9005.

Coated Traffic Red RAL 3020.

Coated Dark Blue RAL 5013.

Coated Mid Blue RAL 5015.

Coated White RAL 9016.

Coated White Aluminium RAL 9006.

Coated Anthracite Grey RAL 7016.

Coated Traffic Yellow RAL 1023.

Coated Holly Green BS4800 14 C 39.

Coated Goose Grey BS4800 00 A 05.

Coated Moss Green RAL 6005.

Coated Dark Grey BS4800 18 B 25.

Coated Duchess Blue BS4800 20 C 40.

Coated to a none standard BS/RAL colour.

Shape

Rectangular.

Dimensions

1500 x 500 x 600 mm.

Weight

70 kg + single liner 13 kg = 83 kg.

Capacity

158 L.

Accessories

Crests.

Logos

Coat of arms

Lettering

Installation

Freestanding.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

1

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

Alcumus Safe Contractor

BBA AgrƩment Certificate

BBA AgrƩment Certificate

CE Marking Certification

CHAS

CHAS

CHAS Elite

Constructionline

Constructionline

Constructionline Gold Member

FSC

FSC

FSCĀ® (FSC-C122338) Certification

Health & Safety Accreditation

Health & Safety Accreditation

Insurance

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001 Environmental

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001 Health Safety

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001 Quality

Rospa Safety Charity

Rospa Safety Charity

ROSPA

CQMS

CQMS

CQMS Safety Scheme

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe

BBA AgrƩment Certificate

BBA AgrƩment Certificate

UKCA Marking Certification

Literature

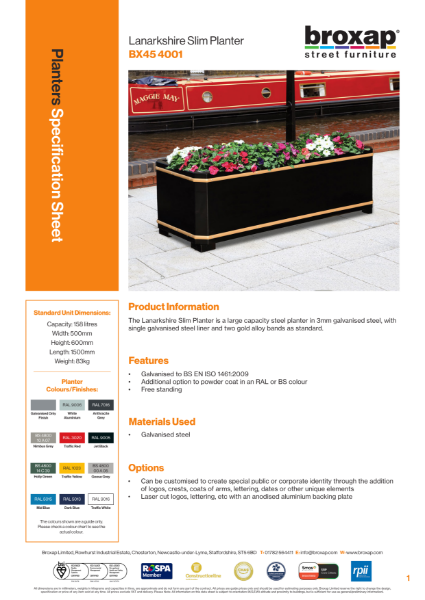

Lanarkshire Slim Planter Specification Sheet
