Laminate Lockers - Dry Area

Verified by manufacturer 19 days ago

One compartment

Helmsman Variant:

Heavy duty laminate lockers with mild steel bodies. Ideal for schools, universities, offices, and other facilities with dry environments.

Jump to:
BOS
+44 (0)1284 530427 Website

Application

Suitable for use in dry environments such as schools, offices and hotels.

Description

Heavy duty laminate lockers manufactured from mild steel metal and solid grade laminate doors.


Features and benefits:

  • Door frame constructed from heavy gauge mild steel of press channel section.
  • Doors constructed from 12 mm Solid Grade Laminate in a plant-on style to cover the top cross member.
  • A range of locking systems are available.
  • Coat hooks are located each side of the main compartment under the shelf.
  • Full width hanging rails are fitted in compartments over 450 mm deep.
  • Numbering options available including Braille as an extra.
  • Supplied fully assembled; installation service available.
  • Bespoke products are available; contact manufacturer for details.

General information

Color

Black

Blue

Brown

Cream

Green

Show more

Manufacturer guidance

Wide range of colours available, consult the manufacturer.

Finish

Powder-coated

Guidance for specification option:

Frame.

Smooth

Material

Metal

Guidance for specification option:

Mild steel metal.

Laminate

Length

300 mm

450 mm

Width

300 mm

380 mm

Height

1800 mm

1775 mm

Warranty description

One year

Guidance for specification option:

Standard.

Manufacturer guidance

Other options available, consult with the manufacturer.

Uniclass

Pr_40_30_87_48 LockersPrimary

CAWS

N10/10 Purpose-made

N10/220 Lockers

Specification data - Lockers

Locker type

Heavy duty locker.

Dimensions

1775 x 300 x 300 mm.

Material

Solid grade laminate (SGL) door and mild steel frame.

Finish

Powder-coated.

Guidance for specification option:

Frame.

Colour

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

FireRating

Euroclass B/BS class 0.

Guidance for specification option:

Standard for CDF doors and steel carcass.

Euroclass C/BS class 1.

Guidance for specification option:

Standard for SGL; not available for CDF or steel carcass.

Locking

Combination lock.

Latch lock.

Guidance for specification option:

Standard.

Refund/ collect lock.

Ten-disc tumbler cam lock.

Guidance for specification option:

Standard.

Hinges

Sprung.

Unsprung.

Guidance for specification option:

Standard.

Numbering

Not required.

Engraving.

Recessed.

Guidance for specification option:

Oval laminated number plate.

Shelves

Not required.

Required.

Stands/ seats

Not required.

Stands plain bung.

Stands with adjustable feet.

Stands with seats.

Guidance for specification option:

Adjustable feet.

Sloping top

Not required.

Required.

Guidance for specification option:

1:3 gradient; recommended where user may leave items on top of lockers.

End panels

Not required.

Required.

Guidance for specification option:

For aesthetic appearance and to protect row ends.

Accessories

Not required.

Numbering.

Guidance for specification option:

Each door is complete with a plastic oval number plate. Plate numbered to suit number on patron key number disc or wrist strap. Optional to have Braille numbering available.

Stands/ seats.

Guidance for specification option:

Stand frames are manufactured from 40 mm electric resistance welded (ERW) steel tube, zinc plated and powder coated. Seats are manufactured from ash hardwood, finished with two coats catalysed lacquer, or solid grade laminate (SGL).

Wrist bands.

Guidance for specification option:

Available in a variety of colours. Consult manufacturer for information.

Plinth.

Guidance for specification option:

Whilst the locker can be mounted straight to the floor, the manufacturer recommends they be raised slightly above floor level.

Show more

Opening size

Full length.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Laminate Lockers - Dry Area

Laminate Lockers - Dry Area

Helmsman Education Brochure

Helmsman Education Brochure

Helmsman Workplace Brochure

Helmsman Workplace Brochure

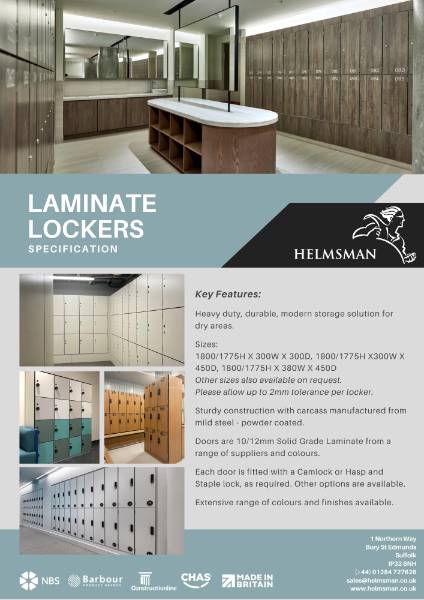

Product Data Sheet - Heavy Duty Range 1-6 Compartments Dry Specification

Product Data Sheet - Heavy Duty Range 1-6 Compartments Dry Specification

Case studies

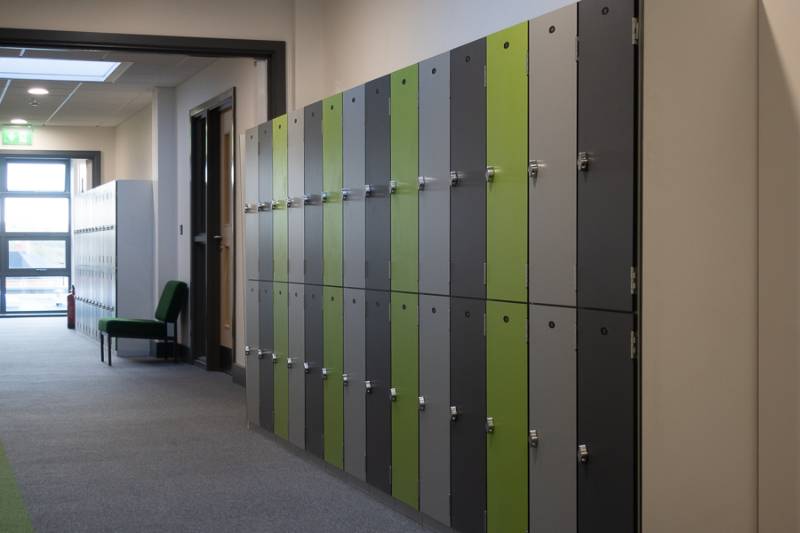

Trowse Primary School Lockers Project

Trowse Primary School Lockers Project

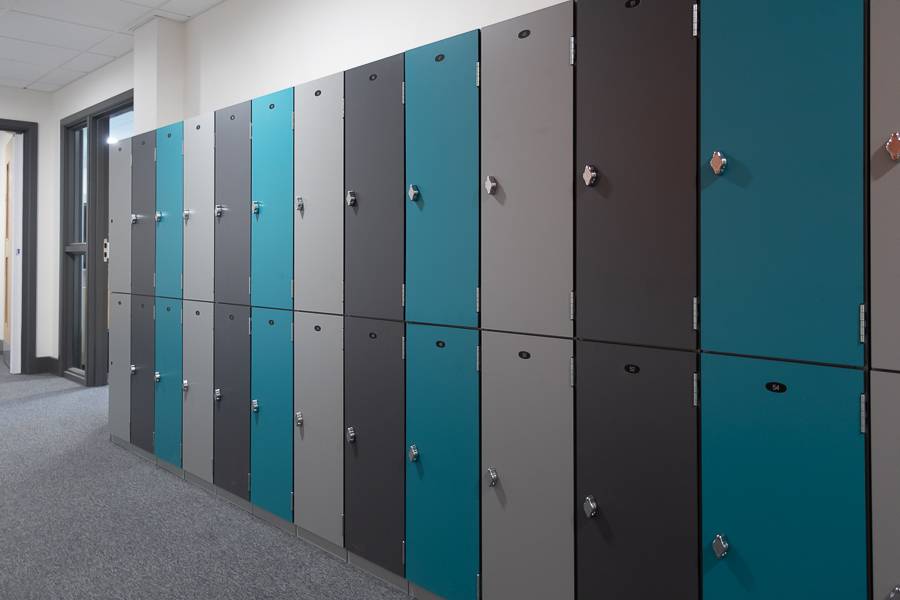

The Warwick School Makeover Project
