Laminate Door Lockers
Verified by manufacturer 17 days ago
Two Doors
Two Doors
BSI Kitemark
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

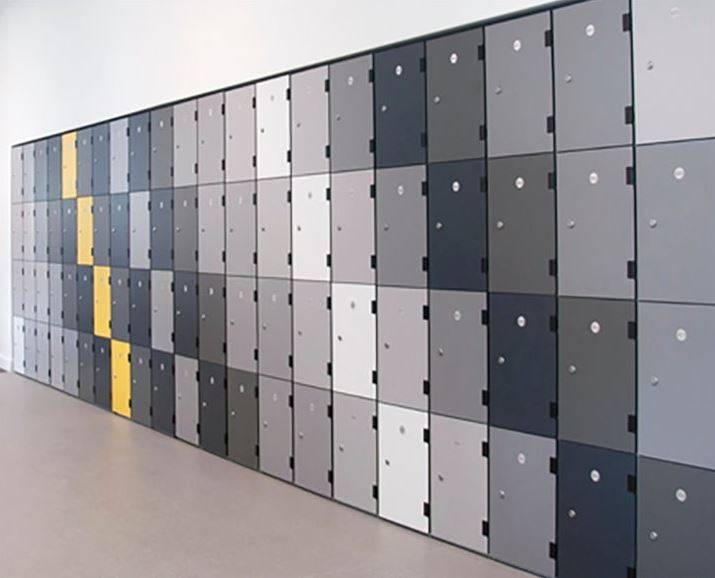

Full height 1800mm mild steel locker with solid grade laminate door.
Application
Suitable for schools, hospitals, hotels, leisure facilities and reception areas.
Description
Combines the versatility of steel lockers, with the durability and aesthetics of solid grade laminate doors. Solid grade laminate material offers a robust solution with a range of colours and material designs, to satisfy all requirements.
Versatile, hard-wearing and reliable, the lockers provide quality, choice and security as standard.
Features and benefits:
- Choice of plant-on doors which cover the front face of the locker body, creating a wall of colour, or inset doors which provide a visual contrast between the door finish and the locker frame.
- Choice of two, three or four door in two standard widths and four standard depths.
- Various locking options available.
- Wide range of laminate colours and
- finishes.
- Lockers can be supplied as nested units - lockers of the same overall dimensions, sharing common side panels, manufactured and supplied fitted together.
- Optional sloping tops to improve hygiene.
- Support frames, stands and bench also available.
- Made in Britain.
General information
Color | Blue Red Green Yellow Grey |
Finish | Powder-coated |
Material | Steel Solid grade laminate (SGL) |
Shape | Rectangle |
Length | 300 mm 380 mm 450 mm |
Width | 300 mm 380 mm |
Height | 1800 mm |
Warranty description | One year |
Uniclass | |
CAWS | N10/220 Lockers |
Specification data - Lockers
Locker type | Full height. |
Dimensions | 1800 x 300 x 300 mm.1800 x 380 x 380 mm.1800 x 300 x 450 mm.1800 x 380 x 450 mm.1800 x 300 x 500 mm.1800 x 380 x 500 mm.Manufacturer guidanceH x W x D. |
Material | Steel and solid grade laminate doors. |
Finish | Epoxy powder-coated. |
Colour | Dark grey.Dust.Pearly white.Electric blue.Lime yellow.Lime.Red dynasty.Manufacturer guidanceDoor colours. |
Fittings | Not required.Sloping tops.Guidance for specification option: Essential in hygiene sensitive locations (such as hospitals and the food industry). The slope prevents items and litter being left on locker tops and makes cleaning easier. Sloping tops increase the overall height of the locker. Locker support frames.Guidance for specification option: Raise lockers off the floor, reducing impact damage and improving hygiene standards. Supplied with adjustable feet to allow for uneven floors. Inset rear legs to clear pipes and skirting. Standard height is 150 mm. Support frame with seat.Guidance for specification option: Seat units can be incorporated into the locker frame, as well as slatted seats to the front. They can include a mesh shelf for footwear. |
Body colour | Light Grey (RAL 7035). |
Locks | Standard camlock. Standard latch lock (padlock). Coin/token return. Coin/token retain lock. Tumbler combination lock. |
Doors | Two doors. |
Configuration | One nest. Two nest. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Solid grade laminate (SGL) |
Manufacturing plant location |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BSI Kitemark
BS 4680: (1996) Level H
ISO 45001 Health and Safety Management
ISO 14001:2015
ISO 9001 Quality Management
ISO 9001:2015
ISO 45001 Health and Safety Management
The design, manufacture, installation and service of storage solutions. Anti-bacteria and Active coating is provided as standard on selected product ranges.
Literature
Solid grade laminate door lockers (steel locker)
Whittan Lockers Brochure
Reduce your Carbon Footprint with Whittan
Case studies
Laminate door lockers - the stylish solution for demanding educational environments
