Utility & Workwear Locker
Verified by manufacturer 19 days ago
Clean & Dirty - Full Height Door
Clean & Dirty - Full Height Door
BSI Kitemark
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Full height 1800 mm utility lockers.
Application
Suitable for storing workwear.
Description

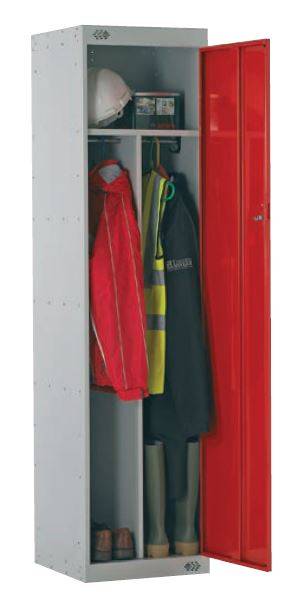

The internal configurations of Utility lockers allow clothing to be separated in separate compartments allowing for clean/dirty compartments and uniform hanging. Two person lockers provides separate garment hanging and a full width compartment storage for two people in one locker.
Features and benefits:
- Riveted and welded steel construction.
- Durable epoxy powder coated finish in five door colours.
- Door stiffeners provide added strength and security.
- Supplied with Camlocks as standard.
- Lockers have been tested and conform to the requirements of the British Standard for Clothes Lockers BS 4680: 1996 ‘Standard Duty’.
- ActiveCoat antimicrobial technology is incorporated into all locker products at the time of manufacture, offering constant protection against a wide range of bacteria.
- Made in the UK.
General information
Color | Blue Red Green Yellow Grey |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 450 mm |
Width | 450 mm |
Height | 1800 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | N10/220 Lockers |
Specification data - Lockers
Performance requirements | To BS 4680, general-duty. |
Locker type | Full height, clean and dirty locker. |
Dimensions | 1800 x 450 x 450 mm. |
Material | Steel. |
Finish | Epoxy powder-coated. |
Colour | Light grey (RAL 7035).Blue (RAL 5002).Guidance for specification option: Standard range. Red (RAL3020).Guidance for specification option: Standard range. Green (RAL 6001).Guidance for specification option: Standard range. Yellow (RAL1003).Guidance for specification option: Standard range. Electric Blue (BS 20 E 51).Guidance for specification option: Standard range. Dark Grey (BS 00A11).Guidance for specification option: Standard range. Burgundy (RAL 3003).Guidance for specification option: Standard range. Black (RAL 9005).Guidance for specification option: Standard range. Manufacturer guidanceDoor colours. |
Fittings | Not required.Sloping tops.Guidance for specification option: Essential in hygiene sensitive locations (such as hospitals and the food industry). The slope prevents items and litter being left on locker tops and makes cleaning easier. Sloping tops increase the overall height of the locker. Locker support frames.Guidance for specification option: Raise lockers off the floor, reducing impact damage and improving hygiene standards. Supplied with adjustable feet to allow for uneven floors. Inset rear legs to clear pipes and skirting. Standard height is 150 mm. Support frame with seat.Guidance for specification option: Seat units can be incorporated into the locker frame, as well as slatted seats to the front. They can include a mesh shelf for footwear. |
Body colour | Light Grey (RAL 7035). |
Locks | Standard camlock. Standard latch lock (padlock). Coin/token return. Coin/token retain lock. Tumbler combination lock. |
Doors | Single door. |
NumberOfCompartments | Fixed top shelf, central divider. Guidance for specification option: Both divided compartments have a garment hanging rail and coat hook. |
Configuration | One nest. Two nest. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
BSI Kitemark
BS 4680: (1996) Level H
ISO 45001 Health and Safety Management
ISO 14001:2015
ISO 45001 Health and Safety Management
The design, manufacture, installation and service of storage solutions. Anti-bacteria and Active coating is provided as standard on selected product ranges.
ISO 9001 Quality Management
ISO 9001:2015
