Tool Charge Lockers
Verified by manufacturer 19 days ago
Four Doors
Four Doors
Full height 1800 mm tool charging locker.
Application

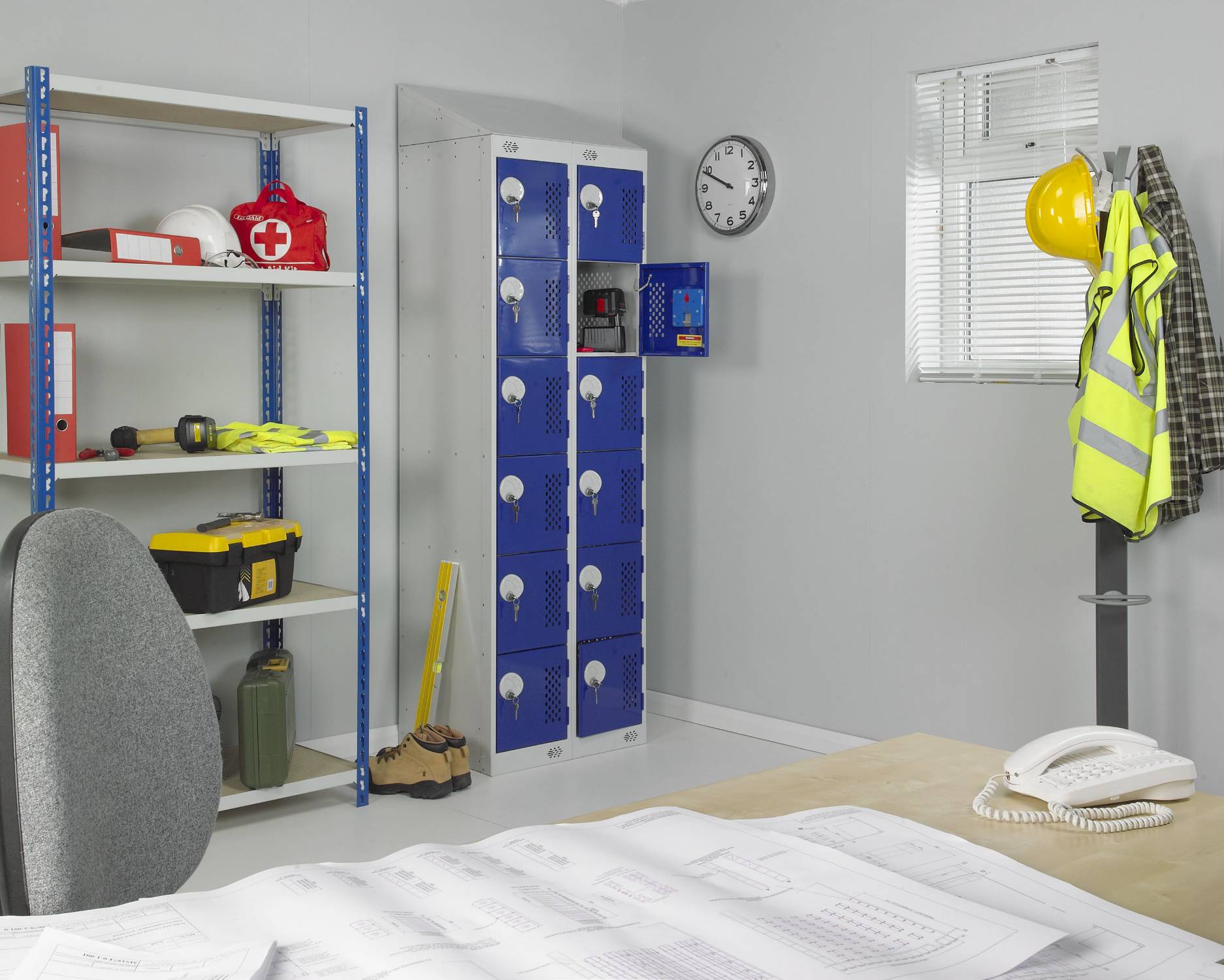

Suitable for site cabins on building sites or in locations which have high usage of trades using cordless tools.
Description
Our charging locker units offer a practical solution in an ever-changing world, providing secure charging facilities for various valuable electrical goods.
Available in a range of sizes and door configurations, our charging lockers are adapted for mobile phones, laptops, tools and small items.
Designed for use in site cabins on building sites or locations with high usage of trades, our Tool Charging Lockers ensure the safety of valuable possessions, such as batteries and chargers.
Features and benefits:

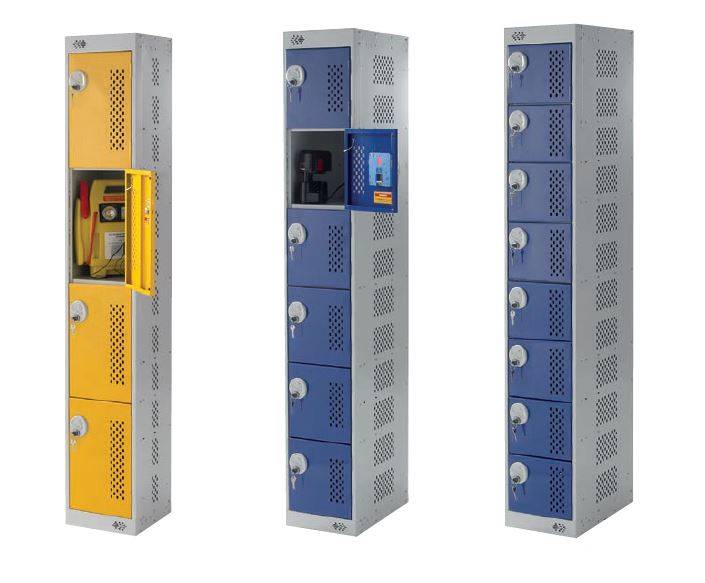

- Choose from four, six or eight-doors.
- Single or double UK socket in four or six door lockers, single UK socket in eight-door locker.
- Key-operated cam locks fitted as standard.
- Available in nests of one or two.
- Lockers have been tested and conform to the requirements of the British Standard for Clothes Lockers BS 4680: 1996 ‘Standard Duty’.
- ActiveCoat antimicrobial technology is incorporated into all locker products at the time of manufacture, offering constant protection against a wide range of bacteria.
- Made in the UK.
General information
Color | Blue Red Green Yellow Grey |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 300 mm 450 mm Manufacturer guidanceThis is the depth of the locker, available in 300mm deep or 450mm deep |
Width | 300 mm |
Height | 1800 mm |
Warranty description | Seven year |
Uniclass | |
CAWS | N10/220 Lockers |
Specification data - Lockers
Performance requirements | To BS 4680, general-duty. |
Locker type | Tool charging locker. |
Dimensions | 1800 x 300 x 300 mm.1800 x 300 x 450 mm. |
Material | Steel. |
Finish | Epoxy powder-coated. |
Colour | Light grey (RAL 7035).Blue (RAL 5002).Guidance for specification option: Standard range. Red (RAL3020).Guidance for specification option: Standard range. Green (RAL 6001).Guidance for specification option: Standard range. Yellow (RAL1003).Guidance for specification option: Standard range. Electric Blue (BS 20 E 51).Guidance for specification option: Standard range. Dark Grey (BS 00A11).Guidance for specification option: Standard range. Burgundy (RAL 3003).Guidance for specification option: Standard range. Black (RAL 9005).Guidance for specification option: Standard range. Manufacturer guidanceDoor colours. |
Fittings | Not required.Sloping tops.Guidance for specification option: Essential in hygiene sensitive locations (such as hospitals and the food industry). The slope prevents items and litter being left on locker tops and makes cleaning easier. Sloping tops increase the overall height of the locker. Locker support frames.Guidance for specification option: Raise lockers off the floor, reducing impact damage and improving hygiene standards. Supplied with adjustable feet to allow for uneven floors. Inset rear legs to clear pipes and skirting. Standard height is 150 mm. |
Body colour | Light Grey (RAL 7035). |
Locks | Standard camlock. Standard latch lock (padlock). Coin/token return. Coin/token retain lock. Tumbler combination lock. |
Doors | Four doors. |
Configuration | One nest. Two nest. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Manufacturing plant location |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
