LABORATORY Collection - Plank
Application

Suitable for:

  • Floors, walls and ceilings.
  • Use with underfloor heating.
  • Floating floors (consult manufacturer for underlay options).
  • Secret nail (manufacturer recommends Ted Todd bitumen backed paper for moisture barrier).
  • Structural floors (maximum 400 mm space between centres).

Description

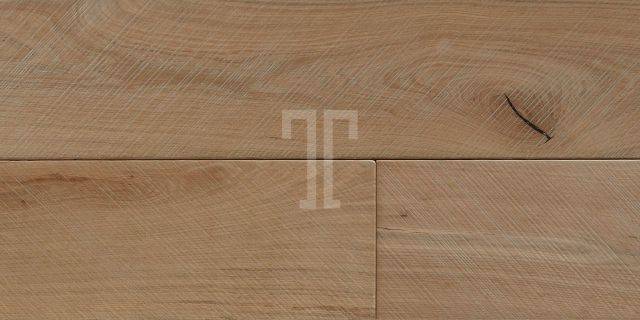

Engineered European oak flooring, designed to be laid in a plank format.

Features and benefits:

  • EU Timber Regulation (EUTR) compliant.
  • FSC Mix Credit.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for:

  • Floors, walls and ceilings.
  • Use with underfloor heating.
  • Floating floors (consult manufacturer for underlay options).
  • Secret nail (manufacturer recommends Ted Todd bitumen backed paper for moisture barrier).
  • Structural floors (maximum 400 mm space between centres).

- Can be installed over:

  • Concrete (dry, flat; not suitable for Satchel).
  • Plywood.
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier).
  • Joists (maximum 400 mm between centres).

Related products:

A range of complementary products is available, including formed treads and risers. Consult manufacturer for details.

Guarantee:

25-year product warranty.

General information

Size

Width: 220 mm

Thickness: 20 mm

Length: Random, up to 2200 mm

Uniclass 2015

Pr_25_71_97_93 Wood laminate strips and boardsPrimary

CAWS

K21/10 Wood laminate flooring

K21/115 Wood laminate flooring

K21/140 Battened wood laminate flooring

Specification data - Wood laminate strips and boards

Product Reference

LABORATORY Collection - Plank

Type

Burbank

Chilton

Eastside

Newport

Wynwood

Yaletown

Standard product features

Size:

  • Width: 220 mm.
  • Thickness: 20 mm.
  • Length: Random, up to 2200 mm.

Technical characteristics:

  • Wood species: European oak.
  • Grade: Nature.
  • Construction: Two ply engineered, 100% hardwood.
  • Edge detail: Hand rolled edges.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Naked skin lacquer.
  • Profile: Tongue and grooved to all sides.
  • Tolerance: ±0.50 mm/ 95% in tolerance.
  • Moisture content: 8–12% fair and average.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Emissions to EN 14342: E1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Formaldehyde emission: E1.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Tonal variation: Medium natural.
  • Batch variation: Not advised to mix batches in one floor area.

Product Options

Type:

- Burbank:

  • Surface texture: In-plank chevron.
  • Tone: Mid.

- Chilton:

  • Surface texture: In-plank chevron.
  • Tone: Dark.

- Eastside:

  • Surface texture: Criss cross.
  • Tone: Mid.

- Newport:

  • Surface texture: In-plank chevron.
  • Tone: Mid.

- Wynwood:

  • Surface texture: Criss cross.
  • Tone: Mid.

- Yaletown:

  • Surface texture: Criss cross.
  • Tone: Dark.
