L2270
Application

  • For timber doors hinged on the left or right and requiring cylinder and lever handle operation.
  • Also suitable for steel and composite doors - special fixings required.
  • Accepts oval or euro profile cylinders.
  • For use with sprung or unsprung lever furniture from either side.

Description

Application:

  • For timber doors hinged on the left or right and requiring cylinder and lever handle operation.
  • Also suitable for steel and composite doors - special fixings required.
  • Accepts oval or euro profile cylinders.
  • For use with sprung or unsprung lever furniture from either side.

Operation:

  • Suitable for use in heavy traffic areas.
  • Deadbolt locked or unlocked by cylinder key or cylinder turn.
  • Latch bolt withdrawn by lever handles or key from either side.
  • Separate cylinder options - oval or euro profile, key and turn or key and key.

Features:

  • 21 mm extended throw deadbolt.
  • Heavy duty springing for high traffic areas.
  • Easily reversible latch bolt.

Additional information for this product is available from:http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2D2-Series/

General information

Size

94.5 mm

114.5 mm

Features

21 mm extended throw deadbolt

Heavy duty springing for high traffic areas

Easily reversible latch bolt

Additional information for this product is available from:http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2D2-Series/

Uniclass 2015

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

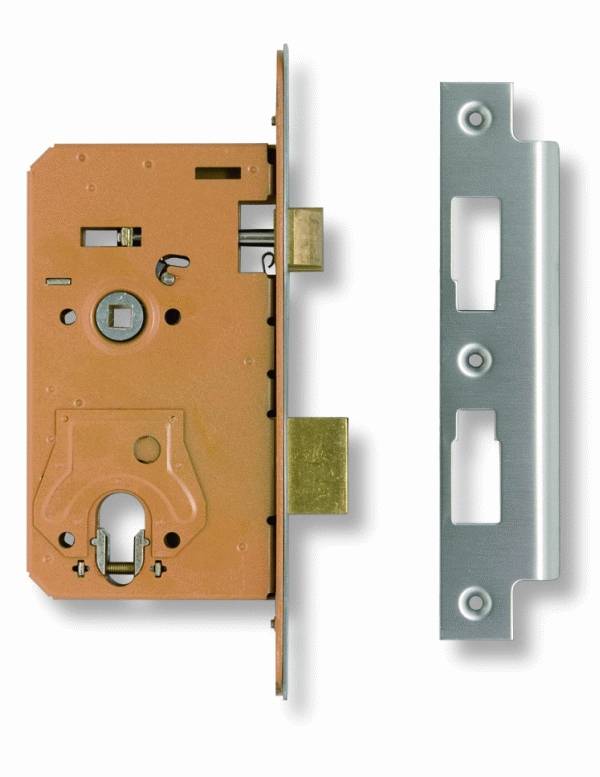

Mortice Sash Lock - L2270

Size

94.5 mm

114.5 mm

Backset

60 mm

80 mm

Outer forend

PL - Polished brass

60 mm backset only.

SC - Satin chrome

Rebate kit

Not required

2936, 13 mm

2936, 19 mm

2936, 25 mm

Polished brass finish.

Standard product features

General:

  • Case: Steel, gold powder coated.
  • Striking plate: Finished to match outer forend.
  • Deadbolt: Brass, with hardened steel rollers.
  • Latch bolt: Brass, easily reversible from outside of the case.
  • Follower: Brass, 8 mm square. One way action.
  • Cylinder type: Euro or oval profile (not supplied).
