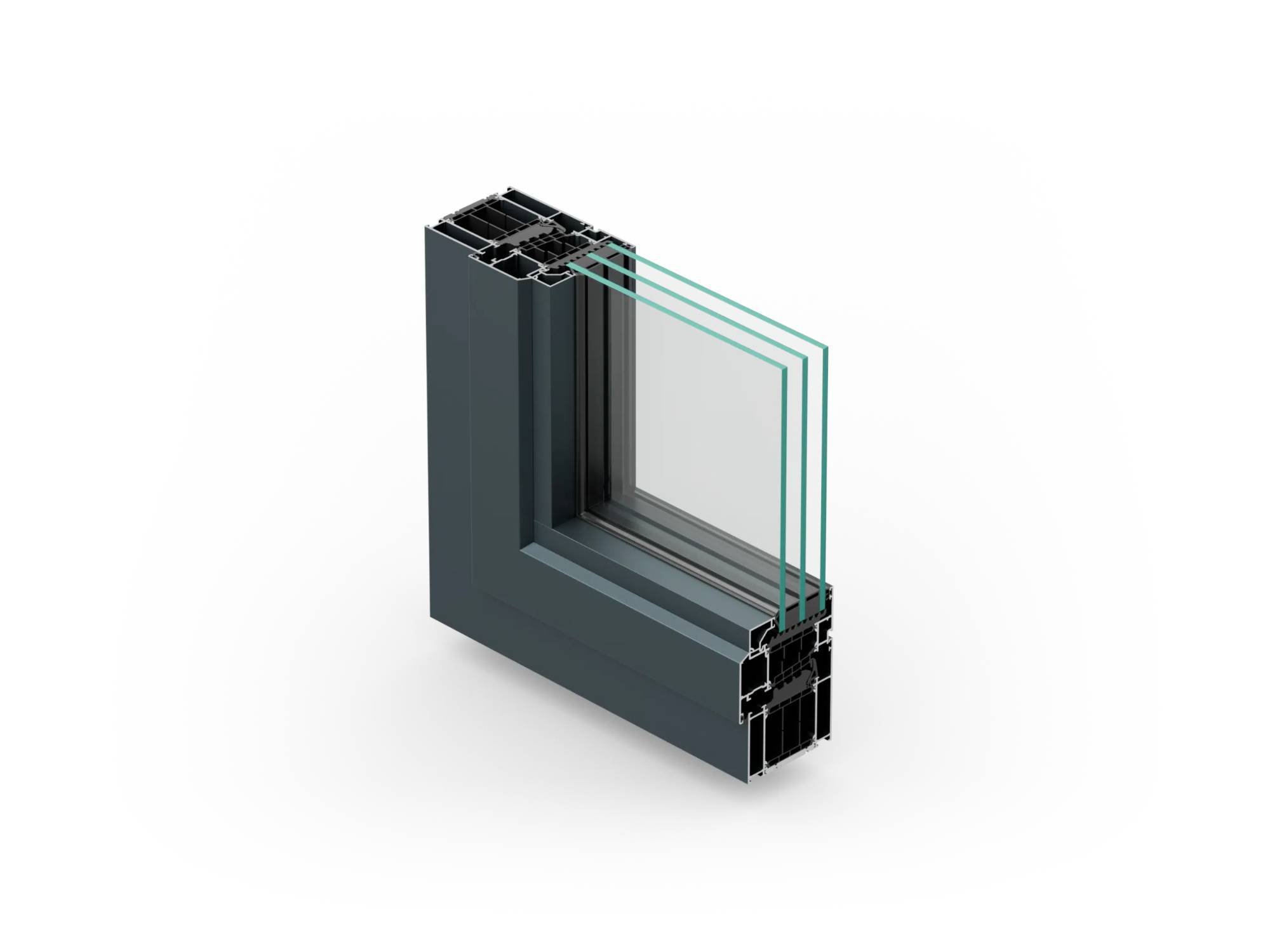

KWD92 UT+ Passive House Aluminium Window - 92 mm Platform Window System
Verified by manufacturer 1 day ago
Qualicoat approval
Certificate type
Secured By Design
Certificate type
Passive House Institute - Certificate
Certificate type
Passive House Institute - Certificate
Certificate type
A window system featuring innovative corner assembly with a sustainable solution.
Application
Suitable for use in a wide range of market applications, including residential, commercial, health and leisure sectors.
Description
The KWD92 UT+ is a high-performance, Passive House–certified aluminium window engineered for efficient manufacture and robust specification flexibility. It combines advanced thermal design with practical security, glazing, and configuration options for demanding projects.
Featuring
- Certified thermal performance: Passive House-certified, with U-values as low as 0.69 W/m²K.
- Specification flexibility: supports glazing thickness up to 65 mm (incl. security glass) and load capacity up to 180 kg.
- Efficient, tested system design: innovative corner assembly enabling ~30% faster fabrication.
- Reduced foam for sustainability: uses ~70% less foam by volume than comparable high-performing systems.
- Security & hardware options: concealed hardware, box beads (security), multiple handle and drainage options; inward-opening variants available.
General information
Color | Black Other |
Finish | Powder-coated Anodized |
Material | Aluminium Glass |
Shape | Rectangle Square |
Length | 92 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Classification data | |
Standard | Non-fire and/ or smoke-rated windows to BS EN 14351-1 and BS 4873. |
Third-party certification | Passive House. |
Dimensions and configurations | Tilt before turn. Guidance for specification option: Available in dimensions 1635 x 2835 mm. Consult manufacturer for details. Turn before tilt. Guidance for specification option: Available in dimensions 1635 x 2835 mm. Consult manufacturer for details. French casement. Guidance for specification option: Available in dimensions 1635 x 2835 mm. Consult manufacturer for details. Turn only. Guidance for specification option: Available in dimensions 1635 x 2835 mm. Consult manufacturer for details. Bottom hung. Guidance for specification option: Available in dimensions 1635 x 2835 mm and 2035 x 1341 mm. Consult manufacturer for details. |
Product performance | |
Weather performance | |
Air permeability | To BS EN 12207, Class 4. |
Watertightness | To BS EN 12208, Class 9A. |
Resistance to wind load | To BS EN 12210, Class C5. |
Safety | |
Security level | To PAS 24. Guidance for specification option: Standard hardware. To BS EN 1627, RC 2. Guidance for specification option: Security hardware required. |
Environmental | |
Acoustic performance rating | To BS EN 10140, 40 dB. |
Thermal | |
Whole window U-value | 0.80 W/m²K. Guidance for specification option: Passive House certified. |
Frame | |
Profile | Passive house. Chamfered (FE). Standard (FF). |
Finish as delivered | |
Coating | Powder coated. Anodized. |
Colour | Single colour. Dual colour. Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Ventilator | Standard. Concealed vent. |
Glazing or infill | |
Requirements | Double glazing. Guidance for specification option: 1.0 W/m²K. Triple glazing. Guidance for specification option: 0.69 W/m²K. Manufacturer guidanceThickness of 24–65 mm, with thermoplastic elastomers (TPE) gaskets and bead glazing. |
Hardware | Concealed. |
Operation | |
Type | Manual. |
Fixing features | Manufacturer guidanceConsult manufacturer for requirements and insert details. |
Profile depth | 92 mm. |
Unit weight | 180 kg. Manufacturer guidanceMaximum weight. |
Locking | Multi-point locking. |
Accessories | Not required. Locking handle. Concealed drainage. Pre-set gasket. |
Sustainability data
Material | Aluminium Glass |
Product certifications
Certification type
Qualicoat approval
Qualicoat Certificate
Secured By Design
Secured by Design Certification

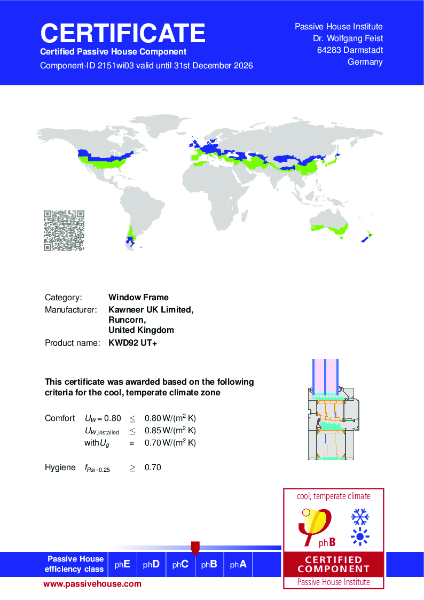

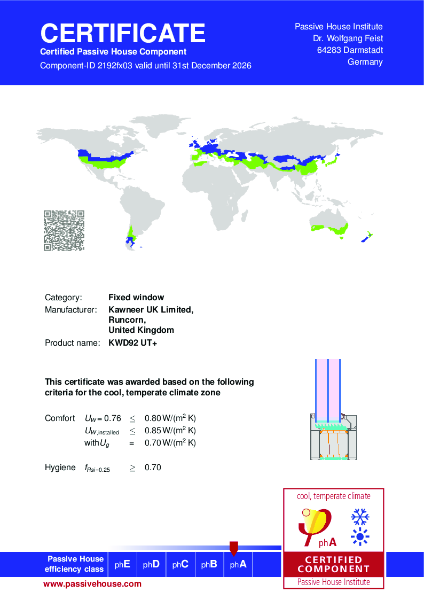

Passive House Institute - Certificate
KWD92 UT+ Passive House Fixed Light
Passive House Institute - Certificate
KWD92 UT+ Passive House Opening Vent
