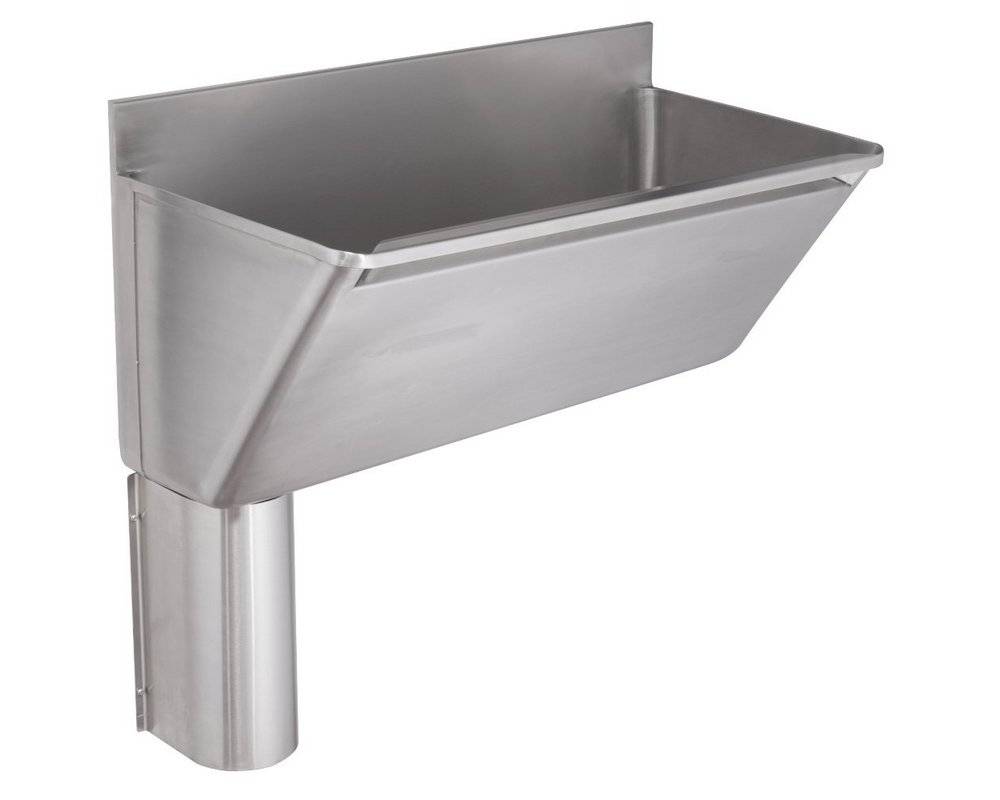

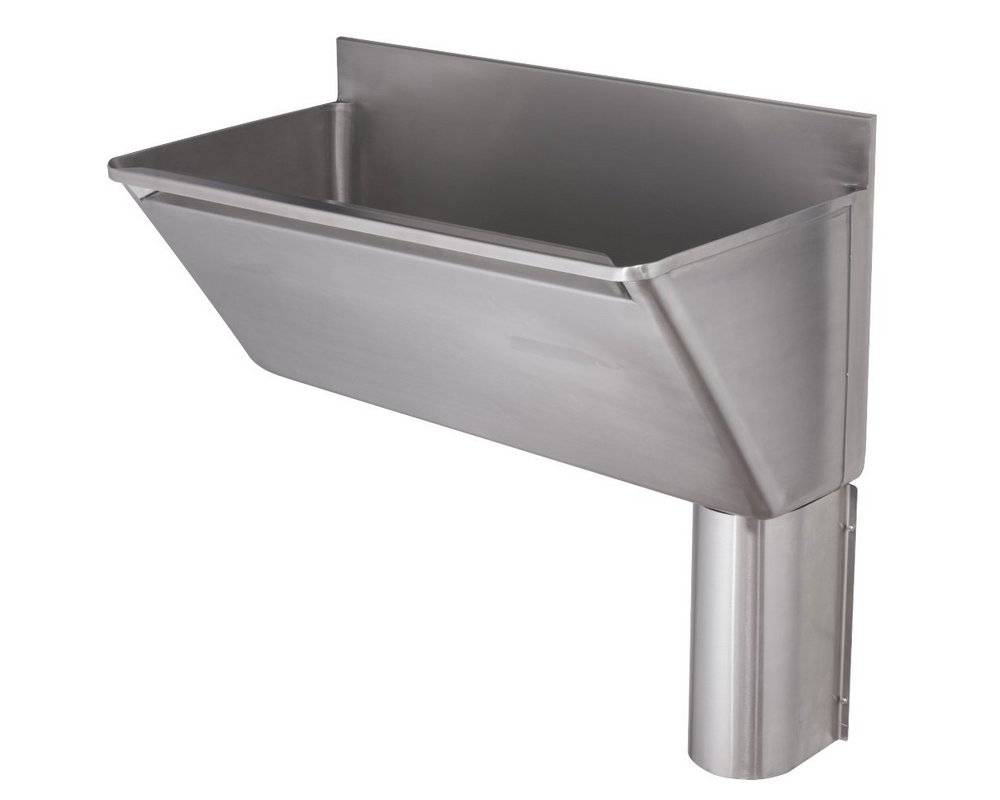

KWC DVS Scrub Up Trough (SU H1, SU H2, SU H3)
Verified by manufacturer 5 months ago
Single person, left hand outlet - G22029L (SU H1)
Single person, left hand outlet - G22029L (SU H1)
HBN compliant single, double or triple person, stainless steel surgeons scrub up trough (ref: SU H1, SU H2, SU H3).
Application
Suitable for healthcare settings. For use in connection with clinical procedures used by surgeons and nurses in theatres and scrub up areas to wash their hands and forearms.
Description
Surgeons scrub up troughs manufactured from 1.5 mm thick grade 1.4301 (304) stainless steel, with a satin polish finish. They are supplied with a conventional waste outlet in the base of the trough for surface mounting. The top and bottom areas of the trough are fixed to the wall using joggle strips (wall fixing screws and plugs are not supplied).
Features and benefits:
- Grade 1.4301 (304) stainless steel.
- Left hand or right hand waste outlet.
- Available in multiple lengths (single, double or triple person).
- Mounted on brackets or front leg supports.
- Suitable for duct panel mounting.
- Fixed to the wall using joggle strips.
- Manufactured in accordance with HTM 64 standard.
- HBN 00-10 Part C compliant ref: SU H1, SU H2, SU H3.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 400 mm |
Width | 800 mm 1600 mm 2400 mm |
Height | 430 mm |
Uniclass | |
CAWS | N13/346 Washing troughs |
Specification data - Wash troughs
Form | Wall-mounted. |
Stations | One. |
Materials | |
Body | Stainless steel Type 1.4301 (304). |
Finish and colour | Satin. |
Size | 800 x 400 mm. |
Water supply, overflow and waste holes | |
Overflow | None. |
Waste | Left-hand outlet. |
Net weight | 15 kg. |
Overall height | 430 mm. |
Sustainability data
Material | Stainless steel |
Literature
Healthcare Brochure
Specifying Healthcare Sanitary Assemblies CPD Synopsis
Case studies
University Hospital Coventry
