KWC DVS 1600mm Disposal Unit (DU HS)
Verified by manufacturer 5 months ago

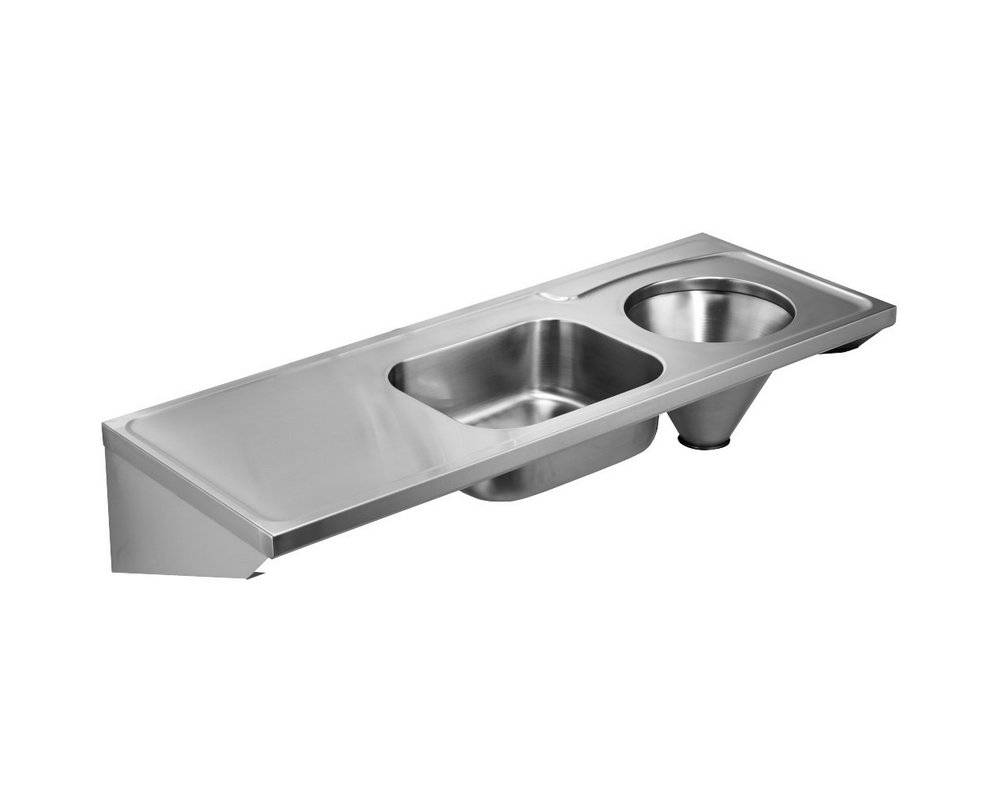

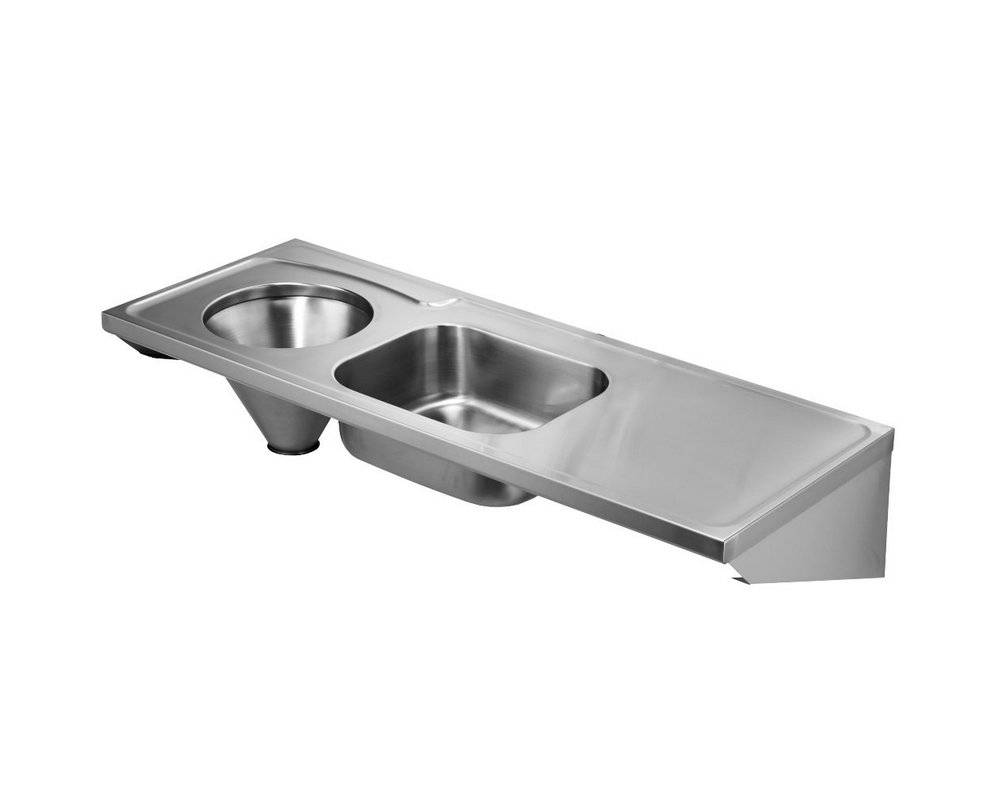

Left hand drainer - G22018L
Left hand drainer - G22018L
HBN compliant Stainless steel hospital disposal unit with right or left hand drainer (ref: DU HS)
Application
Suitable for healthcare settings. For the disposal of liquid and solid waste in connection with clinical procedures. Typical room applications include dirty utility and disposal. For use with panel or wall mounted taps.
Description
A DUHS hospital disposal unit manufactured from 1.2mm thick, grade 1.4301 (304) stainless steel with a satin polish finish. The top is turned down on all four edges and incorporates a wet area recess. It is fitted with a sluice hopper at one end which can be suitable for either top entry or duct mounted services. The hopper has a 110 mm diameter outlet that can accept a P or S trap, available as an extra.
A wash up bowl is positioned next to the sluice hopper and is prepared for a 38 mm waste outlet. The wash up bowl does not have an overflow, however flush grated wastes are available as an extra. 9 litre capacity plastic cisterns with plastic downpipe are available and fitted with a 13 mm HP brass valve, plastic float and CP metal flushing lever handles. The unit should only be fed from a cistern or tank water supply.
The unit can be mounted on either stainless steel cantilever brackets, or stainless steel front leg supports. Front leg supports give a working height of 900 mm and have adjustable feet which can be screwed to the floor for extra stability.
Features and benefits:
- Grade 1.4301 (304) stainless steel.
- Left hand or right hand drainer (when facing the front of the unit).
- Mounted on brackets or front leg supports.
- Suitable for duct mounting.
- Manufactured in accordance with the old HTM64 standard and the Health Building Notes 00-10, part C.
- HBN 00-10 Part C compliant ref: DU HS
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 1600 mm |
Width | 600 mm |
Height | 300 mm 900 mm Guidance for specification option: Working height with front leg supports. |
Uniclass | |
CAWS | N13/382 Slop hoppers N13/386 Disposal units |
Specification data - Hospital pattern disposal units
Form | 1600 x 600 mm hopper with plain top and sink. |
Finish and material | Satin stainless steel, Type 1.4301 (304).Guidance for specification option: Material thickness: 1.2 mm. |
Hand | Left-hand drainer. |
Options | Not required.Flush grated wastes.9 L plastic cistern with plastic downpipe.P trap.S trap. |
Mounting | Wall mounted - stainless steel cantilever brackets. Floor mounted - stainless steel front leg supports. |
Weight | 16.90 kg. Manufacturer guidanceNet/ gross weight. |
Waste | DN 32. Manufacturer guidanceWaste size. |
Waste outlet | Centre back. Manufacturer guidanceWaste hole position. |
Accessories | Tap - F1074. Tap - F1075. |
