Kvadrat Baffle - Hanging Ceiling System
Verified by manufacturer 22 days ago
Suspended acoustic baffle system.
Application
For interior ceiling applications. Particularly well suited to:
- Ceilings where acoustic panels are not possible to mount.
- Spaces with moderate need for sound absorption.
- Accommodate the specific architectural aesthetic that baffle elements provide.
Description
The Kvadrat Acoustics Baffle is a ceiling hung system providing acoustic absorption with a textile finish.

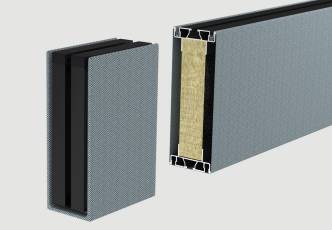

Double-sided, single-layer textile attached to aluminium frame with a 30 mm thick acoustic core.
Features and benefits:
- Typically offers Class-C sound absorption, as per ISO 11654 (depending on ceiling layout, baffle dimensions and inter-spacing).
- Choice of wire hanging or drop rods.
- Choice of textiles.
General information
Color | Beige Brown Cream Ivory White |
Finish | Anodized Other |
Material | Fabric Aluminium Mineral |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/265 Infill units K40/250 Suspension system K40/10 Unit/ modular suspended ceilings |
Specification data - Acoustic baffle suspended ceiling systems
Classification data | |
System performance | Acoustic performance. |
Ceiling support | Wire hanging. Drop rods. |
Support fasteners | Manufacturer's standard. |
Ceiling units | Acoustic baffle. |
Samples required | Not required. Product samples. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Dimensions | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Frame | Black anodized, aluminium hollow section profile, 55 mm. |
Textile | Kvadrat Casa. Kvadrat Tacti Tech. Kvadrat Tacti Duo. Kvadrat Tacti Uni. Kvadrat Primus. Kvadrat Kuria. Kvadrat Other. Guidance for specification option: Consult manufacturer for details. |
Core | 30 mm mineral based absorber. |
Sustainability data
Country of product manufacture | Netherlands |
Material | Fabric Aluminium Mineral |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Kvadrat Acoustics Baffle
