KVA205

Application

Can be used on tiled, concrete and epoxy resin floors in both heavy and light duty areas (dependent on grating specified), including:

  • Internal factory drainage.
  • External civil drainage projects.
  • Kitchens.
  • Hospitals.
  • Meat processing.
  • Chemical plants.
  • Food/ drinks processing.

Description

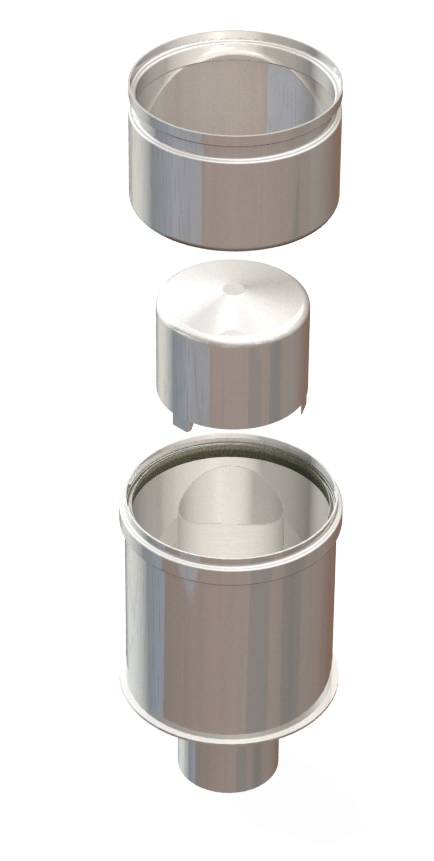

Industrial gully with a round body for use in heavy duty traffic areas.

Features and benefits:

  • Manufactured from stainless steel.
  • Strong construction, with a reinforced edge frame.
  • Achieves a high flow rate (differs dependent on variant specified).
  • Full 360° rotation of the top, and tilt of up to 5° to aid with site fitting.
  • Can be used in conjunction with a range of gratings.
  • Allows for a 60 mm adjustment in height to suit project requirements.
  • Can be used in areas where a number of side inlets are required.
  • The KVB110 Bell Trap is supplied as standard and is easily removable for rodding on all bottom outlet versions – consult manufacturer for further details.
  • Manufactured in accordance with BS EN 10088 and BS EN 1253 to loading Class L15/ R50/ M125/ N250/ P400 - consult manufacturer for further details.

Applications:

Can be used on tiled, concrete and epoxy resin floors in both heavy and light duty areas (dependent on grating specified), including:

  • Internal factory drainage.
  • External civil drainage projects.
  • Kitchens.
  • Hospitals.
  • Meat processing.
  • Chemical plants.
  • Food/ drinks processing.

General information

Material

Stainless steel, grade 304 (1.4301)

Stainless steel, grade 316 (1.4401)

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

KVA205/110

255–315 x 205 x 220 mm (h x w x diameter). Flow rate: 10.9 L/s.

KVA205/110DS

255–315 x 205 x 220 mm (h x w x diameter). Flow rate: 11.2 L/s.

KVA255/110

255–315 x 255 x 270 mm (h x w x diameter). Flow rate: 10.9 L/s.

KVA255/110DS

255–315 x 255 x 270 mm (h x w x diameter). Flow rate: 11.2 L/s.

KVA355/160

255–315 x 355 x 370 mm (h x w x diameter). Flow rate: 20.8 L/s.

KVA355/160DS

255–315 x 355 x 370 mm (h x w x diameter). Flow rate: 21.6 L/s.

Material

Stainless steel, grade 304 (1.4301)

Stainless steel, grade 316 (1.4401)

Grating

See 'Options' below and insert requirements.

Accessories/ Other requirements

Not required

1 ½" BSP inlets

Insert quantity.

4” SCH10 Outlet

To replace 110 mm outlet.

6” SCH10 Outlet

To replace 160 mm outlet.

50 mm side inlets

Insert quantity.

Chained

Damp proof membrane

Filter basket

Foul air trap

Holding flange

Nipple (threaded outside)

Outlet flange

ANSI B 16.5, BS 4504 or polypropylene. Consult manufacturer for details and insert requirement.

Puddle flange

Socket (threaded inside)

Standard product features

Outlet:

  • KVA205/110, KVA205/110DS, KVA255/110, KVA225/110DS: 110 mm.
  • KVA355/160 and KVA355/160DS: 160 mm.

Swage:

  • KVA205/110, KVA255/110 and KVA355/160: 10 mm.
  • KVA205/110DS, KVA225/110DS and KVA355/160DS: 25 mm.

Product Options

Grating:

  • Standard variants (i.e. without DS code) have a 10 mm seat to accept 3 mm-thick or 10 mm-thick perforated gratings.
  • Deep swage variants (e.g. KVA205/110DS) have a 25 mm deep seat to accept mesh gratings from 2 mm or 3 mm-thick steel and ladder gratings from 5 mm, 6 mm, 8 mm or 10 mm-thick steel.

Consult manufacturer for further details.
