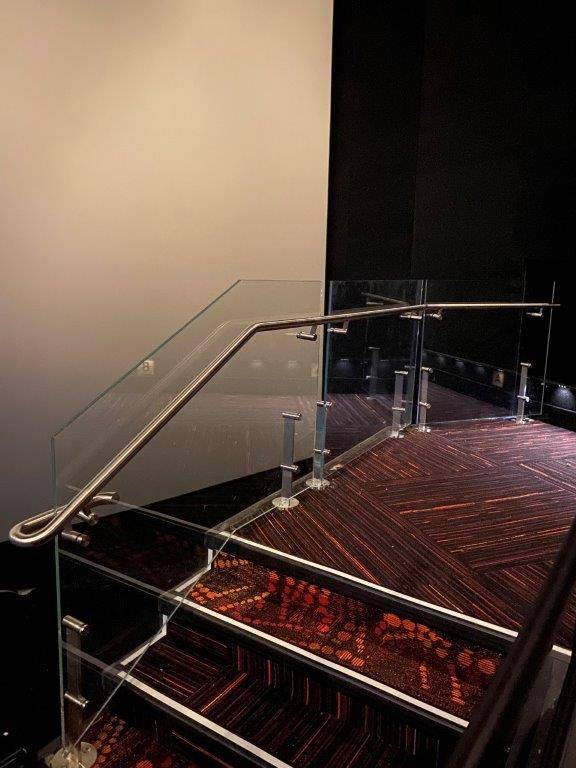

Kubit™ Stainless Steel Railing System

Finish:

All stainless steel supplied in a brushed (240-grain) satin finish.

Top rail:

- Dimensions:

Tube wall: 2 mm-thick (stainless steel rails only).

- Material:

Wood species:

• Kiln dried as standard.

• Other species and finishes available on request (a sample must be submitted for finish required).

• Wood rail attaches to 9 x 13 x 203 mm continuous stainless steel bar at supports and connections.

Infill:

- Type:

Bespoke materials and perforations are available; consult manufacturer for details.

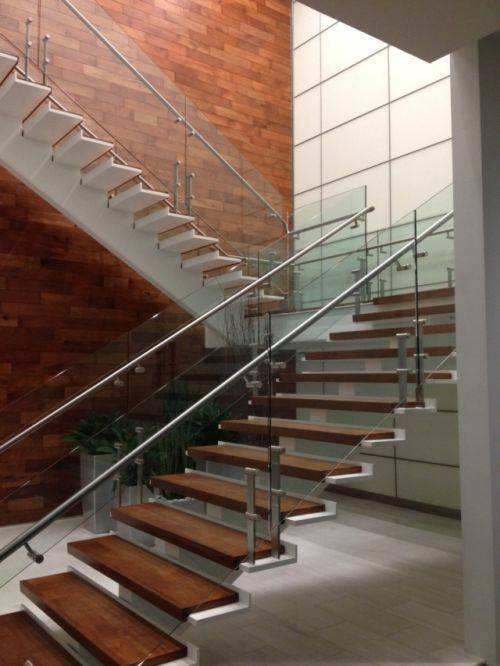

• Glass panels, fully tempered: Infill panels have nominal radius or blunt corners and polished edges.

• Resin: A blend of polyester resin for interior applications.

• Stainless steel panel, perforated: Rectangular frame 13 x 38 mm; brushed finish; 2 mm-thick panel, 10 mm squares on 13 mm centres; polished longitudinally to mitre cuts.

- Fixings:

• Panel link infill holder: Through bolt connection extended from each post for individual panels between single posts. Accommodates panel thickness 10–19 mm.

• Through bolt connection: Mounted directly off of the post with cylindrical fastening detail to accommodate for single panels between two posts.

Post:

- Spacing:

Maximum post spacing: 1524 mm for stainless steel handrails; 1300 mm for wood handrails between post centres.

- Fixing:

• Core mounted spigot fixing with cover plate: Post extends into hole in the concrete structure. Concrete minimum: Thickness 152 mm; 3000 psi; edge distance 76 mm.

• Top mounted to concrete with plate fixing: Consult manufacturer for options.

• Top mounted to steel with plate fixing: Consult manufacturer for details.

• Top mounted to steel with welded fixing: Requires minimum 76 mm structural steel.

• Two-point, side-mounted to steel or concrete with plate fixing: Precise measurements are required for accurate installation of posts and glass. Maximum post spacing 1524 mm for stainless steel handrail.
