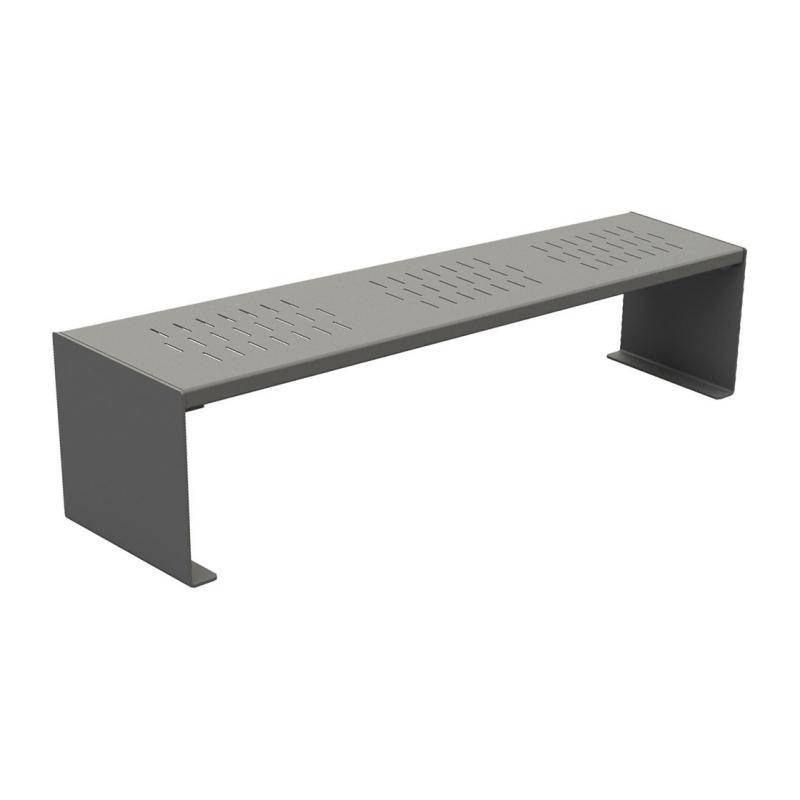

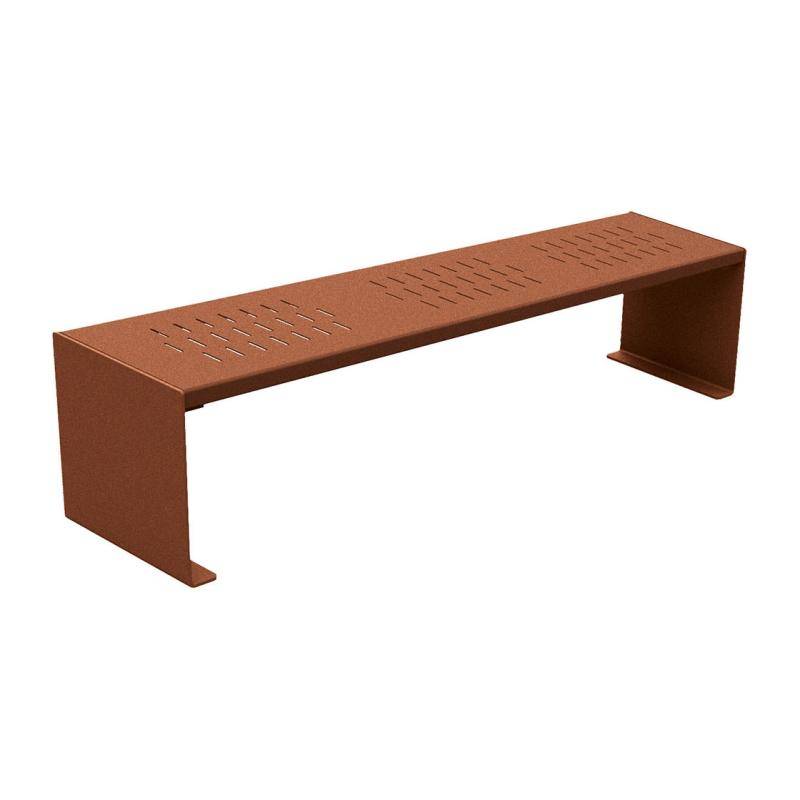

KUBE bench all steel - Street furniture
Verified by manufacturer 7 months ago
Outdoor bench manufactured from steel.
Application
External street furniture ideal for modern outdoor spaces. These benches can be used on their own, or configured together with the Kube collection as part of a wider design project.
Description
Clean lines and infinite combination options for perfect integration into any environment. All Kube products can be combined to create places to meet, talk and relax in any outdoor space.
Features and benefits:
- Heavy 8 mm steel structure, 450 x 450 mm, zinc primed and painted in a textured finish.
- Seat in galvanised steel sheet.
- Mounted onto base plates.
- Flat packed for self assembly.
- KUBE bench all steel - Benches - Green spaces furniture - Procity UK
General information
Color | Grey Black Brown Blue Red |
Finish | Painted |
Material | Steel |
Shape | Rectangle |
Length | 1800 mm |
Width | 450 mm Guidance for specification option: Depth |
Height | 450 mm |
Uniclass | |
CAWS | Q50/34 Seats Q50/225 Seats Q50/33 Benches Q50/220 Benches |
Specification data - Street and site benches
Length | 1.8 m. |
Base | Two baseplates. |
Material | Steel. |
Finish as delivered | Galvanized and painted.Guidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Colours | Procity grey.White.Blue.Red.Black.Grey.Green.Brown.Corten effect. |
Height | 450 mm. |
FrameMaterial | Steel, zinc painted. Guidance for specification option: Zinc paint colours: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. Steel, texture painted. Guidance for specification option: Textured paint colours: SG3020G, SG3004G, SG3004G, SG5010G, SG6005G, SG8017G, SG7044G, SG9010G, SG9005G, Other Colours available. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | Steel is 100% recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
