KTC Comfortline Revolving Doors
Compare variants

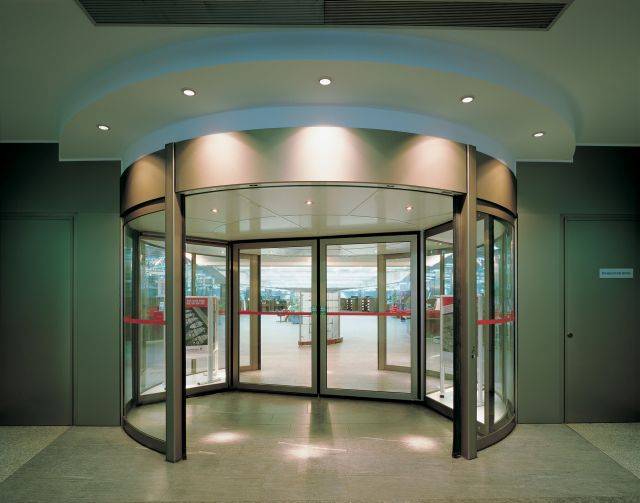

KTC Comfortline Revolving Doors

Verified by manufacturer 3 months ago

KTC-2/0

dormakaba UK Ltd Variant:

Automatic revolving doors suitable for installation in emergency exit and escape routes.

Jump to:
+44 (0)1462 477600 www.dormakaba.com/gb-en

Application

Suitable for installation in emergency exit and escape routes.

Description

A range of automatic revolving doors suitable for installation in emergency exit and escape routes. Door leaves can be broken out and folded to an escape configuration. Alternative summer opening configurations are possible.


Features and benefits:

  • Canopy integral drive unit.
  • Speed reduction feature for disabled access use.
  • Program switch settings: Automatic 1 – Door starts and stops automatically; Automatic 2 – Door rotates continuously at low speed and accelerates to walking speed when user is detected.

General information

Shape

Circle

Finish

Anodized

Mill

Powder coated

Material

Stainless steel

Brass

Uniclass

Pr_30_59_24_04 Automatic revolving doorsetsPrimary

CAWS

L20/495 Automatic revolving doors

Product range

Automatics / Revolving Doors

Specification data - Automatic revolving doorsets

Configuration

2 wing, without showcases.

Materials and finishes

-

Doors

Aluminium, anodized; colour: ___.

Brass; mill bright, MS 63.

PU-coated; RAL ___.

Stainless steel, grade 1.4301, 240 grit.

Stainless steel, grade 1.4301, polished.

Drum walls

Laminated safety glass, clear.

Metal panelling.

Activation and control system

-

Type

Integrated PIR.

Surface mounted radar.

Safety devices

Speed reduction feature for disabled access use.

Accessories

Downlights.

See Options.

Downlights are supplied as standard: four with KTC-2 models, six with KTC-3 models, eight with KTC-4 models.

Insert number of additional units required.

Emergency power supply module.

Floor mat.

Floor ring.

Midrail in door wings.

Midrail in glazed side walls.

Night shield, internal, electrically operated, laminated safety glass.

Maximum diameter 4800 mm.

Night shield, internal, electrically operated, metal panelling.

Maximum diameter 4800 mm.

Night shield, external, manual, laminated safety glass panels.

Night shield, external, manual, metal panelling.

Night shield, internal, manual, laminated safety glass panels.

Night shield, internal, manual, metal panelling.

Night shield locking, electrical.

Night shield locking, mechanical.

Prepared for rainproof roof.

Wind brake.

Wing locking, electrical.

Wing locking, mechanical.

InsideDiameter

3600 mm.

4200 mm.

4800 mm.

5400 mm.

Not KTC-2 models.

6000 mm.

KTC-3 models only.

Show more

Clear passage height

For inside diameters up to and including 4800 mm: 2200–2500 mm.

For inside diameters over 4800 mm: 2200 mm.

2200 mm.

___ mm.

Canopy height

___ mm.

410–700 mm.
