KS23 – Controller for use with G621 in Science Laboratories

KS23 – Controller for use with G621 in Science Laboratories

Duomo (UK) Ltd

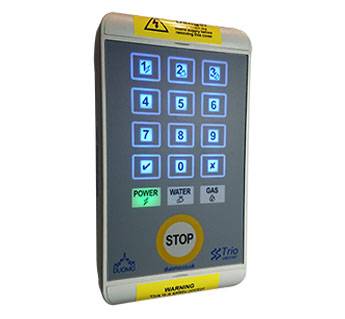

Touchpad control panel suitable for use with G621 Gas Safestart.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

Suitable for educational establishments and scientific research laboratories. For use with the Duomo G621 Gas proving system.

Description

The KS23 Trio Labstart is the controller for the Duomo G621 Gas proving system. The Duomo Trio LabStart system is installed in Schools, colleges and other educational establishments. It securely isolates and safely restarts the gas supply. The KS23 also connects to other devices such as emergency stop pushbuttons and Carbon Dioxide alarms.


Features and benefits:

  • Max out current (all relays): 3 A.
  • Out contact operations: > 100 x 10P.
  • External limit contact: > 3A @ 250 V a.c.
  • Operating temperature: 0 - 60 °C.
  • Maximum operating pressure: 50 mbar.

General information

Shape

Rectangular

Color

Light grey

Material

ABS/FR

WarrantyDescription

Two years

Size

60 x 200 x 110 mm

Uniclass

Pr_75_50_18_33 Gas detection control panelsPrimary

Specification data - Gas detection control panels Enhanced data

Ingress protection (minimum)

To BS EN 60529, IP66.

Nominal voltage

230 V a.c.

Nominal frequency

50 Hz.

60 Hz.

Number of channels

One.

Controls

-

Display type

Digital.

Display the following information

Pin code.

Event log

No.

Mounting method

Any.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library

Literature

G621 Datasheet

G621 Datasheet
