KS22 – Controller for use with G621 in Commercial Kitchens

KS22 – Controller for use with G621 in Commercial Kitchens

Duomo (UK) Ltd

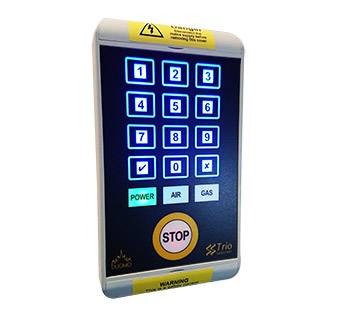

Touchpad control panel suitable for use with G621 Gas Safestart Gas proving system.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

For use in commercial kitchens where all gas appliances have flame safeguards. Suitable for use in hotels, fast-food restaurants, schools, colleges and canteens.

Description

The KS22 is designed for use with the Duomo G621 Gas proving system, to securely isolate and safely restart the gas supply. The KS22 also connects to ventilation monitoring and interlocking devices such as air pressure switches, power monitors and carbon dioxide alarms.


The keypad operated control panel ensures that only authorized personnel can start the gas supply. For commercial kitchens, the ventilation system can be initiated and checked automatically by the KS22 before it allows gas to flow to any connected appliances.


Features and benefits:

  • Max out current (all relays): 3 A.
  • Out contact operations: > 100 x 10P.
  • External limit contact: > 3A @ 250 V a.c.
  • Operating temperature: 0 - 60 °C.
  • IGE/UP/2 Edition 2 and BS 6173 compliant.

General information

Color

Black and light grey.

Material

ABS/FR

Shape

Rectangular

Size

60 x 200 x 110 mm

WarrantyDescription

Two years

Uniclass 2015

Pr_75_50_18_33 Gas detection control panelsPrimary

Specification data - Gas detection control panels Enhanced data

Ingress protection (minimum)

To BS EN 60529, IP66.

Nominal voltage

230 V a.c.

Nominal frequency

50 Hz.

60 Hz.

Number of channels

1

Controls

-

Display type

Digital.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
