KR161

Application

Suitable for barefoot and pedestrian traffic.

Description

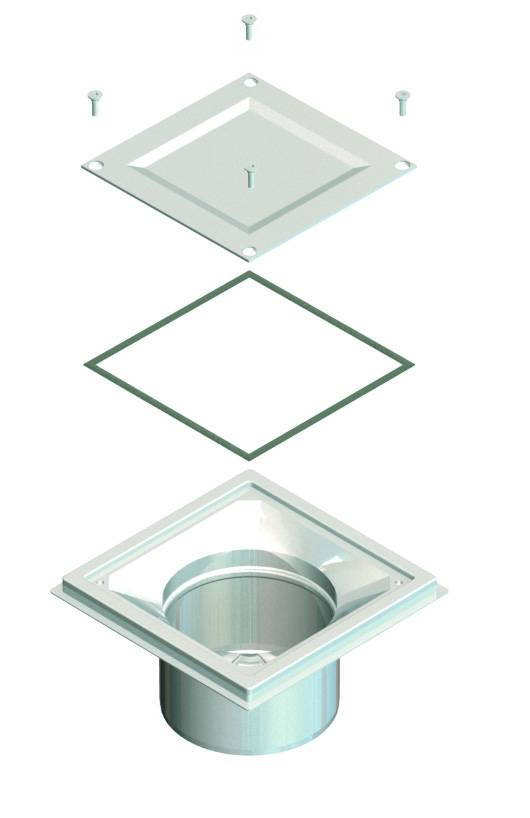

Sealed square stainless steel top part rodding eye.

Features and benefits:

  • Manufactured from stainless steel.
  • Has a blank top with a neoprene gasket below a lockdown grating.
  • Suitable for tiled, concrete and epoxy resin floors. Can also be used as a cleanout for tiled and poured floor areas.
  • Can be complemented with an adjustable height body – consult manufacturer for details.
  • Manufactured in accordance with BS EN 10088 and BS EN 1253 to loading class K3.

Applications:

Suitable for barefoot and pedestrian traffic.

General information

Material

Stainless steel, grade 304 (1.4301)

Stainless steel, grade 316 (1.4401)

Finish

Satin

Uniclass 2015

Pr_65_52_24_85 Stainless steel rodding eyesPrimary

CAWS

R11/390 Rodding eyes

Specification data - Stainless steel rodding eyes

Product Reference

KR161/110TP

Material

Stainless steel, grade 304 (1.4301)

Stainless steel, grade 316 (1.4401)

Accessories/ Other requirements

Not required

Damp proof membrane

Holding flange

Slip-resistant cover plate

Standard product features

Size (h x w x d):

93 x 162 x 162 mm.

Outlet:

110 mm diameter.

Finish:

Satin.
