Application

Suitable for exterior use in a variety of architectural situations such as paths, patios and steps.

Description

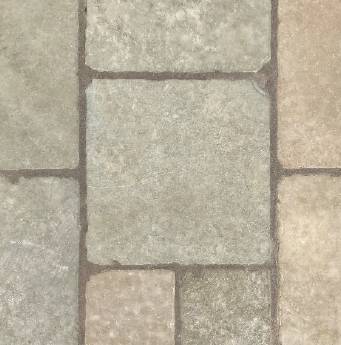

Limestone tumbled paving slab.


Features and benefits:

  • Indian Limestone.
  • Available in a wide range of sizes.
  • Tumbled softly riven finish.
  • Tumbled edges.
  • Recommended sealer Rob Parkers Best Patio Sealer.


Certifications:

  • CE marked.
  • Complies to EN 1341 Slabs (for outside specifications only).

General information

Color

Brown

Blue

Green

Finish

Tumbled

Material

Stone

Shape

Square

Rectangle

Length

275 mm

560 mm

845 mm

1130 mm

Width

275 mm

420 mm

560 mm

Height

30 mm

Uniclass

Pr_25_93_60_58 Natural stone paving slabsPrimary

CAWS

Q25/50 Natural stone slabs

Q25/310 Natural stone slabs

Specification data - Natural stone paving slabs

Standard

To BS EN 1341.

Stone denomination

-

Petrological family

Limestone.

Colour

Brown.

Name (traditional)

Indian Limestone.

Origin

India.

Physical properties

-

Profile

-

Slab type

Regular plan form.

Arrises

Rounded.

Guidance for specification option:

Tumbled.

Dimensions and associated tolerances

-

Nominal sizes

275 x 275 x 30 mm.

275 x 560 x 30 mm.

420 x 560 x 30 mm.

560 x 560 x 30 mm.

560 x 845 x 30 mm.

1130 x 560 x 30 mm.

Tolerances on plan dimension and thickness (nominal)

+/-5 mm.

Tolerances on diagonals

+/-5 mm.

Tolerances on thickness

+/-5 mm.

Finish

Riven.

Guidance for specification option:

Tumbled Softly Riven Surface.

Performance requirements

-

Slip resistance

To EN 14231, 68 dry; 62 wet.

Breaking load

To IS1 3630, 6.3 x 10³ N.

Water absorption (maximum)

To EN 13755, 0.05% (by weight); to EN 1925, 0.01% (by capillary).

Edges

Tumbled edge.

Wear resistance

To EN 14157, 5.8 mm.

Guidance for specification option:

Average wear.

5.6 mm - individual wear.

Apparent density

To EN 1936, 2.7%.

Porosity

To EN 1936, 0.23%.

CompressiveStrength

To EN 1926, 376.4 kg/cm².

Flexural strength

To EN 12372, 23.5 MPa.

Frost protection

To EN 12372, 23.8 MPa (after 12 cycles Flex strength); 21.6 MPa (after 48 cycles Flex strength).

Manufacturer guidance

Frost resistance.

Sustainability data

Contains Red List materials

No

Country of material origin

India

Country of product manufacture

India
