Waterproofing of construction joints in the wall/floor junction and kicker joints with polyurethane resin.

Jump to:
+44 (0)1387 270252 www.kosteruk.com

Description

For retroactive waterproofing of the wall/floor junction through boreholes or previously installed injection hose. Boreholes shall be drilled transecting the construction joint. The borehole should be drilled approximately into the middle of the construction joint.

For this application KÖSTER Superpackers or KÖSTER One Day Site Packers are used. The injection is carried out with the KÖSTER 1C Injection Pump.

For this KÖSTER IN 5 can be used by either pumping into a previously installed injection hose, or by injecting through injection packers. Koster IN 5 is a very low viscosity polyurethane injection resin with a very long pot life. It will pass into even the finest cracks along the construction joint.

In case of flowing water or when it is not certain if the crack is dry or wet KÖSTER 2 IN 1 is injected. This resin will foam on contact with water but can also cure to a solid body elastic resin where no water contact is made, thus enabling a 2-stage injection process with only one resin.

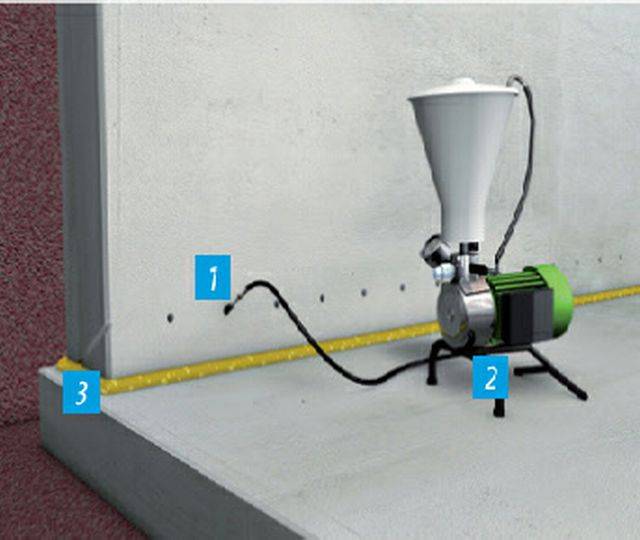

System Components:

  • Packers.
  • KÖSTER 1C Injection Pump.
  • Resin.

General information

Uniclass 2015

Pr_20_31_53_41 Injection mortar damp-proof coursesPrimary

CAWS

C45/220 Chemical injection dpc system

C45/30 Chemical injection dpc system

Specification data - Injection mortar damp-proof courses

Product Reference

Polyurethane waterproofing System for Construction Joints in the Wall/Floor Junction

Packers

KÖSTER One-Day-Site Packer, 90 mm

KÖSTER Superpacker

With firmly mounted cone-head (Grease Nipple) or Pan Head (slide on) fittings for pressure injection, galvanized. Insert requirements.

Injection resin

KÖSTER 2 IN 1

KÖSTER IN 5

Product Options

Packers:

- KÖSTER One-Day-Site Packer:

Allows injection works to be completed in one day. Immediately after injecting, the part of the port which protrudes from the wall can be unscrewed and removed. The front part of the port stays in the wall, sealing the borehole so that no injection material can flow out of the borehole even under high pressure. The borehole can thus be closed immediately after the injection is carried out. Available in 90mm lengths.

- KÖSTER Super Packer:

With firmly mounted cone-head (grease nipple) fitting for pressure injection, galvanized. KÖSTER Superpackers are suitable for pressure injection. They are inserted into the borehole so that the rubber seal of the port is completely submerged in the borehole. Then, the port is tightened meaning the rubber seal is compressed which causes it to expand in width thus pressing it onto the wall of the borehole. The cone shaped tightening piece also ensures that the seal is pressed tightly onto the wall of the borehole. This way, the port is installed tightly in the borehole (also available with Pan Head 'slide on' fitting).

Available in 10 or 13 mm widths, 85 or 115 mm lengths.

Resin:

- KÖSTER KB-Pur® 2 IN 1 Injection Resin:

Will cure with or without water, solvent-free, polyurethane injection resin. Suitable as injection foam at water bearing cracks and joints as well as flexible solid-resin for permanent crack sealing.

- KÖSTER KB-Pur® IN 5 Injection Resin:

Two component, very low viscous, elastic polyurethane injection resin. Viscosity (at 25 °C, approximately) 70 mPa.s. For sealing of fine cracks and for injection via pre-installed injection hoses.

Literature

Third party certifications

  • CE Marking : KÖSTER KB-Pur® 2 IN 1 Injection Resin: according to EN 1504:2004 Concrete injection for the elastic filling of cracks, voids and defects.
  • CE Marking : KÖSTER KB-Pur® IN 5 Injection Resin: according to EN 1504:2004 Concrete injection for the elastic filling of cracks, voids and defects.
