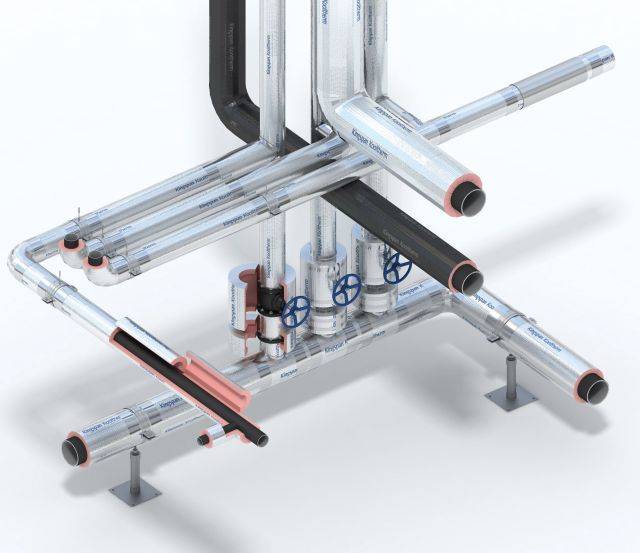

Kooltherm Pipe Insulation
Kooltherm Pipe Kooltherm-Black Aluminium
Pipe insulation system.
Application
Suitable for new build and refurbishment projects in the residential, commercial, institutional and industrial sectors.
Description
The Kooltherm Pipe Insulation System comprises insulation manufactured from Kooltherm rigid phenolic insulation and insulated pipe support inserts fabricated from Kooltherm high density rigid phenolic insulation.
Insulation is suitable for mild steel, stainless steel, copper, multiplex and plastic pipework for cold, chilled, refrigeration, heating and hot water services. The pipe support inserts are used in pipe hanger brackets for loadbearing applications and will support the compressive loads imposed by horizontal pipework carrying water or other liquids.
Standards:
Kingspan Kooltherm pipe insulation and Insulated Pipe Support Inserts are certified to:
- BS EN ISO 9001: 2015 (Quality Management Systems. Requirements).
- BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements).
- BS OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements).
Sustainability:
CFC-free and HCFC-free with zero ozone depleting potential (zero ODP) and a global warming potential (GWP) of ≤5.
Green Guide rating:
BRE Global Green Guide Rating of A+.
Ecoprofile:
The score obtained by Kingspan Kooltherm Pipe Insulation from the BRE Global Environmental Profiles Methodology life cycle assessment is available online at Green Book Live, Certificate no. 523. The lower the ecopoints, the lower the environmental impact.
Approvals:
- KIWA Agrément certificate BAP 15-036/01/C.
- FM Approved per FM Approval Standard 4924 where manufactured and installed in accordance with the details of the FM Approval. Please contact Kingspan technical services for further information.
- Eurofins Indoor Air Comfort Gold.
- LEED v4.
BS EN ISO 9001: 2015 (Quality management systems. Requirements), BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements), BS OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements),
General information
Color | Pink Grey |
Material | Phenolic foam |
Uniclass 2015 | |
CAWS | S90/570 Insulation to pipelines S90/570 Insulation to pipelines |
Specification data - Phenolic foam insulation Enhanced data
Standard | To BS EN 14314:2009+A1:2013. |
Thermal conductivity | 0.025 W/m·K. at 10°C. |
Finish | Aluminum foil vapour barrier. |
Reaction to fire classification | To BS EN 13501-1, class BL-s1, d0. |
Insulation thickness (minimum) | 15 mm. |
Vapour barrier | - |
Material | Factory-applied aluminium foil. |
Product Reference | Kooltherm Pipe Insulation |
Vapour barrier vapour permeability | Low. |
Protection | For external application the insulation must be covered with a waterproof finish. |
Density | 37kg/m³. |
FM approved | FM Approved per FM Approval Standard 4924 where manufactured and installed in accordance with the details of the FM Approval. Please contact Kingspan technical services for further information. |
Global warming potential | ≤5. |
Green guide rating | A+ or A. Depending on temperature application and pipe dimension. |
Ozone depletion potential | Zero. |
Closed cell content | ≥90% |
Third party product certification | Eurofins Gold. |
