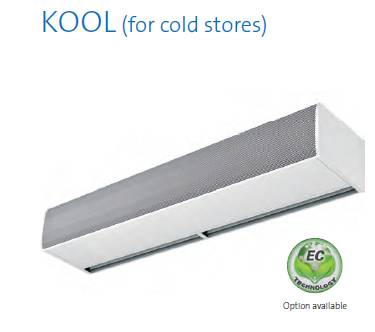

Kool Cold Store Air Curtain
Compare variants

Application

Suitable for use in cold stores.

Description

An air curtain for cold stores.


Features and benefits:

  • Powder coated steel case containing double inlet fans.
  • Ambient air is drawn in through a perforated steel mesh at the front of the unit and delivered across the doorway via adjustable lamella.
  • Provides a tight ambient air seal across the opening of refrigerated stores and freezers to prevent cold air from escaping and warm air from entering.
  • Reduces operating costs by saving energy and improves the temperature and performance of the store.
  • By removing the need for fast acting shutter doors and plastic strip curtains, forklift drivers and staff are given total visibility through the entrance.
  • A standard manual controller, 7 metres of control cable and an IR handheld remote are included. IP55 options available.

General information

Shape

Rectangle

Color

Any RAL colour available. Consult manufacturer and insert requirements.

White

RAL9016 (standard).

Finish

Powder coated

Brushed

Material

Steel

Stainless steel

Size

1000 x 340 x 260 mm

1500 x 340 x 260 mm

2000 x 340 x 260 mm

2500 x 340 x 260 mm

3000 x 340 x 260 mm

Uniclass

Pr_70_60_36_02 Air curtainsPrimary

Specification data - Air curtains Enhanced data

Heating method

Air.

Arrangement

Horizontal, vertical.

Output

0.212 kW.

Air volume

1800 m³/h.

Mounting height

3.5 m.

Casing finish

Powder coated.

Brushed stainless steel.

Accessories

Not required.

EC fan.

IP55.

Voltage

230 V.

Frequency

50Hz.

Noise

Noise level at 5 m.

55 dB.

Dimensions

1000 x 340 x 260 mm.

Weight

29 kg.

Fan

AC.

Height

4.2 m (maximum).
