KONE MonoSpace DX 300 Passenger Lift

Verified by manufacturer 3 months ago

Calm Gray design (11030)

KONE plc Variant:
Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Machine room-less passenger lift application up to 13 persons/ 1000 kg load and 1.0 m/s speed. With built-in connectivity, improved people flow, and an inspiring lift experience.

Jump to:
+44 (0)345 199 9999 Website

Application

For low and mid-rise residential and commercial buildings up to 5 floors/ 18 m, maximum load 1000 kg/ 13 persons.

Description

KONE MonoSpace requires only a single space; the shaft, so the machine room is no longer required, giving architects and developers greater design freedom and saving construction costs. Lifts can now easily serve the penthouse, without unsightly equipment on the roof. The lift uses a highly reliable and eco-efficient KONE EcoDisc hoisting machine for exceptional power and performance which requires 60% less energy than a hydraulic drive unit.


Features and benefits:

  • API ready and Wi-Fi connected.
  • Maximum load capacity: 1000 kg.
  • Maximum speed: 1.0 m/s.
  • Maximum travel: 18 m.
  • Maximum floors: 5.
  • Maximum persons: 13.
  • Maximum group size: Two.
  • Easy to upgrade.
  • Save energy and cut building’s carbon footprint with eco-efficient hoisting, lighting and standby solutions.
  • Space efficient.
  • It offers a lower noise level, typically 50–55 dBA.
  • Machine room-less, reliable, eco-efficient.
  • Includes fluorescent/ LED car lighting, car light and drive stand-by modes and signalization dimming. Other optional features are available under controls.
  • Car height: 2100—2200 mm in 100 mm increments.
  • Headroom (minimum/ maximum): 3400/ 4100 mm.
  • Landing doors: Glazing options available, two hour fire rating and firefighting (BS EN 81–72) compliant doors.
  • Built-in connectivity – Future-proof the building and make the lift even smarter with new solutions and services enabled by cloud connectivity and based on KONE APIs (Application Programming Interface).
  • Machine room-less lift that offers new solutions and services enabled by cloud connectivity and based on KONE APIs.
  • A redefined lift experience – Give tenants and visitors a different type of commercial lift with new material, lighting, and signalisation options.
  • Compliance – A machine room-less lift that helps ensure compliance with various codes and regulations, including accessibility, vandal-resistance, and operation during a fire.
  • Eco-efficiency – Save energy and cut your building’s carbon footprint with a machine room-less lift that offers eco-efficient hoisting, lighting, and standby solutions.


Pit depth:

  • 0.63 and 1.0 m/s: 1050 mm.
  • 1.6 and 1.75 m/s: 1250 mm.


Controls:

  • Advanced door opening.
  • Curtain of light (COL) – Safety features, prevents door closure when object detected in path of doors.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Manufacturer guidance

Available in a range of colours.

Finish

Anti-microbial

Anti-graffiti

Brushed

Copper

Laminated

Show more

Manufacturer guidance

Available in a range of finishes.

Material

Aluminium

Laminate

Steel

Glass

Rubber

Show more

Shape

Rectangle

Length

1400 mm

1500 mm

2100 mm

Width

1100 mm

1200 mm

Height

2100 mm

2200 mm

Warranty description

One year

Guidance for specification option:

Standard.

Three year

Guidance for specification option:

Can be extended to three years.

Uniclass

Ss_80_50_60_26 Electric passenger and goods-passenger lift systemsPrimary

CAWS

X12/350 Platform lifts

X12/110 Vertical lifting platform systems

Specification data - Electric passenger and goods-passenger lift systems

Lift type

Passenger lift, one car.

Passenger lifts, two cars.

Drive space

Machine room-less.

Door arrangement

Single entrance, left opening.

Single entrance, right opening.

Opposite front and rear entrances (through type), left opening.

Guidance for specification option:

Insert details of front/ back door requirements per floor.

Opposite front and rear entrances (through type), right opening.

Guidance for specification option:

Insert details of front/ back door requirements per floor.

Control of lift drive

Fully regenerative.

Lift shaft and machine room cabling and containment

-

Cable type

Manufacturer's standard.

Containment

Manufacturer's standard.

Rewireable installation

Required.

Concealed installation

Required.

Rated load

630 kg/ eight persons.

800 kg/ ten persons.

1000 kg/ 13 persons.

Speed

1.0 m/s.

0.63 m/s.

Guidance for specification option:

Only available with 630 kg/ eight persons rated load model.

Size:

1100 x 1400 mm.

Guidance for specification option:

630 kg/ eight persons rated load only.

1200 x 1500 mm.

Guidance for specification option:

800 kg/ ten persons rated load only.

1100 x 2100 mm.

Guidance for specification option:

1000 kg/ 13 persons rated load only.

1400 x 1600 mm.

Guidance for specification option:

1000 kg/ 13 persons rated load only.

Height

2100 mm.

Guidance for specification option:

Minimum headroom: 3400 mm.

Door height: 2000 mm.

2200 mm.

Guidance for specification option:

Minimum headroom: 3500 mm.

Door height: 2100 mm.

Manufacturer guidance

Car height.

Depth

1100 mm.

Manufacturer guidance

Pit depth.

Entrance configuration

Frame.

Front.

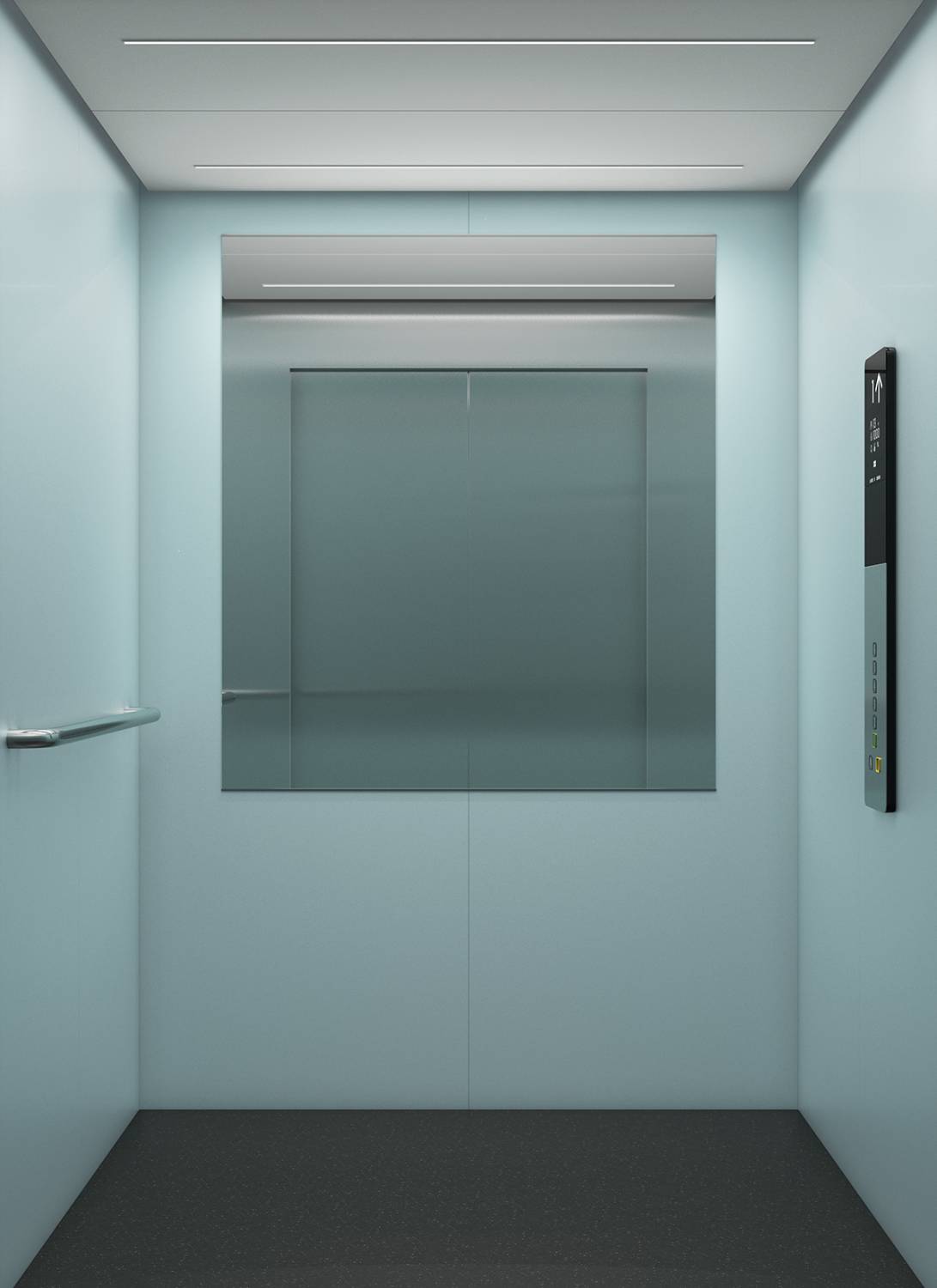

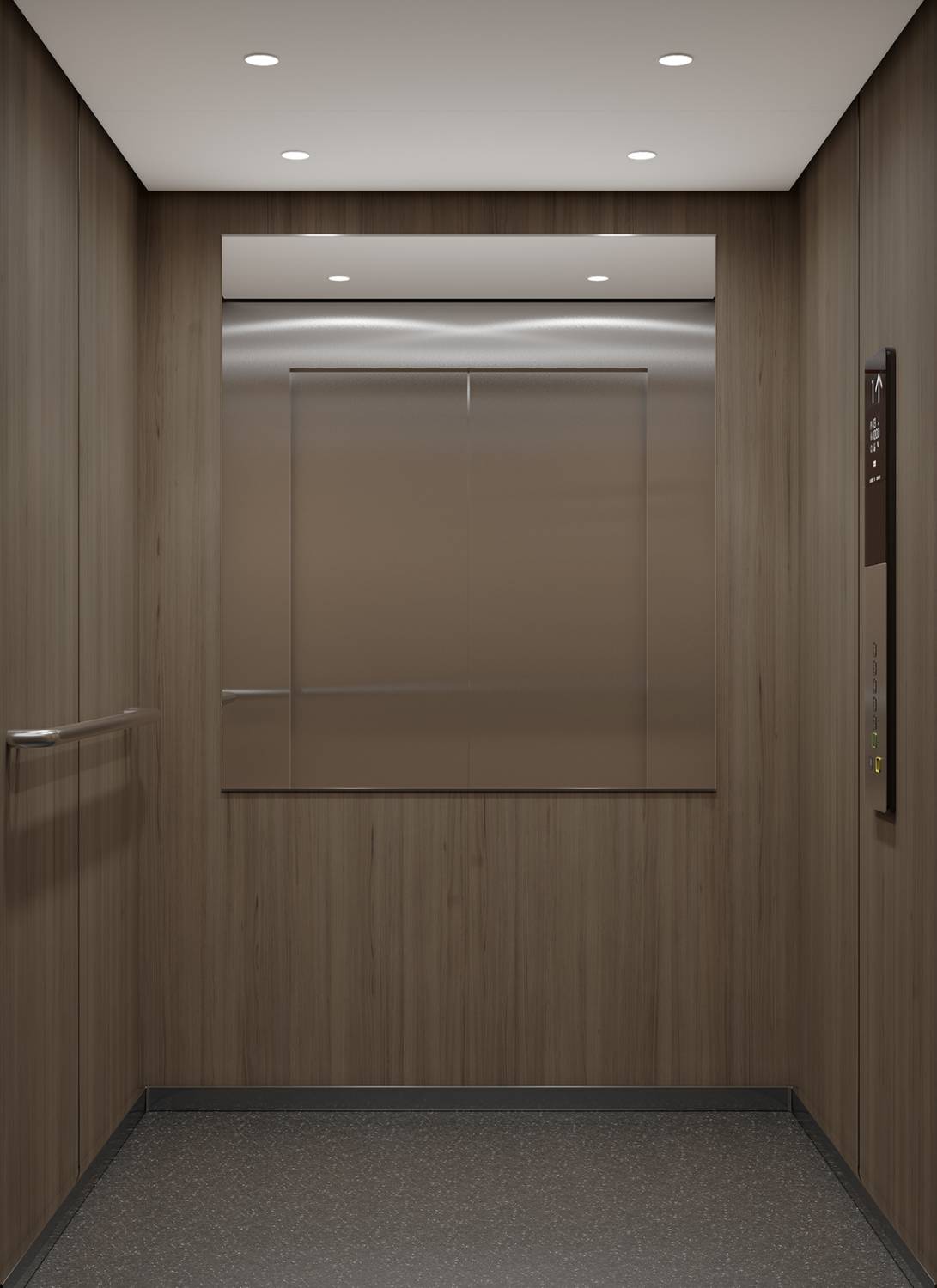

Walls

P51 Misty Gray/ TS1 Flemish Linen/ P51 Misty Gray.

Guidance for specification option:

Painted steel/ textured stainless steel/ painted steel.

Manufacturer guidance

Right/ rear/ back walls (as seen on entry).

Ceiling

CL96, Cottongrass White (P63).

Guidance for specification option:

Standard ceiling.

Lighting: LED PCB.

Manufacturer guidance

Ceiling type.

Floor

Rubber, RC32 Beige Gray.

Handrail

Handrail HR53, brushed stainless steel.

Skirting

Not applicable.

Manufacturer guidance

Note: In KONE MonoSpace® 500 DX skirting is mandatory with a laminate wall or stone flooring.

Door

Brushed stainless steel, F Asturias Satin.

Painted steel, P51 Misty Gray.

Painted steel, P63 Cottongrass White.

Textured stainless steel, K Scottish Quad.

Textured stainless steel, TS1 Flemish Linen.

Show more

Manufacturer guidance

900 mm wide as standard.

Maintenance access panel (MAP)

Integrated into door frame.

Signalization

KSC 286 Partial height, surface mounted.

Manufacturer guidance

Vertical.

Faceplate finishings: Asturias Satin brushed stainless steel (F).

Displays: Segmented LCD.

Landing display

KSI 286.

KSH 280.

KSJ 280.

KSL 270.

KSL2 86 Simplex.

Show more

Manufacturer guidance

Consult manufacturer's literature for details.

Controls

Not required.

Adjustable door opening and closing times.

Car light supply via solar cell.

Compulsory stopping at main floor (CSM).

Door open with extended door time (DOE B).

Show more

Mirror

Guidance for specification option:

Car interior mirror; consult manufacture for options and insert requirements.

Accessories

Not required.

Tenant directory TD3 (A3 size).

Guidance for specification option:

Brushed stainless steel base, tempered glass door.

Tenant directory TD4 (A4 size).

Guidance for specification option:

Brushed stainless steel base, tempered glass door.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Finland

Guidance for specification option:

Finland & Italy.

Material

Aluminium

Laminate

Steel

Glass

Rubber

Show more

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8164.66 kg CO₂ eq/kg

Self declared

Recyclability

88%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %
