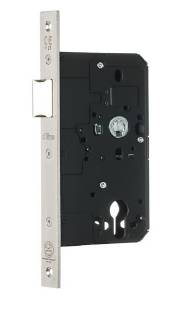

Knud Holscher collection: Sash lock - Dead lock
Verified by manufacturer 2 months ago
DEADLOCK SQ 60MM PZ 72MM SSS
DEADLOCK SQ 60MM PZ 72MM SSS
Warrington Fire
Certificate type
Stainless steel locks
Application
Suitable for private homes or commercial buildings, government offices and cultural centres.
Description
Stainless steel locks.
Features and benefits:
- Available in multiple finishes and colours.
- Part of Knud Holscher collection.
- Strike plate and strong spring.
- Manufactured in the highest quality marine grade, AISI 316 stainless steel, protecting against high levels of corrosion.
- Certified in accordance with EN 12209.
- Fire tested in accordance with EN 1634.
- 20 year warranty.
General information
Color | Silver Guidance for specification option:
Copper Black Guidance for specification option:
Gold |
Finish | Satin Guidance for specification option: Satin grain 320, crafted by hand. Polished PVD Brass |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Shape | Other |
Length | 235 mm |
Width | 24 mm |
Height | 88 mm Manufacturer guidanceDepth. |
Warranty description | 20 year Guidance for specification option: 20 year warranty (5 years for coated items). |
Uniclass | |
CAWS | P21/540 Door latches P21/28 Door latches P21/24 Door locks P21/515 Door locks |
Specification data - Door latches
Standard | To BS EN 12209. |
Latch or lock type | Dead lock. |
Backset | 60 mm. |
Material and finish | AISI 316 stainless steel (polished).AISI 316 stainless steel (PVD).AISI 316 stainless steel (powder-coated).AISI 316 stainless steel (satin).Guidance for specification option: Satin grain 320, crafted by hand. |
Latch spring strength | Strong spring. |
Dimensions | 24 x 235 x 88 mm. |
Forend | Square. |
CenterCoreSpacing | Centers: 72 mm. |
Fire performance | EN 1634. |
Colours | Silver. Charcoal. Gunmetal. Copper. Brass. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 DWG | - | 1 |
Third party certifications
Warrington Fire
EN12209
Literature
Book of curated collections
Data sheet - 14921702600
d line brand book
d line warranty declaration
