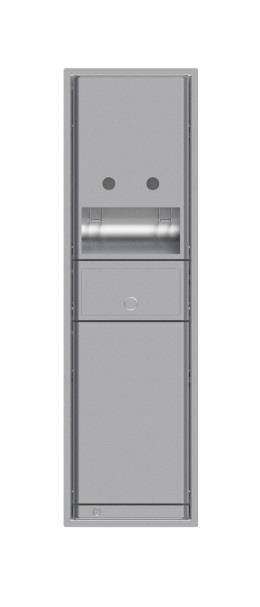

Knud Holscher collection: Sanitary panel HY
Verified by manufacturer 26 days ago
Sanitary panel HY (paper towel dispenser, waste bin).
Application
Stainless steel Washroom recessed panel - HY - Size 7
Description
Washroom recessed panel (paper towel dispenser/ waste bin), HY, module size 7, in a classic Danish design by Knud Holscher.
Features and benefits:
- Self-locking mechanism and one point opening with d line key.
- Paper towel dispenser 'H', module size 3.
- Towels: C, Z, Multi and Interfold (minimum 230 x 80 mm is recommended).
- Magazine size (w x h x d): 260 x 350 x 105 mm.
- Capacity: 350 piece two layer interfold (approximately).
- Waste bin 'Y', 12 L capacity with open aperture (280 x 425 x 120 mm), module size 4.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel |
Shape | Rectangle |
Width | 331 mm Guidance for specification option: With frame skirt. |
Height | 1127 mm Guidance for specification option: With frame skirt. |
Warranty description | 20 year Guidance for specification option: For stainless steel (non-movable) parts. |
Uniclass | |
CAWS | N13/442 Paper towel dispensers N13/474 Waste bins |
Specification data - Multi-function dispensers
Material | 1.5 mm stainless steel, AISI 1.4301 (316) grade. |
Finish and colour | Satin 320 grain stainless steel, hand crafted (14.7100.07.073).Polished stainless steel (16.7100.07.073).Telegrey RAL 7047.White RAL 9016.Black RAL 9005.Dusty Grey RAL 7037.Manufacturer guidancePVD coatings are Physical Vapour Disposition - consult manufacturer for further details. |
Projection | Wall projection: 21 mm. Guidance for specification option: Opened: 335 mm, maximum. |
Opening | 306 x 1092 x 106 mm. Guidance for specification option: Minimum wall opening (w x h x d). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Book of curated collections

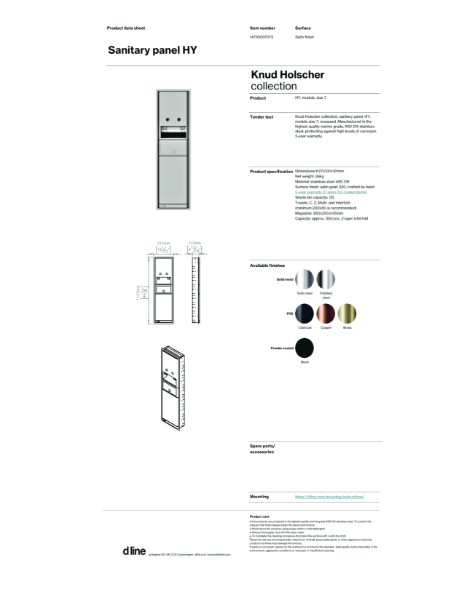

Sanitary panel HY (data sheet)
