Knauf Shaftwall: Shaftwall SW3/13
Knauf Shaftwall is our innovative system to form enclosures around service and lift shafts while working from one side.
Knauf Shaftwall is suitable for situations where access from one side is restricted, giving a high fire performance whilst being simple to construct.
Features and benefits:
- Quickly constructed from one side.
- Up to two hours fire resistance.
- Robust.
- Proven in tall buildings across the UK.
- Uses unique Knauf ‘C-T’ Stud.
To be installed in accordance with Knauf’s recommendations and British standards BS 8212-1995 and BS 8000-8:1994.
| Uniclass 2015 | |
| CAWS | K10/125 Metal stud partition system K10/30 Metal stud |
| Product Reference | Knauf Shaftwall: Shaftwall SW3/13 |
| Framing | - |
| Stud configuration | 60 mm Knauf 'C-T' stud |
| Framing centres | 300 mmFor areas to receive a ceramic tiled finish. 400 mmFor areas to receive a ceramic tiled finish. 600 mmStandard. |
| Head/ Floor channel | 62 mm Knauf ‘J’ ChannelUtilising 62 mm Knauf Deep Flange ‘U’ Channel if deflection allowance is specified. |
| Fixing | Knauf Nailable plugs at maximum 600 mm centresWhere alternative fixings are used to meet performance constraint confirmation is required from supplier. |
| Lining | - |

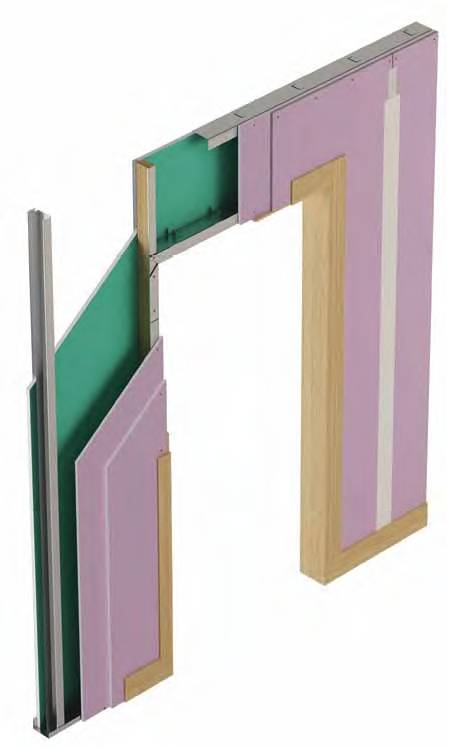

| Type | Two layers of 15 mm Knauf Fire Panel to non-shaft side, with 19 mm Knauf Core Board secured between studs |
| Horizontal board joints | Knauf Flat Fixing Plate |
| Lining fixings | Knauf Drywall ScrewsKnauf Performance Plus ScrewsTo be used with Knauf Performance Plus and Knauf Soundshield Plus Boards. |
| Perimeter Sealing | Two continuous beads of Knauf Sealant on Head/ Floor ChannelsKnauf Intumescent and Acoustic Mastic |
| Insulation | 25 mm Knauf Earthwool Acoustic Roll50 mm Knauf Earthwool Acoustic RollNot required |
| Head condition | Structural soffit |
| Deflection allowance | To be determined by a structural engineer. Consult manufacturer for information. |
| Head track fillets | Consult manufacturer and insert requirements. |
| Head insulation detail | RequiredNot required |
| Finishing | Taped and Jointed for a Seamless finish using Knauf Jointing ProductsTaped and skimmed with Knauf Finishing PlasterKnauf RMF [Ready Mixed Finishing] in accordance with General clauses |
| Standard product features | Fire resistance (BS 476: Part 22 Integrity only): 120 minutes. Acoustic rating (when tested to BS EN 10140-2:2010): 41 Rw dB. Partition thickness: 92 mm (excluding finishes). Maximum partition height (based on limiting deflection of L/240 at 200 Pa): 5000 mm. Duty rating (BS 5234: Part 2 Section 1.6.2 and 1.6.3): Severe. |
| Product Options | Framing: - Stud configuration: Reduce stud centres to 300 or 400 mm maximum for areas to receive a ceramic tiled finish when using Knauf Plasterboard. Head insulation detail: Knauf Earthwool Building Slab Insulation RS60 retained by Knauf 25 x 50 mm angle sections at head of partition, located within head track. |
