Verified by manufacturer 5 months ago
250 mm Thickness
EPD
Certificate type
A rock mineral wool slab designed for use as sheathing insulation in rainscreen facade systems.
Rocksilk® RainScreen Slab EE is suitable for use in the thermal insulation of rainscreen facade systems. Can be used in timber, SFS, masonry or reinforced concrete substrate.
Also suitable to be used in partial fill application in a timber or steel inner leaf with a masonry facade.

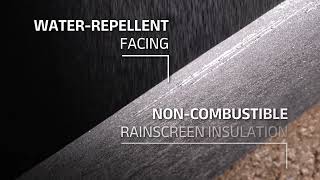

Rocksilk® RainScreen Slab EE is a rock mineral wool slab designed for use as sheathing insulation in rainscreen facade systems on buildings. It includes a water-repellent black tissue facing that provides exposure protection to the insulation during construction.
The slab is non-combustible with an A2-s1,d0 reaction to fire classification, and is manufactured using a plant-based binder, ECOSE® Technology.
It is also lightweight but rigid enough to resist the compression forces generated when fixing the insulation slab to the building’s superstructure.
Finish | Other Manufacturer guidanceWater-Repellent Black Tissue Facing |
Material | Rock mineral wool |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 60 mm 70 mm 75 mm 80 mm 90 mm |
Uniclass | |
CAWS | H20/10 Sheet cladding H31/50 Thermal insulation H92/970 Rainscreen cladding installation H92/776 Thermal insulation H20/155 Sheet cladding (attached to timber battens) H92/775 Thermal insulation P10/42 Mineral wool insulation slabs fixed to backing wall H31/270 Mineral wool thermal insulation H30/40 Thermal insulation H42/482 Thermal insulation to rear of panels P10/217 Insulation slabs fixed to backing wall H20/150 Sheet cladding (attached to metal support systems) H30/311 Mineral wool thermal insulation H30/310 Mineral wool thermal insulation H42/482 Thermal insulation to rear of panels H11/780 Thermal insulation H11/110 Curtain walling H92/120 Rainscreen cladding H31/271 Mineral wool thermal insulation |
Product range |
Classification data | |
Standard | To BS EN 13162. |
Third-party certification | Eurofins Gold. A2-s1,d0 Reaction to fire classification. CE Marking. EPD (EN 15804+A2). EUCEB. CCPI Product - Verification Number 00600063/0426. |
Thickness | 250 mm. |
Facing | Black tissue facing. |
Edges | Square. |
Thermal conductivity (maximum) | 0.034 W/m•K. |
Fire performance | Euroclass: A2-s1, d0. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Up to 35%. |
Dimensions | 1200 x 600 mm. |
Vapour resistivity | 5.00 MNs/g•m. |
Indoor air quality | Eurofins Gold achieved. |
VOC emissions | Products manufactured with ECOSE® Technology generate low levels of dust, VOCs and contain no added formaldehyde or phenol. |
Integral accessories | Rocksilk® RainScreen Slab fixings. Rocksilk® RainScreen EE Tape. Guidance for specification option: Rocksilk® RainScreen Slab Fixings are designed for installing Rocksilk® RainScreen Slab and Rocksilk® RainScreen Slab EE onto steel or timber framed constructions. The black plastic and metal washers are designed to match the colour of the facing on Rocksilk® RainScreen Slab EE. |
Thermal resistance | 7.35 m²K/W. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Rock mineral wool |
Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit 18.34 : | |
Recyclability | Can be recycled. Guidance for specification option: Mineral wool products from Knauf Insulation can be and in some cases are partly recycled at their end of-life, please contact manufacturer for more information. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % Guidance for specification option: Up to 35%. |
