Knauf Hugo - Dry Screed Gypsum Fibre Flooring Panel
Verified by manufacturer 2 days ago
18 mm thick
18 mm thick
EPD
Certificate type
Dry screed flooring panel made from gypsum fibre available in two thicknesses. Quick & easy to install; T&G edges to be bonded to form a monolithic layer floating fully supported on levelled substrate
Application
Suitable for application over underfloor heating or acoustic layer, onto a solid substrate, levelled, as a floating construction.
Description

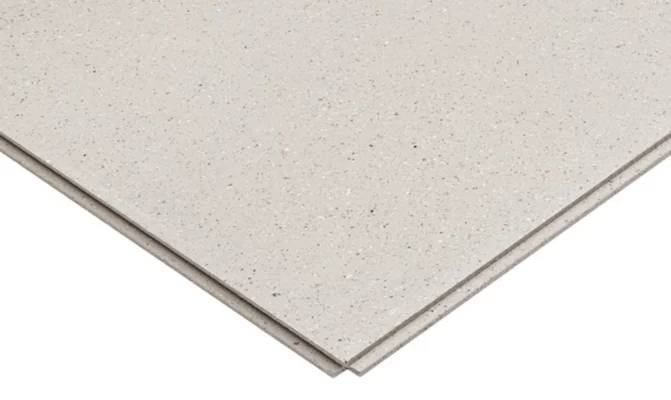

Knauf Hugo is a dry screed flooring panel made from gypsum fibre, available in two thicknesses. It is quick and easy to install, with tongue and groove (T&G) edges to be bonded to form a monolithic layer floating fully supported on levelled substrate.
Ready for a wide range of finishes including laminate flooring, vinyl and ceramics, without the need for a decoupling layer.
Features and benefits:
- Quick and easy to install.
- T&G edges bonded with joint adhesive, no screws required.
- Thermal Conductivity rating of 0.28 W/m·K, suitable for underfloor heating.
- Fast system install compared to traditional methods, ready for foot traffic in 12 hours, ready for covering in 24 hours (depending on the use of levelling compound).
- Minimal height build-up.
- No decoupling layer needed.
General information
Color | Beige Grey |
Finish | Textured |
Material | Gypsum Fibre-reinforced |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 18 mm 23 mm |
Uniclass | |
CAWS | K11/27 Acoustic separating floor system K11/295 Floating floor system K11/60 Board K11/275 Acoustic separating floor system |
SKU Code | 00550815 |
GTIN/EAN | 4003982407054 |
Specification data - Fibre-reinforced gypsum floorboards
Classification data | |
Supplied by | Knauf UK. |
Thickness | 18 mm. |
Edges | Tongued and grooved. |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | Manufacturer's standard. |
Environmental information | |
Volatile organic compounds (VOC) emissions level (maximum) | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Weight | 22.5 kg/m². |
Panel size | 1200 x 600 mm. Manufacturer guidanceLength x width. |
Reaction to fire | A2-s1, d0. |
Thermal conductivity | 0.28 W/m·K. |
Sustainability data
Material | Gypsum Fibre-reinforced |
Recyclability | Can be fully recycled, make sure it has no or minimal contamination from non-gypsum based materials as this will affect its recyclability. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 16 % Guidance for specification option: 2023 average by mass, recycled paper. |
Product certifications
Product certifications
EPD

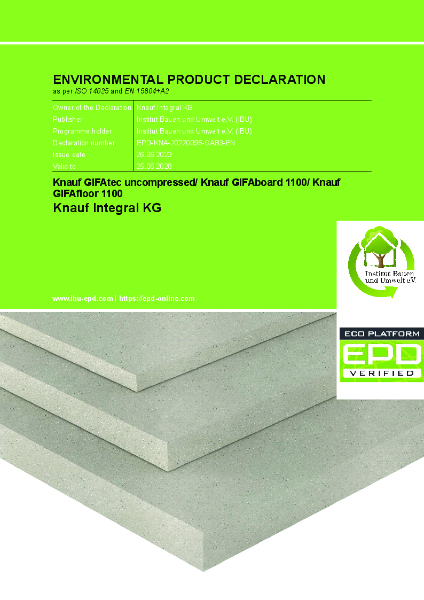

Environmental Product Declaration (EPD) - GIFAfloor Hugo
Literature

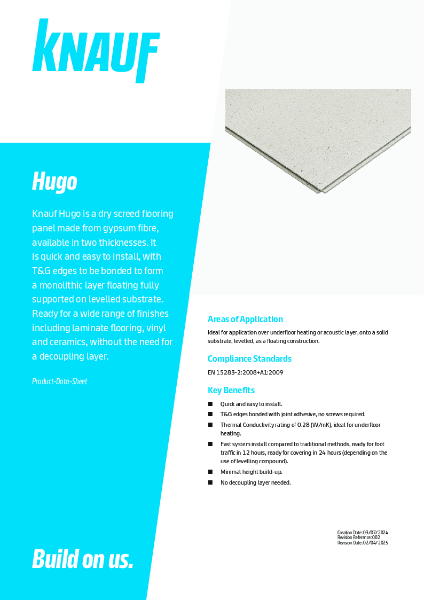

Product Data Sheet - Hugo
