Knauf Brio - Dry Screed Gypsum Fibre Flooring Panel
Verified by manufacturer 21 hours ago
18 mm thick
18 mm thick

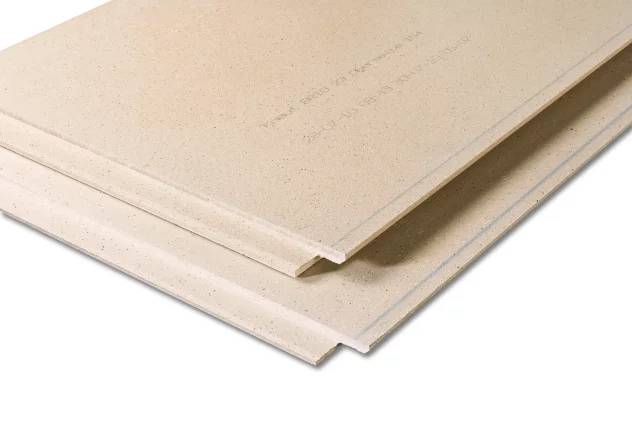

A dry screed flooring panel made from gypsum fibre, available in two thicknesses. With lapped edges to be glued and screwed, to form a monolithic layer floating fully supported on levelled substrate.
Application
Suitable for application over underfloor heating or acoustic layer, onto a solid substrate, levelled, as a floating construction.
Description
Knauf Brio is a dry screed flooring panel made from gypsum fibre, available in two thicknesses. With lapped edges to be glued and screwed, to form a monolithic layer floating fully supported on levelled substrate. Ready for a wide range of finishes including laminate flooring, vinyl and ceramics, without the need for a decoupling layer.
Features and benefits:
- Quick and easy to install.
- Thermal conductivity rating of 0.28 W/m·K, suitable for underfloor heating.
- Fast system install compared to traditional methods, ready for foot traffic in 12 hours, ready for covering in 24 hours (depending on the use of levelling compound).
- No water or cement required to be added to the build.
- Precision-engineered lapped edges to ensure boards butt to each other perfectly.
- Minimal height build-up.
- No decoupling layer needed.
General information
Color | Beige Grey |
Finish | Textured |
Material | Gypsum Fibre-reinforced |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 18 mm 23 mm |
Uniclass | |
CAWS | K11/27 Acoustic separating floor system K11/295 Floating floor system K11/60 Board K11/275 Acoustic separating floor system |
SKU Code | 00082667 |
GTIN/EAN | 4003982192349 |
Specification data - Fibre-reinforced gypsum floorboards
Classification data | |
Supplied by | Knauf UK. |
Thickness | 18 mm. |
Edges | Lapped. |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | Manufacturer's standard. |
Environmental information | |
Volatile organic compounds (VOC) emissions level (maximum) | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Weight | 23 kg/m². Guidance for specification option: 16.6 kg/piece. |
Fixings | Brio 18 screws. |
Panel size | 1200 x 600 mm. Manufacturer guidanceLength x width. |
Reaction to fire | A2-s1, d0. |
Thermal conductivity | 0.28 W/m·K. |
Sustainability data
Material | Gypsum Fibre-reinforced |
Recyclability | Can be fully recycled, make sure it has no or minimal contamination from non-gypsum based materials as this will affect its recyclability. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 16 % Guidance for specification option: 2023 average by mass, recycled paper. |
Literature

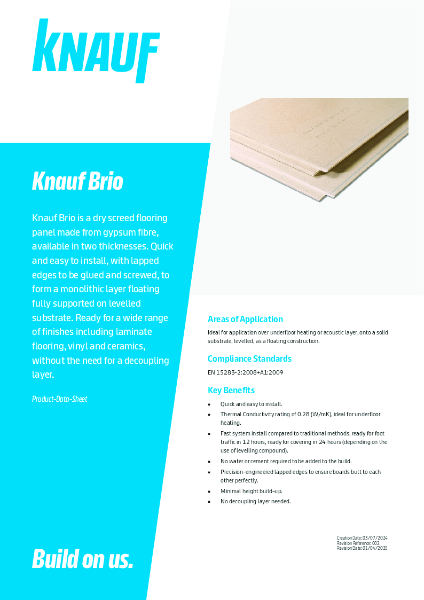

Product Data Sheet - Brio
