Knauf Corridor 400 - Acoustic Ceiling Plank System

Name: Knauf Corridor 400 - Acoustic Ceiling Plank System
Brand: Knauf UK
SKU: fXUmydP2V6gzvfEpuAZxqJ

Verified by manufacturer today

Exceptionally fast and easy installation with the self-supporting Knauf Corridor 400, with easy access to services, and ideal for corridors and narrow rooms.

Jump to:

BOS

0800 521 050 Website

Application

Suitable for use in corridors and narrow rooms.

Description

Exceptionally fast and easy installation with the self-supporting Knauf Corridor 400, with easy access to services, and ideal for corridors and narrow rooms.

Features and benefits:

Self-supporting ceiling.
Free span of up to 2.4 metres.
No suspension grid required, just a flex runner for rigidity.
Can be used in corridors over 2.4 metres by using a T35 main runner.

General information

Color	White
Finish	Painted
Material	Gypsum Guidance for specification option: Glass fibre reinforced.
Shape	Other Guidance for specification option: System. Rectangle Guidance for specification option: Planks.
Length	Bespoke Guidance for specification option: System. 1200 mm Guidance for specification option: Planks. 1800 mm Guidance for specification option: Planks. 2400 mm Guidance for specification option: Planks.
Width	400 mm Guidance for specification option: Planks. Bespoke Guidance for specification option: System.
Height	9.5 mm Guidance for specification option: Planks. Bespoke Guidance for specification option: System.

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K40/135 Board-suspended ceiling system K40/265 Infill units

Product range	Danoline

Specification data - Modular suspended ceiling systems

Classification data
System performance	Acoustic performance.
Ceiling support	Demountable suspended ceiling grids.
Support fasteners	As schedule. As drawing. Guidance for specification option: Insert drawing reference number. Guidance for specification option: Units of up to 3 k.g. can be installed directly into the panel without reinforcement. Where loads are greater than 3 k.g./m², additional hangers must be used. Units over 3 k.g., should be installed independently, so that they do not place any load on the ceiling. Maximum cut out for any fixture should be 265 X 265 mm or less. Insert additional requirements; contact manufacturer for more information.
Ceiling units	Glass fibre reinforced gypsum planks.
Samples required	Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for more information.
Framing	Flex runner.
Finishing	Pre painted white. Guidance for specification option: Water-based acrylic paint, RAL 9003, gloss 5. Recommended to use white gloves while installing.
Fire safety	A2-s1, d0.
Light reflectance	70.9-82.6%. Guidance for specification option: (depending on perforation design.) Manufacturer guidance (in accordance with DIN 5036):
Weight	11.66-12.69 k.g./m².
Surface pattern	Plain (P). Micro (M1) - (square 3 x 3 mm). Globe (G1) - (circles Ø 6 mm). Quadril (Q1) - (square 12 x 12 mm). Tangent (T1) - (obround 4 x 14 mm).

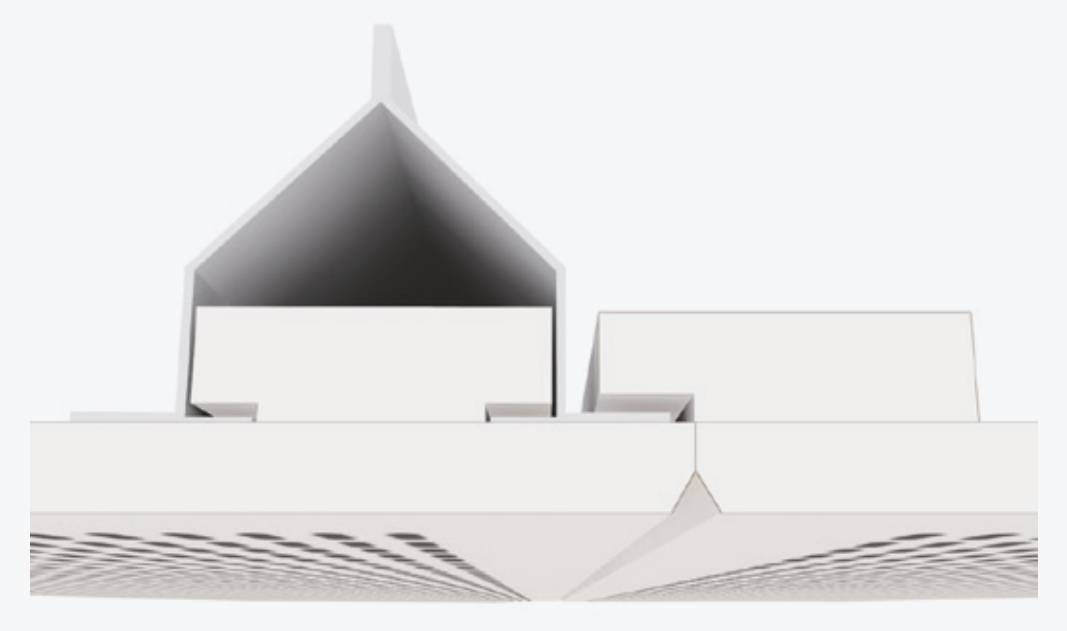

Edge profile	D.
Grid system	44 mm metal flex runner. Guidance for specification option: Shadow Gap Trim/ Perimeter Channel.
Construction	As schedule. As drawing. Guidance for specification option: Insert drawing reference number. Guidance for specification option: Perimeter channel: Use Knauf MI4020 wall angle 20 X 40 mm or Knauf MS14 shadow line trim (creating 20 mm shadow gap) fixed at 300 mm centres. When using wall angles a minimum void of 300 mm will be required, When using shadow line trim the void can be reduced to a minimum of 80 mm depth. Corners and borders: Where turning corners or creating borders Knauf T35 main runner from the Knauf suspended ceiling grid systems can be used. First, fix hangers with eye screws or similar securely fastened to the primary construction. Install the first hanger at maximum 300 mm from the wall. The other hangers should be installed at maximum 750 mm c/c. If loads are applied from light fittings etc. install additional hangers. Insert additional requirements; contact manufacturer for more information.
Perimeter trims	Wall angle. Shadow line.
Delivery condition	Adjusted in situ. Fixed dimensions.
Plank	400 x 1200 x 9.5 mm. 400 x 1800 x 9.5 mm. 400 x 2400 x 9.5 mm. Manufacturer guidance Plank size.

Sustainability data

Country of material origin	Denmark
Country of product manufacture	Denmark
Material	Gypsum Guidance for specification option: Glass fibre reinforced.
Recyclability	- Manufacturer guidance Recyclable.
