Knauf Plaza - Acoustic Ceiling Tile System
Verified by manufacturer 4 days ago
Globe
Globe
EPD
Certificate type

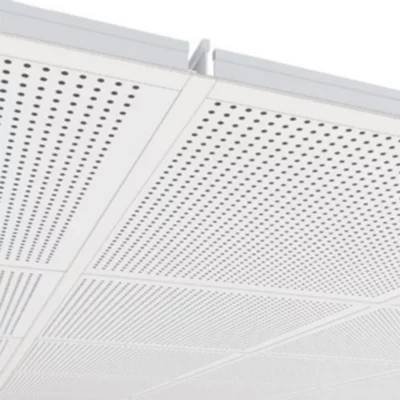

Knauf Plaza are robust and durable demountable acoustic ceiling tiles, with a simple time-saving installation.
Application
For use in S15/S24 T-Grid ceiling in offices, boardrooms, schools, and more.
Description
Knauf Plaza are robust and durable demountable acoustic ceiling tiles, with a simple time-saving installation.
Features and benefits:
- Straight edge for easy installation.
- Exposed T-grid.
- T-grid flush with ceiling tile with the A+ edge option.
- Available with perforation to edge, or with solid border.
- Fully recyclable when separated from other waste and disposed correctly.
- Compliance standards: EN 14190:2014.
General information
Color | White |
Finish | Painted |
Material | Gypsum Guidance for specification option: Glass fibre reinforced gypsum. |
Shape | Square Rectangle Other |
Length | Bespoke Guidance for specification option: System. 600 mm Guidance for specification option: Individual tiles. |
Width | Bespoke Guidance for specification option: System. 600 mm Guidance for specification option: Individual tiles. |
Height | 9.5 mm Guidance for specification option: System. 12.5 mm Guidance for specification option: Individual tiles. Bespoke Guidance for specification option: Individual tiles. |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system K40/135 Board-suspended ceiling system K40/265 Infill units |
Product range |
Specification data - Modular suspended ceiling systems
Classification data | |
System performance | Acoustic performance. Guidance for specification option: Insert requirements. |
System manufacturer | Knauf UK. |
Ceiling support | S15 demountable suspended ceiling grid, 15 mm lay-in. S24 demountable suspended ceiling grid, 24 mm lay-in. Manufacturer guidanceExposed T-grid with cross tees and hangers. |
Support fasteners | Guidance for specification option: Insert requirements to suit substrate. |
Ceiling units | Plaza glass fibre reinforced gypsum tiles, 600 x 600 x 9.5 mm. Manufacturer guidanceGlass fibre-reinforced gypsum board. |
Samples required | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for more information. |
Perimeter trims | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Applied finish | Tiles: white acrylic paint, RAL 9003, gloss 5. |
Surface pattern | Perforation type: circles, Ø6 mm, c/c 15 mm; 10.2% perforation coverage. |
Edge profile | A. |
Weight | 7.8–8.7 kg/m². |
Sound absorption class | 0.60 - Class C. Manufacturer guidanceAlpha-W (αw) and Sound Absorption Class (at 200 mm suspension depth, with no mineral wool). |
Reaction to fire | A2-s1, d0. |
Fire performance | N/A. |
Light reflectance | Manufacturer's standard. Guidance for specification option: Depending on perforation design in accordance with DIN 5036. |
Sustainability data
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Material | Gypsum Guidance for specification option: Glass fibre reinforced gypsum. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 1.91 kg CO₂ eq/m² Certified Lower emissions |
Recyclability | Fully recyclable when separated from other waste and disposed of correctly. Manufacturer guidanceRecyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Pre-consumer recycled content: 12%. Post-consumer recycled content: 28%. Manufacturer guidanceTotal recycled content. |
Product certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
EPD
Knauf Plaza Perforated EPD
Literature
Literature type
Knauf Acoustic and Design Solutions For Hospitals and Healthcare Facilities Brochure
Knauf Plaza Data Sheet
Knauf Danoline - Recycled Content Declaration
