Knauf AMF Thermatex Thermofon
Application

For use with Knauf AMF suspended ceiling system C. Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

Description

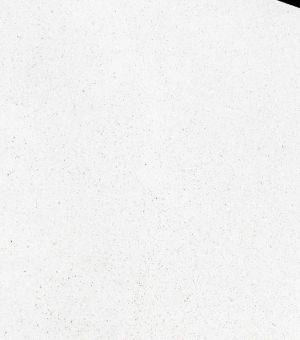

Low-density mineral ceiling tile.


Features and benefits:

  • Class B sound absorption.
  • Painted acoustic tissue facing, for use with Knauf suspended ceiling System C.
  • Tile is 600 x 600 x 15 mm, with a SK square edge and is suitable for a 15 or 24 mm exposed Ventatec grid system.

General information

Finish

Color

White

Material

Mineral wool

Shape

Square

Size

600 x 600 mm

600 x 1200 mm

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units Enhanced data

Unit type

Low density, mineral ceiling tile. Exposed Ventatec grid system.

Material

Mineral wool.

Unit size

-

Face dimensions

600 x 600 mm.

SK square edge; 15 or 24 mm exposed Ventatec grid system.

600 x 600 mm.

 VTS 15 rebated edge; 15 mm exposed Ventatec grid system.

600 x 600 mm.

VTS 24 rebated edge; 24 mm exposed Ventatec grid system.

600 x 1200 mm.

 SK square edge; 15 or 24 mm exposed Ventatec grid system.

Surface texture

Painted acoustic tissue facing.

Colour

White.

Similar to RAL 9010.

Edge profile

Square.

Product Reference

Knauf AMF Thermatex Thermofon

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0.

RelativeHumidity

95%.

(maximum).

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes.

Weight

2.6 kg/m².

Perimeter trim

Not required.

A-RWL.

24 x 24 mm angle.

I-RWL.

31 x 31 mm angle.

C-SRW shadow angle.

 20 x 20 x 20 x 20 mm.

C-SRW shadow angle.

 25 x 15 x 8 x 15 mm.

Show more

Light reflectance

Up to 88%.

Sound absorption

To BS EN ISO 354 aw 0.80 (H). Sound absorption: Class B. Noise reduction coefficient (NRC) to ASTM C 423-02a: 0.85.

Sound attenuation

As per EN ISO 10848 Dn,f,w: 28 dB.

Cleanroom classification

Class 3 as per ISO 14644-1.

Anti-microbial treatment surface finish (Hygena)

Not required.

Required.
