Knauf AMF Thermatex Silence

Knauf AMF Thermatex Silence

Knauf AMF Ceilings Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

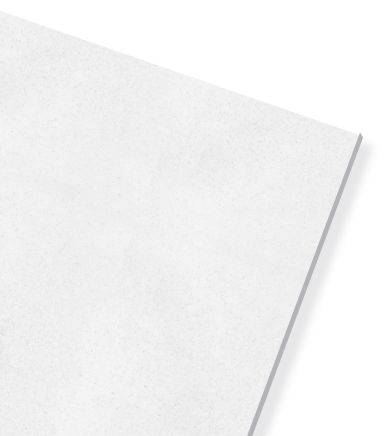

Smooth-faced ceiling tile with sound attenuation and meeting the highest requirements for sound absorption.

Jump to:
+44 (0)191 518 8600 www.knaufamf.co.uk
Application

Suitable for use with Knauf AMF suspended System C, exposed grid system, demountable ceiling. It can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

Description

This ceiling tile meets the most stringent sound insulation requirements using a special construction of two perforated mineral boards bonded together.


Features and benefits:

  • Aesthetic appearance and smooth faced.
  • Sound absorption.
  • Sound attenuation.

General information

Finish

Fleece

Color

White

Material

Mineral fibre

Shape

Square

Size

600 x 600 mm

WarrantyDescription

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units Enhanced data

Unit type

Smooth-faced ceiling tile with enhanced sound attenuation. Exposed Knauf AMF grid system.

Material

Mineral fibre.

VOC emissions

0%.

Recycled content

42.42.

Unit size

-

Face dimensions

600 x 600 mm.

SK square edge; 15 or 24 mm exposed Ventatec grid system.

600 x 1200 mm.

SK square edge; 15 or 24 mm exposed Ventatec grid system.

600 x 600 mm.

VT15 rebated edge; 15 mm exposed Ventatec grid system.

600 x 1200 mm.

VT15 rebated edge; 15 mm exposed Ventatec grid system.

600 x 600 mm.

VT24 rebated edge; 24 mm exposed Ventatec grid system.

600 x 1200 mm.

VT24 rebated edge; 24 mm exposed Ventatec grid system.

Thickness

43 mm.

Surface texture

Smooth surfaced.

Colour

White.

Similar to RAL 9010.

Edge profile

Square.

Rebated.

Product Reference

Knauf AMF Thermatex Silence

Perimeter trim

Not required.

A-RWL.

24 x 24 mm angle.

I-RWL.

31 x 31 mm angle.

C-SRW shadow angle.

20 x 20 x 20 x 20 mm.

C-SRW shadow angle.

25 x 15 x 8 x 15 mm.

Show more

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0.

Sound absorption

To BS EN ISO 354 aw 0.85. Sound absorption: Class B. Noise reduction coefficient (NRC) to ASTM C 423-02a: 0.9.

RelativeHumidity

95%.

(maximum).

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes.

Weight

10.8 kg/m².

Sound attenuation

Rating to BS EN 10848 Dn,f,w: 44 dB.

Environmental information

Contains Red List materials

No

Country of material origin

Germany

Recyclability

100%

Recycled content

42.42

Literature
Third party certifications
  • Certified
  • Regulation (EC) No 1272/2008: RAL-GZ certified
