Knauf AMF Thermatex dB Acoustic 24 mm

Knauf AMF Thermatex dB Acoustic 24 mm

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Knauf AMF Ceilings Ltd

High sound-attenuating, finely perforated tile with high sound absorption values.

Jump to:
+44 (0)191 518 8600 www.knaufamf.co.uk
Application

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

Description

A 43 mm thick, finely perforated tile for increased sound attenuation and sound absorption requirements.

Features and benefits:

  • Knauf suspended ceiling system C. Exposed system, fully demountable.
  • Knauf free span system F, main runners exposed or concealed A.
  • Knauf parallel bandraster construction I, cross tees exposed or concealed.
  • Perforations provide sound absorption.
  • The fleece offers a smooth surface finish.

Application:

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

General information
Finish

Available with a special hygena antimicrobial treatment surface finish that prevents bacterial and fungal contamination of the tile. Fleece offers a smooth surface finish

Features

Designed for use with Knauf AMF suspended ceiling system C. Perforations provide sound absorption and the fleece offers a smooth surface finish

Material

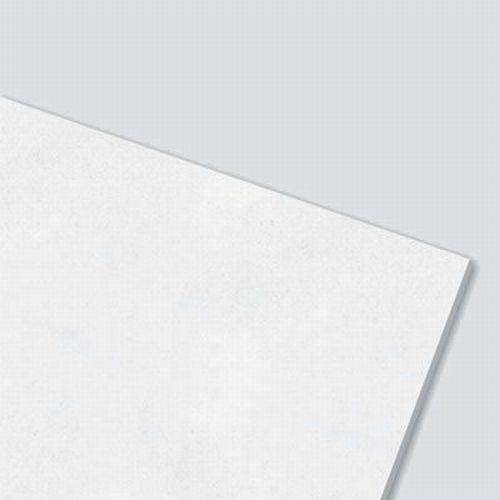

Mineral ceiling tile, manufactured from a specially perforated mineral board with an acoustic fleece facing

Shape

Square, rectangular, planks

Size

600 x 600 x 24 mm thick

WarrantyDescription

Material: 15-year warranty, System: 30-year warranty

Uniclass 2015
Pr_35_93_13_53 Mineral fibre infill unitsPrimary
CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units
Product Reference

Knauf AMF Thermatex dB Acoustic 24 mm

Type

High sound attenuation and sound reduction mineral ceiling tile. Exposed Ventatec grid system

VOC emissions

0%

Recycled content

49.17%

Unit size -
Face dimensions

600 x 600 x 30 mm [HB1] thick, SK square edge-15 or 24 mm exposed Ventatec grid system

600 x 600 x 30 mm thick, VT24 rebated edge

Thickness

30 mm

Surface texture

Smooth surface

Colour

White, similar to RAL 9010

Edge profile

Square

Rebated

Perimeter trim

Not required

A-RWL

24 x 24 mm angle.

I-RWL

31 x 31 mm angle.

C-SRW shadow angle, 20 x 20 x 20 x 20 mm

C-SRW shadow angle, 25 x 15 x 8 x 15 mm

I-SRW

25 x 15 x 10 x 15 mm shadow angle.

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0

RelativeHumidity

95%

Light reflectance

85% (maximum)

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes

Sound attenuation

To BS EN ISO 354: αw 0.65 as per EN ISO 11654. Sound absorption: Class C. Noise reduction coefficient (NRC) to ASTM C 423 0.70

Rating to BS EN 10848 Dn,f,w: 43 dB

Weight

8.4 kg/m²

Anti-microbial treatment surface finish (Hygena)

Not required

Required

Standard product features

Colour:

White, similar to RAL 9010.

Features:

Designed for use with Knauf AMF suspended ceiling system C. Perforations provide sound absorption and the fleece offers a smooth surface finish.

Finish:

Available with a special hygena antimicrobial treatment surface finish that prevents bacterial and fungal contamination of the tile. Fleece offers a smooth surface finish.

Material:

Mineral ceiling tile, manufactured from a specially perforated mineral board with an acoustic fleece facing.

Size:

600 x 600 x 24 mm thick.

Shape:

Square, rectangular, planks.

Warranty description:

Material: 15-year warranty, System: 30-year warranty.

Recycled content:

49.17%.

Recyclability:

100%.

Red listed materials:

No.

Country of origin:

Germany.

Environmental information
Recyclability

100%

Recycled content

49.17%

Literature
Third party certifications
  • Der Blaue Engel
  • Regulation (EC) No 1272/2008: RAL-GZ certified
