Knauf AMF Thermatex Alpha ONE

Application

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

Description

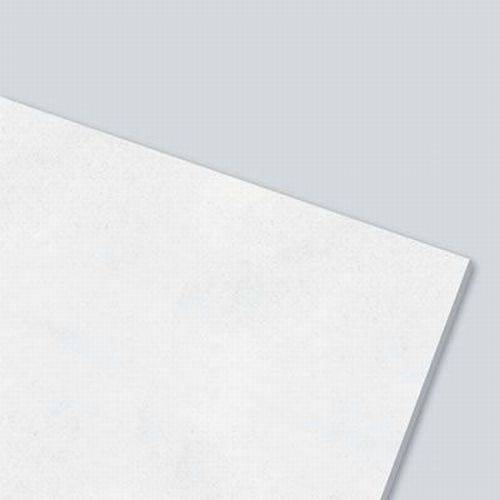

High performance mineral ceiling tile, manufactured from a specially perforated mineral board with an acoustic fleece facing.

The Alpha One has the highest possible sound absorption rating.


Features and benefits:

  • Designed for use with Knauf AMF suspended ceiling system C.
  • Perforations provide sound absorption.
  • Fleece offers a smooth surface finish.

General information

Finish

Smooth

Fleece offers a smooth surface finish.

Color

White

Material

Mineral wool

Mineral ceiling tile, manufactured from a specially perforated mineral board with an acoustic fleece facing.

Shape

Square

Rectangle

Size

600 x 600 mm

600 x 1200 mm

WarrantyDescription

Material: 15-year warranty, System: 30-year warranty.

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units Enhanced data

Unit type

High performance mineral ceiling tile. Exposed Knauf grid system.

Other sizes and edge details are available for special order.

Material

Mineral wool.

VOC emissions

0%.

Recycled content

37.35.

Unit size

-

Face dimensions

600 x 600 x 24 mm.

VT15 rebated edge-15 mm exposed Ventatec grid system.

Thickness

24 mm.

Surface texture

Smooth surface.

Colour

White.

Similar to RAL 9010.

Edge profile

Square.

Rebated.

Product Reference

Knauf AMF Thermatex Alpha ONE

Perimeter trim

Not required.

A-RWL.

24 x 24 mm angle.

I-RWL.

31 x 31 mm angle.

C-SRW shadow angle.

20 x 20 x 20 x 20 mm.

C-SRW shadow angle.

25 x 15 x 8 x 15 mm.

Show more

Fire safety:

Complies with BS EN 13501-1: Class A2-s1, d0.

Sound absorption

To BS EN ISO 354: aw 1.00. Sound absorption Class: A. Noise reduction coefficient (NRC) to ASTM C 423-02a: 1.00.

Weight

3.8 kg/m².

RelativeHumidity

95%.

Light reflectance

85%.

(maximum).

Fire protection

To BS 476-20 to -23 (maximum): 60 minutes.

Cleanroom classification

Class 4 as per ISO 14644-1.

Interior air

Indoor air comfort gold status.

Environmental information

Contains Red List materials

No

Country of material origin

Germany

Recyclability

100%

Recycled content

37.35

Literature

AMF Thermatex Ceiling Tile Range

AMF Thermatex Ceiling Tile Range

Third party certifications

  • Der Blaue Engel: Certified
  • Regulation (EC) No 1272/2008: Regulation (EC) No 1272/2008
