Knauf AMF Thermatex Alpha Hygena

Knauf AMF Thermatex Alpha Hygena

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Knauf AMF Ceilings Ltd

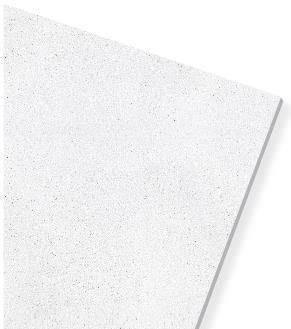

High performance mineral ceiling tile with Class A sound absorption and hygena treatment that inhibits the growth of germs, bacteria and fungi.

Jump to:
+44 (0)191 518 8600 www.knaufamf.co.uk
Application

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims. Its antibacterial properties make it especially suitable for use in healthcare, hygiene and clean room areas.

Description

High performance mineral ceiling tile with Class A sound absorption, and a tissue facing.

Features and benefits:

  • High performance.
  • Designed for use with Knauf AMF suspended ceiling system C.
  • Wet felt mineral tile with physical properties that assist installation.

Application:

Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims. Its antibacterial properties make it especially suitable for use in healthcare, hygiene and clean room areas.

General information

Finish

Available with a special hygena antimicrobial treatment surface finish that prevents bacterial and fungal contamination of the tile

Features

Designed for use with Knauf AMF suspended ceiling system C. Wet felt mineral tile with physical properties to assist installation

Material

Wet felt mineral tile

Shape

Square or rectangular

Size

600 x 600 mm, 600 x 1200 mm

WarrantyDescription

Material: 15-year warranty, System: 30-year warranty

Uniclass 2015

Pr_35_93_13_53 Mineral fibre infill unitsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units

Product Reference

Knauf AMF Thermatex Alpha Hygena

Type

High performance mineral ceiling tile with Class A sound absorption and hygena antibacterial and antimicrobial treatment. Exposed Ventatec grid system.

VOC emissions

0%

Recycled content

36.84%

Unit size

-

Face dimensions

600 x 600 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 mm, VTS 15 rebated edge

15 mm exposed Ventatec grid system.

600 x 600 mm, VTS 24 rebated edge

24 mm exposed Ventatec grid system.

600 x 1200 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

Thickness

19 mm

Surface texture

Wet felt

Colour

Standard: White, similar to RAL 9010

Edge profile

Square

Rebated

Perimeter trim

Not required

A-RWL

24 x 24 mm angle

I-RWL

31 x 31 mm angle

C-SRW shadow angle, 20 x 20 x 20 x 20 mm

C-SRW shadow angle, 25 x 15 x 8 x 15 mm

I-SRW

25 x 15 x 10 x 15 mm shadow angle

Fire safety

Complies with BS EN 13501-1: Class A2-s1, d0

Sound absorption

To BS EN ISO 354: aw 0.95. Sound absorption Class: A. Noise reduction coefficient (NRC) according to ASTM C 423-02a: 0.90

Weight

5 kg/m²

RelativeHumidity

95%

Light reflectance

85% (maximum)

Antimicrobial hygena treatment surface finish

Not required

Required

Cleanroom classification

Class 4 as per ISO 14644-1

NF S 90-351:2013

Zone 4 bacterial purity class M1 decontamination class CP(0,5) 5

Standard product features

Colour:

Standard: White, similar to RAL 9010.

Features:

Designed for use with Knauf AMF suspended ceiling system C. Wet felt mineral tile with physical properties to assist installation.

Finish:

Available with a special hygena antimicrobial treatment surface finish that prevents bacterial and fungal contamination of the tile.

Material:

Wet felt mineral tile.

Size:

600 x 600 mm, 600 x 1200 mm.

Shape:

Square or rectangular.

Warranty description:

Material: 15-year warranty, System: 30-year warranty.

Recycled content:

36.84%.

Recyclability:

100%.

Red listed materials:

No.

Country of origin:

Germany.

Environmental information

Recyclability

100%

Recycled content

36.84%

Literature
Third party certifications
  • Der Blaue Engel: Certified
  • Regulation (EC) No 1272/2008: RAL-GZ certified
