Kingspan Thermataper TT44 - Tapered Roof Insulation

Verified by manufacturer 13 days ago

≥120 mm thick (0.024 W/m·K)

Kingspan Insulation Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 37301 (Compliance Management Systems)

    Certificate type

  • EPD

    EPD

    Certificate type

High performance tapered insulation for flat roofs.

Jump to:
BOS
+44 (0)1544 388601 Website

Application

Suitable for use on new and existing roofs with timber or concrete decks.

Description

Kingspan Thermataper TT44 is a tapered insulation with a fibre-free, rigid thermoset polyisocyanurate (PIR) core. It is suitable for flat roofs waterproofed with partially-bonded torch-applied multi-layer bituminous waterproofing.


Kingspan Thermataper TT44 tapered roof insulation is manufactured in accordance with the requirements of BS / I.S. EN 13165: 2012 + A2: 2016; under a management system certified to ISO 9001: 2015 (Quality Management Systems. Requirements), ISO 14001: 2015 (Environmental Management Systems. Requirements), ISO 45001: 2018 (Occupational Health and Safety Management Systems) and ISO 50001: 2018 (Energy Management Systems. Requirements with guidance for use).


Features and benefits:

  • No structural fall required.
  • For refurbishment applications, and can typically be installed above the existing roof surface (with a waterproof membrane).


General information

Color

Yellow

Finish

Smooth

Material

Polyisocyanurate (PIR)

Shape

Square

Length

1200 mm

Width

1200 mm

Uniclass

Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary

CAWS

J41/420 Rigid urethane foam insulation

J42/420 Rigid urethane foam insulation

J42/10 Warm deck roof covering

J41/26 Thermal insulation

J42/27 Thermal insulation

Product range

Therma

Specification data - Polyisocyanurate (PIR) foam boards

Standard

To BS EN 13165.

Fire performance

To BS EN 13501-1:2018, Euroclass RtF F.

Thermal conductivity (maximum)

0.024 W/m·K.

Guidance for specification option:

>120 mm.

Water permeability

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Water vapour permeability

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Acoustic performance

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Compressive strength at 10% deformation

150 kPa.

Cross section

Tapered.

Thickness (nominal)

Guidance for specification option:

Insert requirements (≥120 mm).

Refer to manufacturer's literature or Technical Services department for details of available thicknesses.

Note: thickness will determine maximum thermal conductivity.

Face size (length x width)

1200 x 1200 mm.

Density

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Recycled content

0% (minimum) to BS EN ISO 14021.

Facing

Upper facing: Bitumen coated glass tissue finished with a thermofusible polypropylene fleece autohesively bonded to the insulation core.
Lower facing: Mineralized glass tissue autohesively bonded to the insulation core.

Edges

Square.

Fall

1:60.

Core

Rigid thermoset fibre-free polyisocyanurate (PIR) insulant.

Sustainability data

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

7.27 kg CO₂ eq/m²

Manufacturer guidance

1 m² of insulation at a thickness that gives an R-value of 2.667 m².K/W (72mm) gives a GWP of 7.27 kg CO2 equivalent in Life cycle stages A1 - A3 (Raw material supply, transport and manufacturing).

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

EPD

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015 - Pembridge

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018 - Pembridge

EnMS ISO 50001

EnMS ISO 50001

ISO 50001:2018 - Pembridge

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 - Pembridge

ISO 37301 (Compliance Management Systems)

ISO 37301 (Compliance Management Systems)

ISO 37301:2021 - Pembridge

EPD

EPD

BREG EN EPD No: 000323

Literature

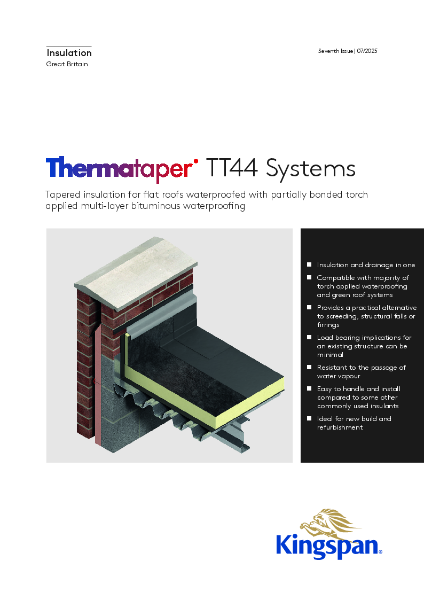

Thermataper TT44 Tapered Roof Board - 06/23

Thermataper TT44 Tapered Roof Board - 06/23
