Kingspan Safire Pipe Collar - Penetration Protection
Verified by manufacturer 6 months ago
Made from steel/stainless steel with an intumescent lining. Designed to maintain fire resistance of fire-rated walls and floors where these are breached by service penetrations.
Application
- Designed to maintain the fire resistance of fire-rated walls and floors where these are breached by service penetrations.
- May be used in gypsum, masonry and concrete walls and floors.
- Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes.
Description

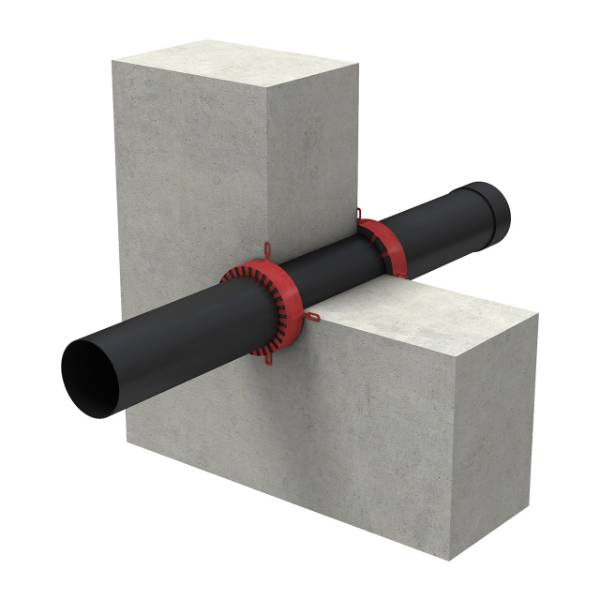

Each pipe collar consists of a red coated circular steel shell that splits in two to fit around the service penetrations by means of a simple ’slide-lock’ system.
The steel shell contains a graphite based reactive material which reacts when exposed to heat closing the openings left by the softening plastic pipe in fire.
Features and benefits:
- New patented fast expanding graphite material.
- For pipe sizes from smallest pipes available to Ø400 mm with a wide range of pipe wall thicknesses.
- Collars come in different heights for different fire classifications to maximize cost efficiency.
- Smaller pipes can be fitted within larger collars with the benefit of accommodating pipes that are at an angle or if the opening around the pipe is too large.
- Fire classifications up to 240 minutes for both integrity and insulation depending on application.
- Classified for fire sealing in all types of constructions.
General information
Color | Red |
Finish | Powder-coated |
Material | Stainless steel Steel |
Shape | Circle |
Length | 32 mm 40 mm 55 mm 63 mm 75 mm Manufacturer guidanceCollars comes in two different heights for different fire classifications to maximize cost efficiency. Please contact passivefireprotection@kingspaninsulation.co.uk |
Width | 30 mm 50 mm 60 mm 75 mm 100 mm |
Height | Manufacturer guidanceCollars comes in two different heights for different fire classifications to maximize cost efficiency. |
Warranty description | Guidance for specification option: 30 years working life guarantee. |
Uniclass | |
CAWS | P12/370 Pipe collar P12/43 Pipe collar |
Product range |
Specification data - Surface-mounted intumescent pipe collars
Sizes | Ø32 / 30 mm.Ø32 / 50 mm.Ø40 / 30 mm.Ø40 / 50 mm.Ø55 / 30 mm.Ø55 / 50 mm.Ø63 / 30 mm.Ø63 / 50 mm.Ø75 / 30 mm.Ø75 / 50 mm.Ø82 / 30 mm.Ø82 / 50 mm.Ø90 / 50 mm.Ø90 / 30 mm.Ø110 / 50 mm.Ø110 / 30 mm.Ø125 / 60 mm.Ø140 / 60 mm.Ø160 / 60 mm.Ø200 / 60 mm.Ø250 / 75 mm.Ø315 / 75 mm.Ø400 / 100 mm.Manufacturer guidanceDiameter and height. |
Fire performance | Manufacturer guidanceFire classifications up to 240 minutes for both integrity and insulation. Consult manufacturer and insert requirements. |
Sound insulation rating | RW 58 dB.Manufacturer guidanceThe sound insulation has been tested by the accredited laboratory Exova BM Trada in Great Britain according to BS EN ISO 10140-2: 2010. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Stainless steel Steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
