Kingspan OPTIM-R E
Description

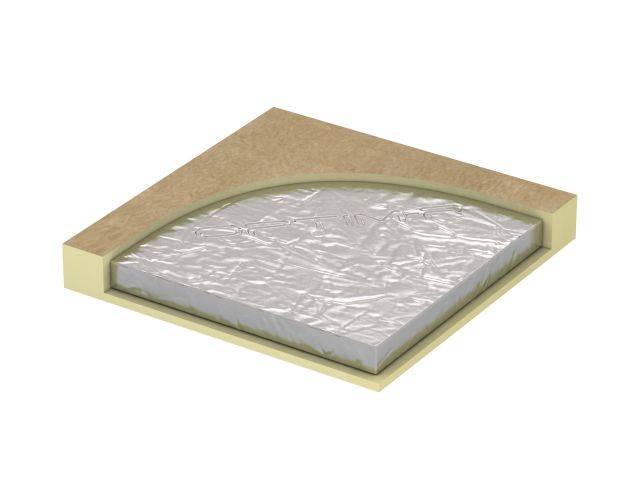

An optimum performance rigid vacuum insulation panel encapsulated in high-performance rigid thermoset insulation.

The blowing agent used has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).

Kingspan OPTIM-R E is manufactured to the highest standards under a management system certified to ISO 9001:2015 (Quality Management Systems. Requirements), ISO 14001:2015 (Environmental Management Systems. Requirements), BS OHSAS 18001:2015 (Occupational Health and Safety Management Systems. Requirements) and ISO 50001:2011 (Energy Management Systems. Requirements with Guidance for Use).

General information

Uniclass 2015

Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary

CAWS

H92/776 Thermal insulation

J31/10 Warm deck roof coating

J31/335 Warm deck roof insulation

J42/10 Warm deck roof covering

J42/420 Rigid urethane foam warm deck roof insulation

Show more
Specification data - Polyisocyanurate (PIR) foam boards

Product Reference

Kingspan OPTIM-R E

Standard product features

Insulation thickness:

80 mm.

Facing:

Faced on both sides with a coated glass tissue, autohesively bonded to the insulation board during manufacture.

Core:

Rigid vacuum insulation panel encapsulated in high performance fibre-free rigid thermoset phenolic insulant.

Thermal conductivity:

0.009 W/m·K.

Fire performance:

Details on the fire performance of Kingspan Insulation products may be obtained from the Kingspan Insulation Technical Service Department.

Third party certifications
  • BDA Agrément: BAR 17-074/01/C
