Description

The Kooltherm Pipe Insulation System is suitable for both new build and refurbishment projects in the residential, commercial, institutional and industrial sectors.

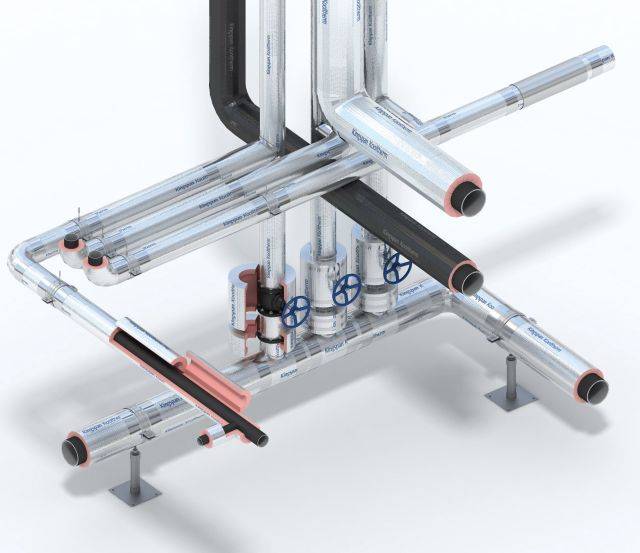

The Kooltherm Pipe Insulation System comprises Kooltherm Pipe Insulation manufactured from Kooltherm rigid phenolic insulation, and Kooltherm Insulated Pipe support Inserts fabricated from Kooltherm High-Density rigid phenolic insulation and Kooltherm FireSleeves.

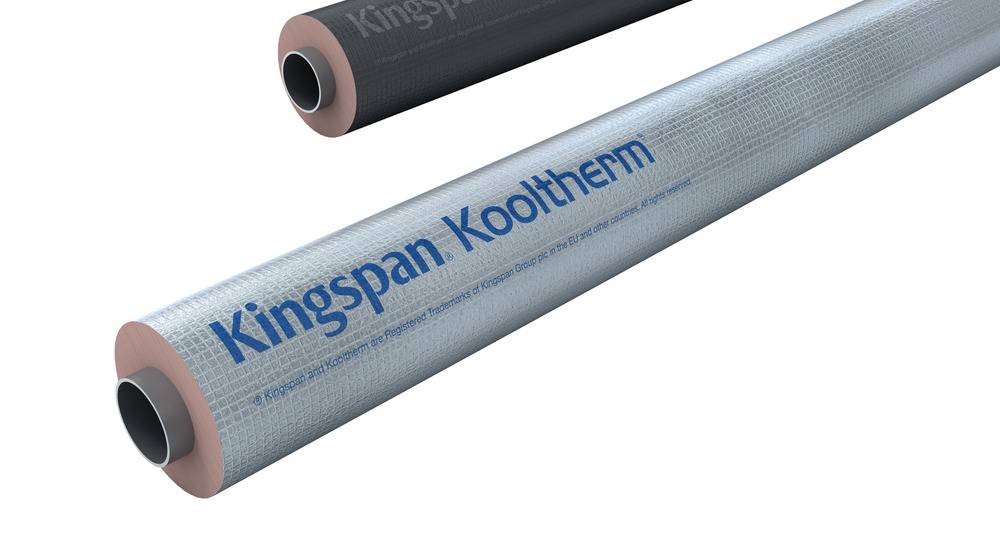

Kooltherm Pipe Insulation is used to insulate mild steel, stainless steel, copper and plastic pipework for cold, chilled, refrigeration, heating and hot water services. Kooltherm Insulated Pipe Support Inserts are designed to be used in pipe hanger brackets for load bearing applications and will support the compressive loads imposed by horizontal pipework carrying water or other liquids.

Standards:

Kingspan Kooltherm Pipe Insulation / Pipe support inserts / FireSleeves are manufactured to the highest standards under a quality control system certified to:

  • BS EN ISO 9001: 2015 (Quality management systems. Requirements).
  • BS EN ISO 14001: 2015 (Environmental Management Systems. Requirements).
  • BS OHSAS 18001: 2007 (Health and Safety Management Systems. Requirements).

Sustainability:

Kingspan Kooltherm Pipe Insulation is CFC-free and HCFC-free, with zero Ozone Depleting Potential (zero ODP) and Global Warming Potential (GWP) ≤5.

Green Guide rating:

Kingspan Kooltherm Pipe Insulation have been assigned a BRE Global Green Guide Rating of A+.

Ecoprofile:

The score obtained by Kingspan Kooltherm Pipe Insulation from the life cycle assessment of BRE Global Environmental Profiles Methodology is available online at Green Book Live, Certificate no. 523 : the lower the Ecopoints, the lower the environmental impact.

Approvals:

  • KIWA BDA Agrement certificate BAP 15-036/01/C.
  • LABC Registered detail RD certificate number EWW382.
  • FM approval to FM approval class 4924.
  • Eurofins Indoor Air Comfort Gold.
  • LEED v4.

General information
Finish

Varies

Color

Pink/Grey

Material

Phenolic Foam

Shape

Varies

Uniclass 2015 Phenolic foam insulation (Pr_80_77_76_62)
Specification data
Product Reference

Kooltherm Pipe Insulation System

Dimensions -
Kooltherm FM Pipe Insulation thickness

___ mm

Please refer to product literature, consult your local distributor or contact Kingspan Industrial Insulation Technical Services.

Kooltherm Insulated Pipe Support Inserts -
Size

100 mm

125 mm

200 mm

Thickness

___ mm

Refer to manufacturer's literature or Technical Services department for details of available thicknesses.

Standard product features

Facings:

Kooltherm Pipe Insulation and Kooltherm Insulated Pipe Support Inserts are faced with a durable and protective factory applied aluminium foil vapour barrier jacket. The inside surface is bore coated and complies with building service specifications that require bore coated products.

Thermal conductivity:

0.025 W/m·K at 10°C Mean.

Fire and smoke performance:

  • EN 13501-1: 2007 +A1: 2009, BL-s1, d0 'reaction to fire' rating under the European Fire Classification System (Euroclass).
  • ASTM E84 / UL 723: surface spread of flame index less than 25 and smoke developed index less than 50.
  • FM approved.
  • BS 476-6:1989 Index of performance not exceeding 12 and subindex (i1) not exceeding 6.
  • BS 476-7: 1997 Class 1.

Kooltherm Pipe Insulation and Kooltherm High-Density insulation achieve these results which enables them to be classified as Class 0 to the Building Regulations / Standards.

Closed cell content:

≥95%.

Nominal density range:

- Kooltherm Pipe Insulation:

37 kg/m³.

- Kooltherm Insulated Pipe Support Inserts:

  • 60 kg/m³.
  • 80 kg/m³.
  • 120 kg/m³.

Compressive strength (minimum):

  • 37 kg/m³: 100 kPa.
  • 60 kg/m³: 170 kPa.
  • 80 kg/m³: 340 kPa.
  • 120 kg/m³: 800 kPa.

Operating temperature limits:

-50 to +110°C.

Product Options

Dimensions:

- Kooltherm Pipe Insulation thickness:

One metre long sections available in different thicknesses to suit a full range of pipe diameters and to satisfy requirements of the Domestic & Non-Domestic Heating, Cooling and Ventilation Compliance Guide, BS 5422: 2009 and the TIMSA HVAC Guide. Please refer to product literature, consult your local distributor or contact Kingspan Industrial Insulation Technical Services.

- Kooltherm Insulated Pipe Support Inserts:

100, 125 and 200 mm sections available in thicknesses that are compatible with standard pipe sizes and thicknesses. Please refer to product literature, consult your local distributor or contact Kingspan Industrial Insulation Technical Services.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
