Kingspan GreenGuard GG301 - Upstand Board
Verified by manufacturer 1 month ago

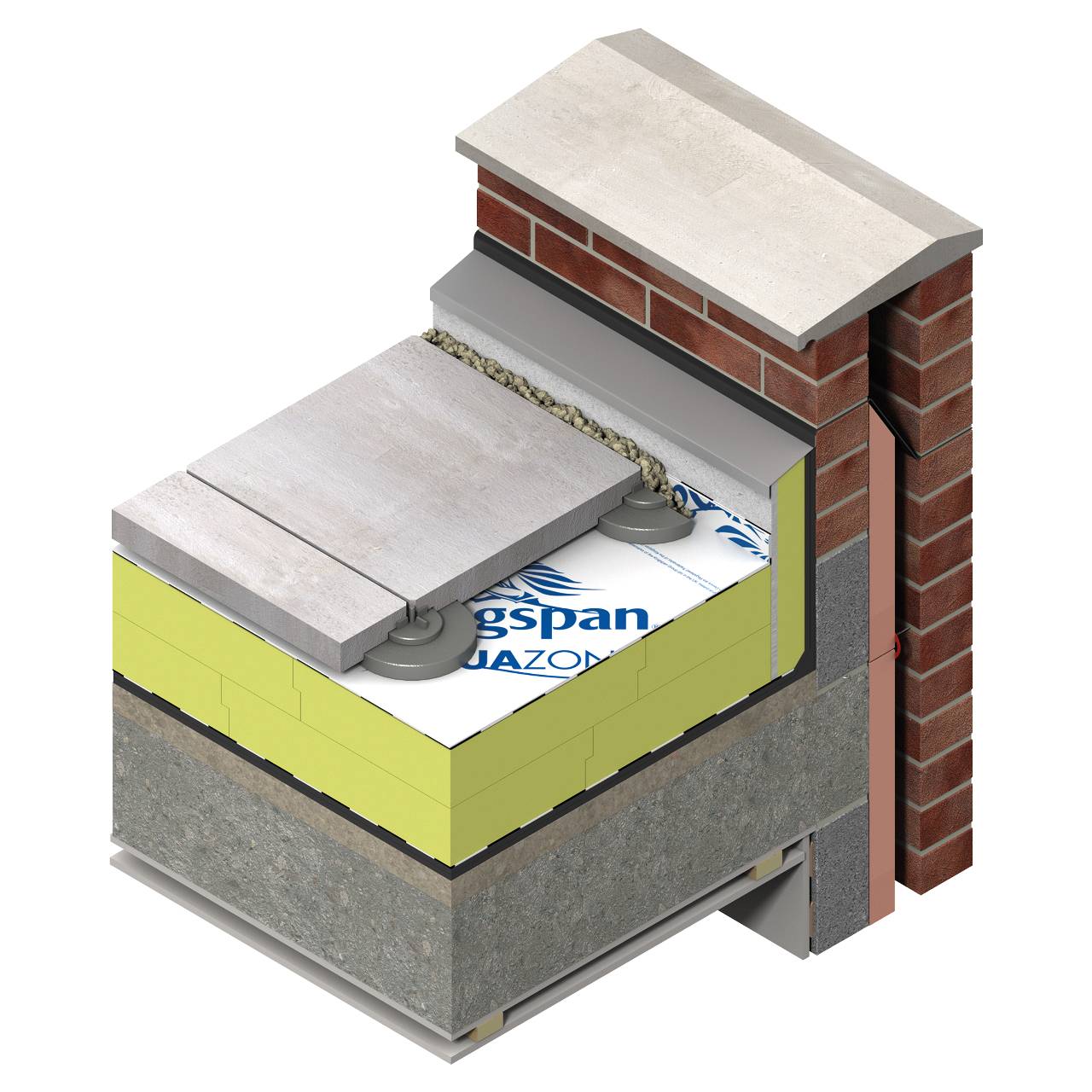

Insulation with impact-resistant building board component used as an upstand around roof perimeters on the internal façade of parapets.
Application
For use as an upstand around roof perimeters on the internal façade of parapets. Particularly suitable for inverted roof applications.
Description
Insulation with impact-resistant building board component used as an upstand around roof perimeters on the internal façade of parapets.
Features and benefits:
- 6 mm-thick impact-resistant building board attached to 50 mm-thick rigid extruded polystyrene (XPS) insulant.
- Easy to handle and install compared to some other commonly used insulants.
- Thermal resistance: 1.45 m²K/W.
- Thermal conductivity:
- Insulation board: 0.034 W/m·K.
- Building board: 0.30 W/m·K.
General information
Color | Grey Green |
Finish | Smooth |
Material | Extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 56 mm Guidance for specification option: Overall thickness. |
Uniclass | |
CAWS | J42/415 Extruded polystyrene (XPS) insulation J21/415 Extruded polystyrene (XPS) insulation J42/10 Warm deck roof covering J21/10 Warm deck roof coating J41/10 Reinforced bitumen membrane warm deck roof covering J31/332 Extruded polystyrene (XPS) insulation J41/415 Extruded polystyrene (XPS) insulation J31/10 Warm deck roof coating |
Product range |
Specification data - Extruded polystyrene (XPS) boards
Standard | To BS EN 13164: 2021 + A1: 2015. |
Third-party certification | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Fire performance | Building board component: To BS EN 13501-1: 2007 + A1: 2009, Euroclass A1. |
Compressive strength (minimum) at 10% compression | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Thermal conductivity (maximum) | Building board component: 0.30 W/m·K. |
Water permeability | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Water vapour permeability | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Thickness | 56 mm.Guidance for specification option: Overall thickness.
|
Face size (length x width) | 1200 x 600 mm. |
Recycled content | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Facing | Impact-resistant building board.Guidance for specification option: 6 mm thick. Consult manufacturer for details. |
Edges | Square. |
Thermal resistance | 1.50 m²K/W. Guidance for specification option: Rounded down to the nearest 0.05 m²K/W. |
Sustainability data
Material | Extruded polystyrene (XPS) |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Kingspan GreenGuard GG301 Upstand Board - 03/24
