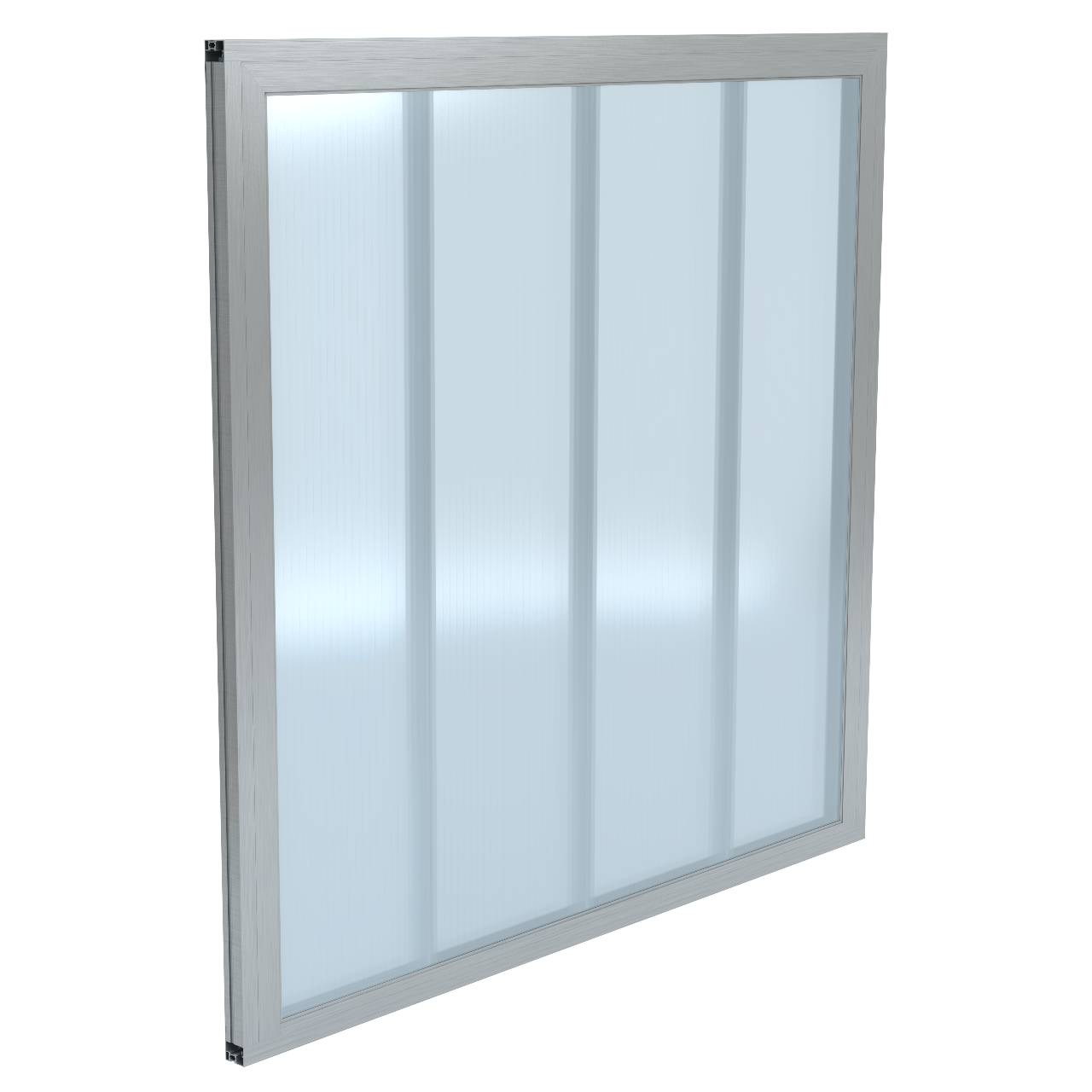

Kingspan Day-Lite Klick Wall Light
Verified by manufacturer 10 days ago
Flexible, translucent wall light system designed for easy installation.
Application
- Suitable for vertical applications.
- Compatible with Kingspan's range of insulated wall panels.
Description
Day-Lite Klick is a stylish wall light system designed to be easy to install. Its innovative ‘clicked’ jointing detail allows the panels to be installed either as a full height system or integrated with other building materials as part of an overall façade solution. With an array of colours to choose from, including those that block infrared (IR) rays, it is a flexible option for all kinds of industrial projects.
- Quick installation with innovative click joints
- Up to 60% light transmission (when new)
- U-Value of up to 0.98 W/m2k
- Available with panel lengths up to 12 m as standard (longer lengths available on request)
- Solar Heat Gain Coefficient: As low as 0.40
- Available in an selection of colour options
General information
Color | Clear Blue Green Orange Yellow |
Material | Polycarbonate |
Shape | Rectangle |
Length | 12000 mm Bespoke |
Width | 500 mm |
Height | 40 mm Guidance for specification option: Thickness. |
Warranty description | Other |
Material | Polycarbonate |
Uniclass | |
CAWS | H31/30 Profiled plastics sheet H31/160 Profiled plastics sheet |
Specification data - Polycarbonate profiled sheets
Standard | To EN 16153:2013 + A1:2015.Guidance for specification option: Light Transmitting Flat Multiwall Polycarbonate (PC) Sheets for Internal and External Use in Roofs, Wall and Ceilings - Requirements and Test Methods. |
Performance requirements | |
External fire exposure | Froof.Guidance for specification option: (No performance declared.) |
Reaction to fire | B-s1, d0. |
Light transmission | Clear 43%; Opal 28%.Guidance for specification option: When new. |
Impact resistance | Small hard body impact resistant. |
Thickness (nominal) | 40 mm. |
Length | 12 m.Guidance for specification option: Standard. Other.Guidance for specification option: Longer lengths available on request. Insert requirements. |
Cover width | 500 mm. |
Colour | Clear.Opal.Blue.Green.Orange.Yellow.Infra-red green.Infra-red blue.Purple.Red.Manufacturer guidanceGuidance - Light transmittance and durability varies with colour. |
Air leakage | Less than 3 m³/m²/hr at 50 Pa for complete envelope. |
Calculated weighted sound reduction index (Rw) | 21 dB(A). |
Solar heat gain coefficient | Clear: g = 50%; Clear, Te = 43%. Guidance for specification option: (varies with colour.) Manufacturer guidance/ Total Solar Energy Transmittance: |
U-value | 0.97 W/m²K. |
Weight | 4 kg/m². |
Sustainability data
Material | Polycarbonate |
Literature

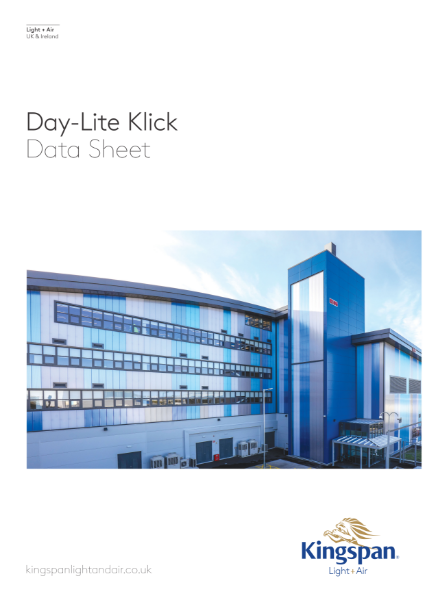

Day Lite Klick Product Data Sheet
