Kingfisher KW75Z Single Bank Weather Louvres - Weather Protection Louvre System

Name: Kingfisher KW75Z Single Bank Weather Louvres - Weather Protection Louvre System
Brand: BPD Building Product Design Ltd
SKU: 6qRf3AWchXjTSj7dhZaBzF

Verified by manufacturer 6 months ago

BPD Building Product Design Ltd

Louvre system comprising banks of Z-profile blades providing permanent ventilation combined with weather protection and visual screening.

Jump to:

BOS

+44 (0)161 905 5700 Website

Application

Any application requiring permanent large-scale ventilation combined with screening, for example air inlet and exhaust for ventilation or air conditioning systems, plant rooms, lift motor rooms, generators and pumping stations.

Description

Louvre system comprising banks of Z-profile blades providing permanent ventilation combined with weather protection and visual screening.

Louvres are supplied either mounted on concealed mullions for a continuous appearance or as individual framed panels, and can form an architectural feature of a building. The system is very flexible; banks and panels can be made to any practicable size or shape.

Features and benefits:

Free area: 58%.
Blade pitch: 75 mm.
Designed to give good protection against water penetration together with low resistance to airflow (BSRIA tested).
All components are aluminium for long life with good corrosion resistance.
Mitre cuts available for a continuous appearance.
Single and double door sets available to integrate into louvres or as a stand alone component
Optional bird/ insect mesh or blanking plates.

50mm, 100mm blade pitch or S-profile versions also available, consult manufacturer for details.

General information

Color	Silver Guidance for specification option: Powder-coating or natural anodized. Other
Finish	Powder-coated Anodized Mill Gloss Matt Satin Show more
Material	Aluminium
Shape	Rectangle Square Other
Length	Bespoke
Width	Bespoke Manufacturer guidance Minimum installation depth with M2 mullion 125mm.
Height	Bespoke

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary Pr_30_59_48_02 Aluminium louvre blades Ss_25_10_20/540 Custom-made louvres
CAWS	L10/54 Louvres L10/650 Metal louvres H11/140 Louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	Guidance for specification option: Insert requirements including drawing/ schedule reference as required. Banks can be made to any practicable shape and size, with virtually no restriction on height or width. Maximum blade length is normally 2.5 m for ease of handling. Installed blade depth: 80 mm.
Material	Extruded aluminium concealed mullions and louvre blades, grade 6063 T6 to BS 1474.
Finish	Polyester powder coating to BS 6496. Guidance for specification option: Standard. Specify colour and finish below. Anodizing AA25 to BS 3987. Guidance for specification option: Where anodizing is specified, the aluminium will be of anodizing quality. Natural mill finish. PVF2. Guidance for specification option: Insert details as required including colour below.
Colour	Guidance for specification option: Insert colour requirements (not applicable for natural anodized or natural mill finishes).
Texture	Gloss. Matt. Satin. Not applicable.
Construction	M1 mullions (155 mm overall depth), continuous appearance. M1 mullions (155 mm overall depth), panelled. M2 mullions (125 mm overall depth), continuous appearance. M2 mullions (125 mm overall depth), panelled. Manufacturer guidance All panels have a +5 mm depth to their continuous counterpart.
Air intake and exhaust performance	-
Face velocity	2.01 pressure drop at 0.5 m/s. 8.05 pressure drop at 1 m/s. 18.11 pressure drop at 1.5 m/s. 32.2 pressure drop at 2 m/s. 50.32 pressure drop at 2.5 m/s.
Core velocity (maximum)	- Manufacturer guidance Contact manufacturer for further information.
Weather performance	-
Water penetration class (minimum)	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. Performance will vary whether mesh (bird/ vermin or insect guards) are required.
Discharge loss coefficient (minimum)	To BS EN 13030, Class 3. Guidance for specification option: Up to 2.5 m/s; Cd (discharge): 0.273.
Fire performance	-
Reaction to fire	Non-combustible. A2-s1,d0.
Louvre configuration	-
Number of banks	One.
Blade orientation	Horizontal.
Blade pitch	75 mm.
Blade angle	Fixed. Guidance for specification option: 45°.
Accessories	None. Bird/ vermin guard (aluminium; 15 mm hole size). Guidance for specification option: Overlapped and secured to mullions. Insect guard (HDPE; 4 mm hole size). Blanking panel. Other. Guidance for specification option: Consult manufacturer for details of ancillaries (doors, access panels etc.) and insert requirements.

Sustainability data

Country of product manufacture	United Kingdom
Material	Aluminium

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Literature

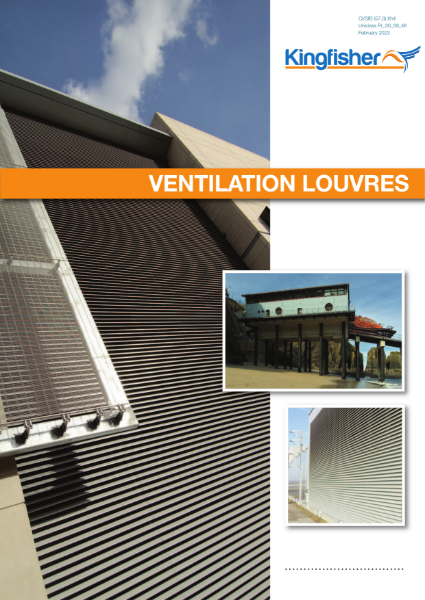

Kingfisher Ventilation Louvres Brochure

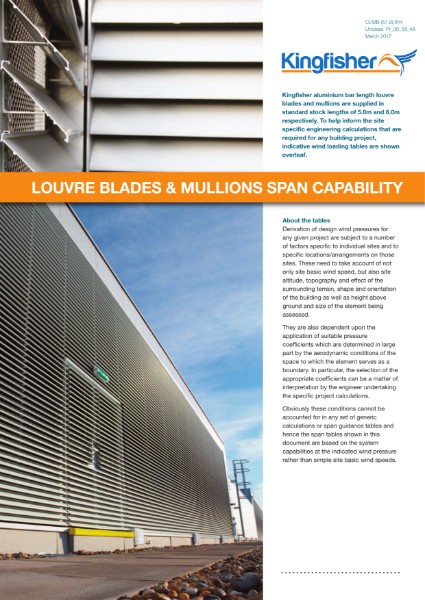

Kingfisher Louvre Blades and Mullion Span Capability

Case studies

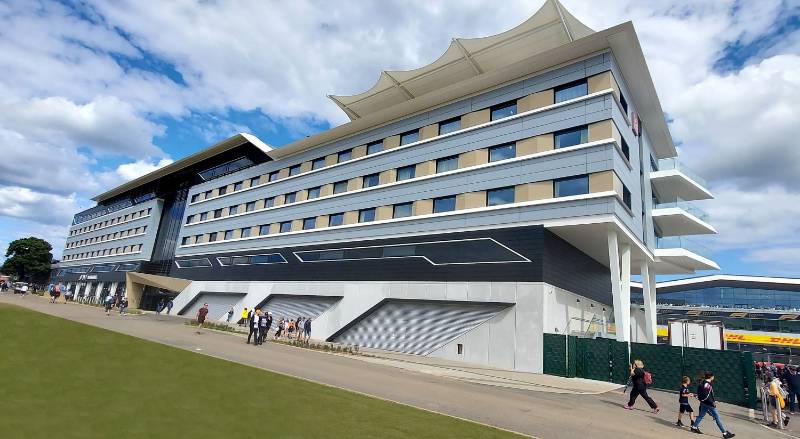

Kingfisher Louvres - Hilton Garden Inn, Silverstone

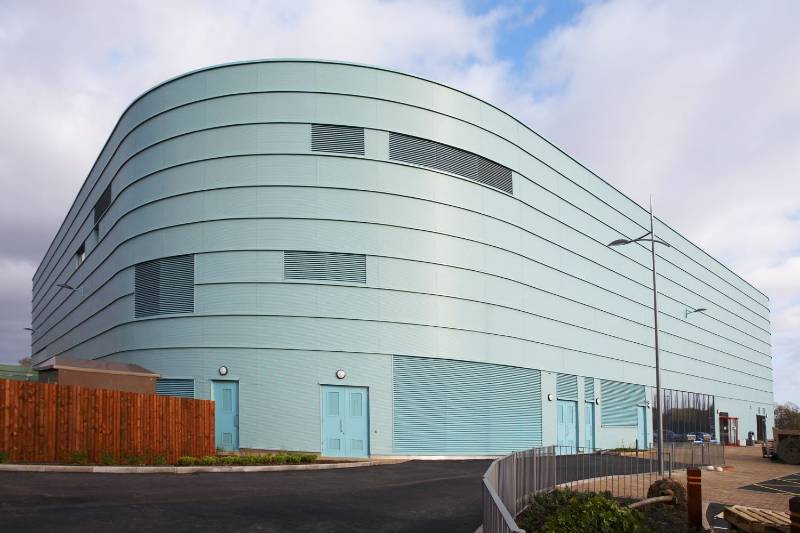

Kingfisher Louvres - Bert Williams Leisure Centre, Bilston
